HM Government

The Building Regulations 2010

Infrastructure for electronic communications

APPROVED DOCUMENT

Volume 1: Physical infrastructure and network connection for new dwellings

Requirement RA1: Gigabit-ready physical infrastructure

Requirement RA2: Connection to gigabit-capable network

2022 edition – for use in England

Source page 2

This approved document supports Part R of Schedule 1 to the Building Regulations 2010.

This approved document takes effect on 26 December 2022 for use in England. It does not apply to work in respect of which a building notice, initial notice or public body’s notice has been given to a local authority before 26 December 2022, or full plans have been deposited with a local authority before that day, provided the work is started on site within the period of 12 months beginning with that day. Full details of the transitional arrangements can be found in Circular Letter 04/2022 published on gov.uk.

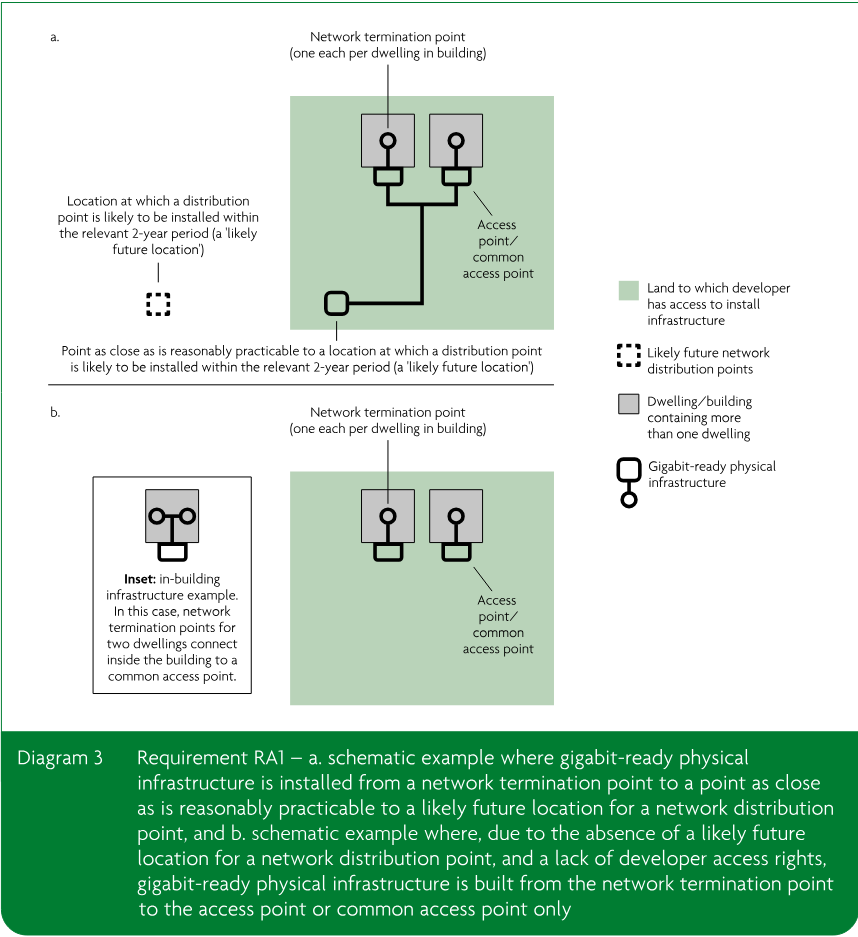

Source page 3

What is an approved document?

Approved documents are approved by the Secretary of State and give practical guidance on common building situations about how to meet the requirements of the Building Regulations 2010 for England. Different approved documents give guidance on each of the technical parts of the regulations. These are all listed in the back of the approved documents. In addition to guidance, some approved documents include provisions that must be followed exactly, as required by regulations or where methods of test or calculation are approved by the Secretary of State.

Each approved document covers the requirements of the Building Regulations 2010 relating to a different aspect of building work. Building work must also comply with all other applicable requirements of the Building Regulations 2010 and all other applicable legislation.

How is construction regulated in England?

Most building work being carried out in England must comply with the Building Regulations 2010. The Building Regulations are made under powers in the Building Act 1984.

Building Regulations protect the health and safety of people in and around buildings, they also provide for energy and water conservation and access to and use of buildings.

The Manual to the Building Regulations (references to this in the introduction are taken from the first edition) gives an overview of the building regulatory system in England. You can access the most recent version of the manual at: www.gov.uk/guidance/building-regulations-and-approved-documents-index.

How do you comply with the Building Regulations?

Building work must meet all relevant requirements of the Building Regulations. To comply with the Building Regulations, it is necessary both to follow the correct procedures and meet technical performance requirements.

The approved documents set out what, in ordinary circumstances, may be accepted as one way to comply with the Building Regulations. Note, however, that:

•Complying with the guidance in the approved documents does not guarantee that building work complies with the requirements of the regulations – the approved documents cannot cover all circumstances. Those responsible for building work must consider whether following the guidance in the approved documents is likely to meet the requirements in the particular circumstances of their case.

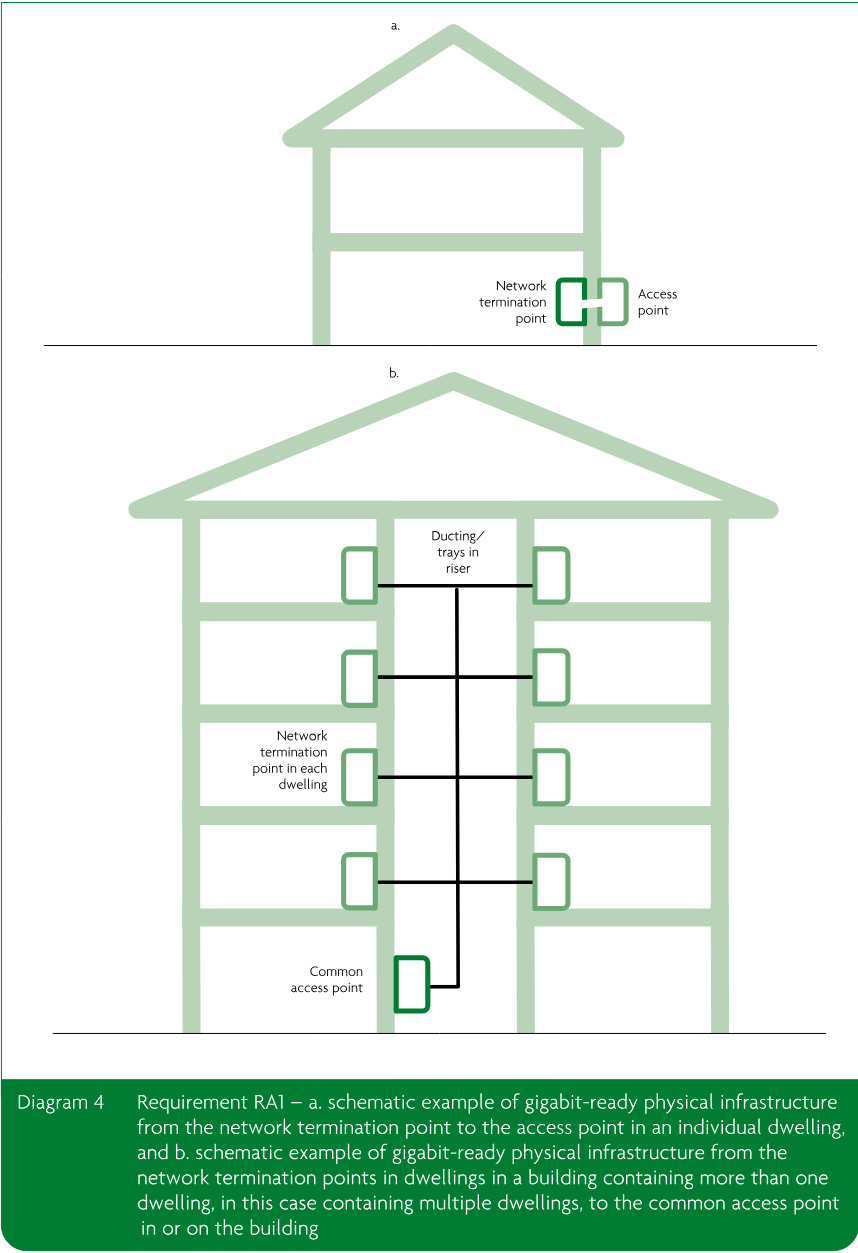

•There may be other ways to comply with the requirements than those described in an approved document. If those responsible for meeting the requirements prefer to meet a requirement in some other way than described in an approved document, they should seek to agree this with the relevant building control body at an early stage.

Source page 4

Those responsible for *building work* include agents, designers, builders, installers and the building owner. For further information, see Chapter 7 in Volume 1 and paragraphs A26, B2 and F2 in Volume 2 of the *Manual to the Building Regulations*.

The Building Regulations can be contravened by not following the correct procedures or not meeting the technical performance requirements. If the building owner or those responsible for the works contravene the Building Regulations, the local authority may prosecute them in the magistrates’ court. For further information on enforcement and sanctions in the existing system, see Chapter B in Volume 2 of the *Manual to the Building Regulations*.

What do the Building Regulations cover?

‘*Building work*’ is a legal term for work covered by the Building Regulations. Where a building is not exempt, the Building Regulations apply to all types of *building work* as defined in regulation 3 of the Building Regulations. For further information, what constitutes *building work* is covered in Chapter A, Volume 2 of the *Manual to the Building Regulations*.

The Building Regulations contain sections dealing with definitions, procedures and the expected technical performance of *building work*. For example, the Building Regulations:

a.define what types of building, plumbing and heating work are classed as *building work* in regulation 3 (for further information see paragraphs A14 to A16 in Volume 2 of the *Manual to the Building Regulations*).

b.specify types of building that are exempt from the Building Regulations (for further information see Table A1 and paragraph A11 in Volume 2 of the *Manual to the Building Regulations*).

c.set out the notification procedures to follow when undertaking *building work* (for further information see Figure 2.1 in Volume 1 of the *Manual to the Building Regulations*).

d.set out the technical requirements (see Table 7.1 in Volume 1 of the *Manual to the Building Regulations*) with which the individual aspects of building design and construction must comply in the interests of the health and safety of building users, of energy efficiency (for further information see paragraphs A12(d)–(f), A14(f)–(h), A22, A23, B2(c) and F24 in Volume 2 of the *Manual to the Building Regulations*), and of access to and use of buildings.

e.set out the standards for building materials and workmanship in carrying out *building work* (for further information see Chapter 7 in Volume 1, and paragraphs F8 to F11 in Volume 2 of the *Manual to the Building Regulations*).

When must a building control body be notified?

It is often necessary to notify a building control body of planned *building work*. To help ensure that work complies with the Building Regulations, those responsible for *building work* may need to use one of the two types of building control body listed below:

a.a local authority building control body (for further information see Chapter B in Volume 2 of the *Manual to the Building Regulations*)

b.an approved inspector (for further information see Chapter E in Volume 2 of the *Manual to the Building Regulations*).

Source page 5

If building work consists only of installing certain types of services or fittings (e.g. fuel-burning appliances or replacement windows) and the building owner employs an installer that is registered with a relevant competent person scheme designated in the regulations, a building control body does not need to be notified.

Third party schemes of certification and accreditation of installers can provide confidence that the required level of performance for a system, product, component or structure can be achieved. Building control bodies may accept certification under such schemes as evidence of compliance with a relevant standard. However, a building control body should establish before the start of the building work that a scheme is adequate for the purposes of the Building Regulations.

For further information about third party certification schemes and competent person schemes, see Chapter 5 in Volume 1 and Chapter C in Volume 2 of the Manual to the Building Regulations.

How to use this approved document

Each approved document contains:

•general guidance on the performance expected of materials and building work in order to comply with each of the requirements of the Building Regulations, and

•practical examples and solutions on how to achieve compliance for some of the more common building situations.

They may not provide appropriate guidance if the case is unusual in terms of its design, setting, use, scale or technology. Non-standard conditions may include any of the following:

•difficult ground conditions

•buildings with unusual occupancies or high levels of complexity

•very large or very tall buildings

•large timber buildings

•some buildings that incorporate modern construction methods.

Anyone using the approved documents should have sufficient knowledge and skills to understand the guidance and correctly apply it to the building work. This is important because simply following the guidance does not guarantee that your building work will comply with the legal requirements of the Building Regulations. Each approved document contains legal requirements (which you must follow) and guidance (which you may or may not choose to follow). The text in a box with a green background at the beginning of each section of an approved document is taken from the Building Regulations. This text sets out the legal requirements.

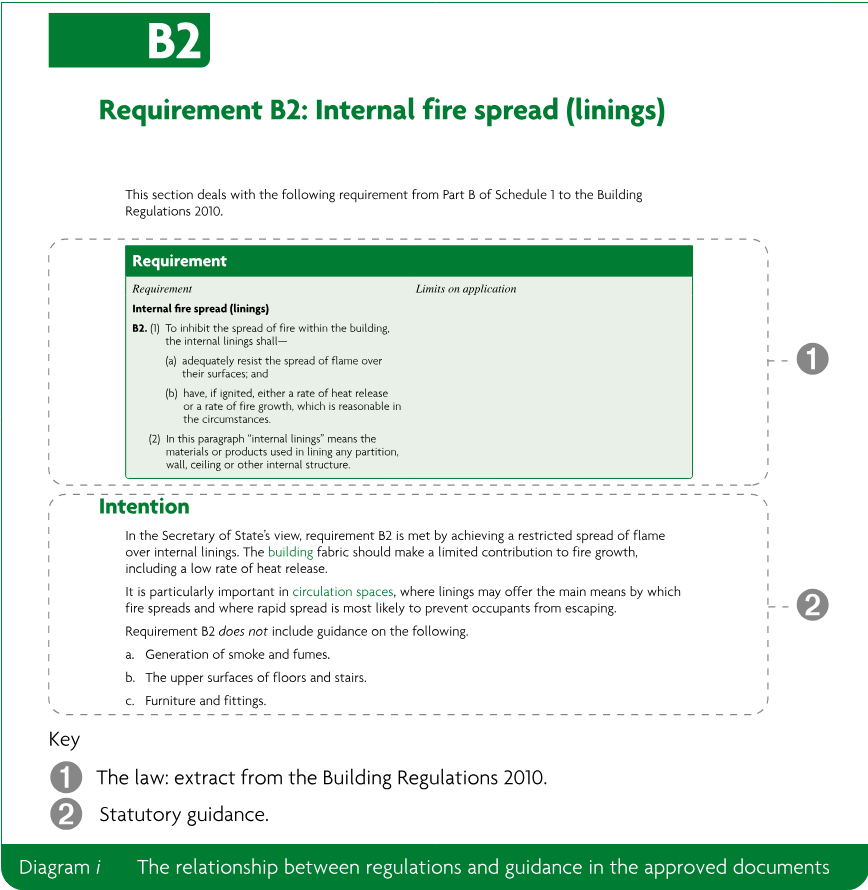

The explanation which follows the legal requirements is guidance (see Diagram i below). The guidance then explains one or more ways to demonstrate how building work can be shown to comply with the legal requirements in common circumstances. The terms in green lettering in an approved document are key terms, listed and explained in the appendix to that approved document. Guidance in the approved documents addresses most, but not all, situations that building owners will face. Situations may arise that are not covered. You or your advisers will need to carefully consider whether following the guidance will mean that the requirements of the Building Regulations will be met.

Source page 6

Requirement B2: Internal fire spread (linings)

This section deals with the following requirement from Part B of Schedule 1 to the Building Regulations 2010.

Intention

In the Secretary of State’s view, requirement B2 is met by achieving a restricted spread of flame over internal linings. The building fabric should make a limited contribution to fire growth, including a low rate of heat release.

It is particularly important in circulation spaces, where linings may offer the main means by which fire spreads and where rapid spread is most likely to prevent occupants from escaping.

Requirement B2 does not include guidance on the following.

a.Generation of smoke and fumes.

b.The upper surfaces of floors and stairs.

c.Furniture and fittings.

For further information about the use of technical guidance, see Chapter 7 in Volume 1 and Chapter F in Volume 2 of the Manual to the Building Regulations.

Where to get further help

If you are unsure whether you have the knowledge and skills to apply the guidance correctly, or if you do not understand the technical guidance or other information in this approved document or the additional detailed technical references to which it directs you, you should seek further help. Some sources of help are listed below.

a.Your building control body may be able to help in many cases.

b.If you are registered with a competent person scheme, the scheme operator should be in a position to help.

c.Suitably qualified and experienced construction professionals should also be engaged where necessary.

Source page 7

Source page 8

Source page 9

0.1This approved document, Approved Document R, Volume 1, provides guidance on how to comply with requirement RA1 and requirement RA2 of Schedule 1 to the Building Regulations, which respectively deal with the installation of gigabit-ready physical infrastructure and a connection to a gigabit-capable public electronic communications network when new dwellings are erected. It contains the following sections:

•Section 1: Requirement RA1 – gigabit-ready physical infrastructure

•Section 2: Requirement RA2 – connection to gigabit-capable network

•Section 3: Particulars of connection to public electronic communications network (‘connectivity plan’)

•Appendix A: Key terms

•Appendix B: Model form connectivity plan

•Appendix C: Documents referred to.

0.2This approved document provides guidance on when the requirement for a connection to a gigabit-capable public electronic communications network for new dwellings may be modified or excluded.

0.3This approved document provides guidance on the particulars to be provided when submitting applications for Building Regulations approval.

0.4A separate approved document, Approved Document R, Volume 2, provides guidance on the requirements for in-building physical infrastructure for high-speed electronic communications networks when new buildings are erected or when existing buildings are subject to major renovation works (paragraph R1 does not apply to building work to which paragraph RA1 applies, e.g. when new dwellings are erected).

Source page 10

This section deals with requirement RA1 from Part R of Schedule 1 to the Building Regulations 2010.

Source page 11

Intention

1.1In the Secretary of State’s view, requirement RA1 for gigabit-ready physical infrastructure will be met by installing physical infrastructure or installations, including elements under joint ownership, to host wired or fixed wireless access networks that can do all of the following.

a.Facilitate a functioning connection to a gigabit capable public electronic communications network to each new dwelling.

b.Connect the building access point or common access point (where a building contains more than one dwelling) with a network termination point at each individual dwelling.

c.Connect the network termination point with the physical point at which the network operator’s spine or core network ends (the network distribution point), or as close as is reasonably practicable where the developer has no right to install such infrastructure in land required to reach the distribution point.

Application

1.2Requirement RA1 for gigabit-ready physical infrastructure applies to the erection of a new dwelling or of a building that contains one or more dwellings.

1.3A new dwelling may be a dwelling-house or a flat in a building that contains one or more dwellings.

1.4New dwellings include the following:

a.new housing developments

b.self-build new dwellings

c.new dwellings in mixed-use developments (including live/work units, e.g. a flat (dwelling) that is a workplace for people who live there, and for people who do not live there).

Source page 12

1.5Where a new building contains more than one dwelling, a common access point for a gigabit-capable public electronic communications network is required as a part of the building’s gigabit-ready physical infrastructure. In-building physical infrastructure is required from the common access point to the network termination points in each dwelling (see Diagram 6). In single-dwelling buildings, an access point is required as part of the gigabit-ready physical infrastructure (see Diagram 5).

1.6Requirement RA1 does not apply to the following types of dwellings, buildings or building work.

a.Wholly non-residential buildings and existing buildings undergoing major renovation works.

b.New dwellings created through a material change of use.

c.Rooms for residential purposes in hostels, hotels, boarding houses, schools and other educational establishments, and hospitals and other similar establishments used for patient accommodation.

d.Buildings to be occupied by the Ministry of Defence or the armed forces of the Crown, or to be otherwise occupied for purposes connected to national security.

e.Buildings described in Schedule 2 (Exempt buildings and work) to the Building Regulations.

f.Buildings in areas isolated from a relevant public electronic communications network where both of the following apply.

i.The cost of providing a connection to a USO-standard public electronic communications network connection would exceed the cost cap (see paragraph 2.21).

ii.The prospect of a connection to a gigabit-capable public electronic communications network, a high-speed public electronic communications network or a USO-standard public electronic communications network is too remote to justify equipping the building with gigabit-ready physical infrastructure or an access point.

1.7Where a developer seeks to rely on the building being in an ‘isolated area’ as a reason to exempt new dwellings from requirement RA1, the developer must provide evidence in support of the exemption. This should include an explanation of how new dwellings are in an area that is isolated from a relevant connection, that the cost of providing a USO-standard public electronic communications network connection exceeds the cost cap and why the prospect of a connection to a relevant network in the isolated area is considered too remote to justify equipping the building with the relevant gigabit-ready physical infrastructure. The application of this exemption will vary in different circumstances.

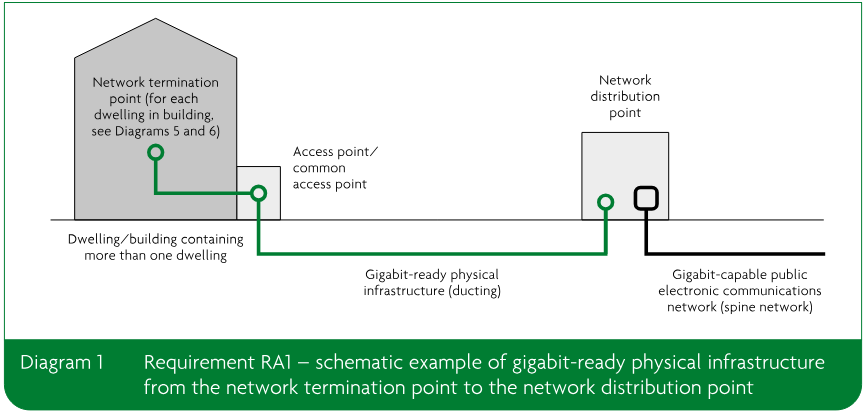

1.8Requirement RA1 requires that the developer installs gigabit-ready physical infrastructure from the network termination point to the network distribution point, where the developer has access rights over the relevant land (see Diagram 1).

Source page 13

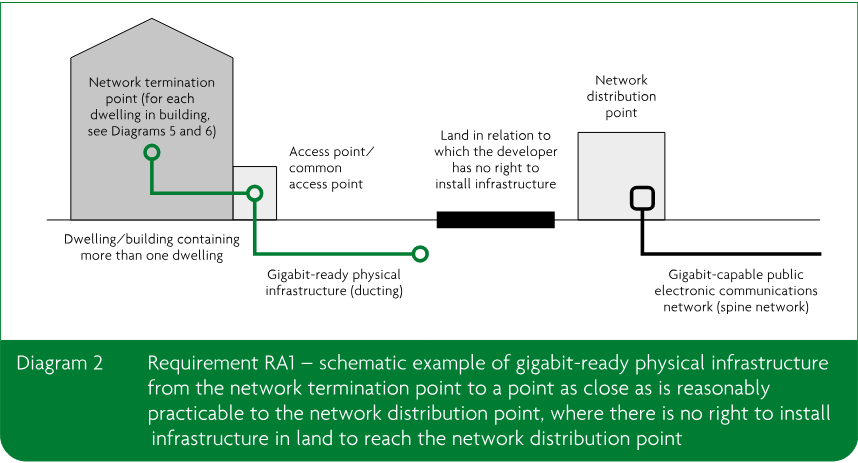

1.9Where the developer does not have the right to extend the infrastructure to the distribution point, the developer is required to extend the infrastructure to the point that is as close as is reasonably practicable to the network distribution point (see Diagram 2).

1.10For example, if there is a point that is as close to the distribution point as the developer can extend the gigabit-ready physical infrastructure to, but this would not be reasonably practicable for the developer due to the condition of the land in question, the infrastructure should be extended to an alternative point that is reasonably practicable. Developers are encouraged to work with relevant network operators to identify suitable routes for such infrastructure.

Source page 14

1.11Where the developer has no right over the land in question and where no connection to a gigabit-capable public electronic communications network is being provided because requirement RA2 is excluded or modified, and would be even if the gigabit-ready physical infrastructure was required to reach as close as is reasonably practicable to the distribution point, the developer is required to install the infrastructure to a point as close as is reasonably practicable to a location at which it reasonably expects a distribution point to be installed within the relevant 2-year period, i.e. a likely future location (see Diagram 3a).

1.12A developer will need to liaise with a network operator to ascertain the likely future location of a suitable network distribution point and provide evidence of having done so. Where a ducting system is being used, this is likely to be situated by the public highway.

1.13The developer will need to provide evidence to a building control body of the steps undertaken to establish if an appropriate network distribution point is to be installed within the relevant 2-year period and where it is to be located. Developers will also need to provide evidence of the steps undertaken should it be the case that there is no likely future location of an appropriate network distribution point within the relevant 2-year period. Developers should ascertain this information from a network operator when inviting them to provide a relevant connection.

1.14Where there is no likely future location of a network distribution point that is closer to the dwelling than an existing distribution point and the developer cannot access land to a distant network distribution point, the developer is required to install infrastructure to an access point (see Diagram 3b).

1.15Where there is no right to install gigabit-ready physical infrastructure in land beyond the building, the developer is required to install gigabit-ready physical infrastructure to an access point for an individual dwelling and to a common access point for buildings containing multiple dwellings (see Diagrams 4a and 4b).

Source page 15

Source page 16

1.16A building control body will assess the particulars submitted by the developer in relation to the connection which is to be provided and any evidence provided in support of a reliance on any exemptions when considering whether building work has been completed within the requirements. The connectivity plan at Appendix B, which sets out a template for developers, can be used to provide such evidence and information.

1.17The requirement to provide equipment such as an optical fibre cable or other technological means of facilitating a connection to a gigabit-capable public electronic communications network (requirement RA2) is separate to requirement RA1. Requirement RA1 relates to the installation of the infrastructure needed to host this equipment.

1.18To install gigabit-ready physical infrastructure to a network distribution point, developers will need to work closely with network operators. Where there is a choice of network distribution points, developers should work with network operators to choose which network distribution point would be appropriate and ascertain the corresponding location of the infrastructure.

1.19Where a ducting system is being used for installation of gigabit-ready physical infrastructure to a network distribution point, installation is likely to be to a point where the development site meets the public highway.

Source page 17

Source page 18

1.20Once the infrastructure has been planned, developers should provide the required particulars to a building control body demonstrating how the proposed approach complies with requirement RA1 and whether any exemptions are to be relied upon. Particulars provided by way of the connectivity plan would further assist the building control body if they contain evidence to demonstrate the location of gigabit-ready physical infrastructure. This could take the form of schematic diagrams, maps setting out the site layout and written evidence.

1.21One way to meet the requirement for gigabit-ready physical infrastructure which extends beyond the dwelling is to design and install a system of ducts, chambers, cabinets, towers and poles that can facilitate at least one gigabit-capable public electronic communications network connection for all the dwellings serviced by that infrastructure.

1.22In most cases, this requirement is likely to be met by infrastructure for full fibre connections (optical fibre cable from the dwelling to the network distribution point). However, as the requirement is technologically neutral, any form of wired or wireless technologies that meet the performance requirements may be used.

1.23Where full fibre connections are not available, other means of providing gigabit-capable public electronic communications network connections – such as Data Over Cable Service Interface Specification (DOCSIS 3.1) or a fixed wireless access technology – should be explored before pursuing a next fastest broadband connection.

1.24Where an access point is installed at a dwelling to facilitate connection to a gigabit-capable public electronic communications network, the ingress of moisture into the building and air leakage from the building should be prevented.

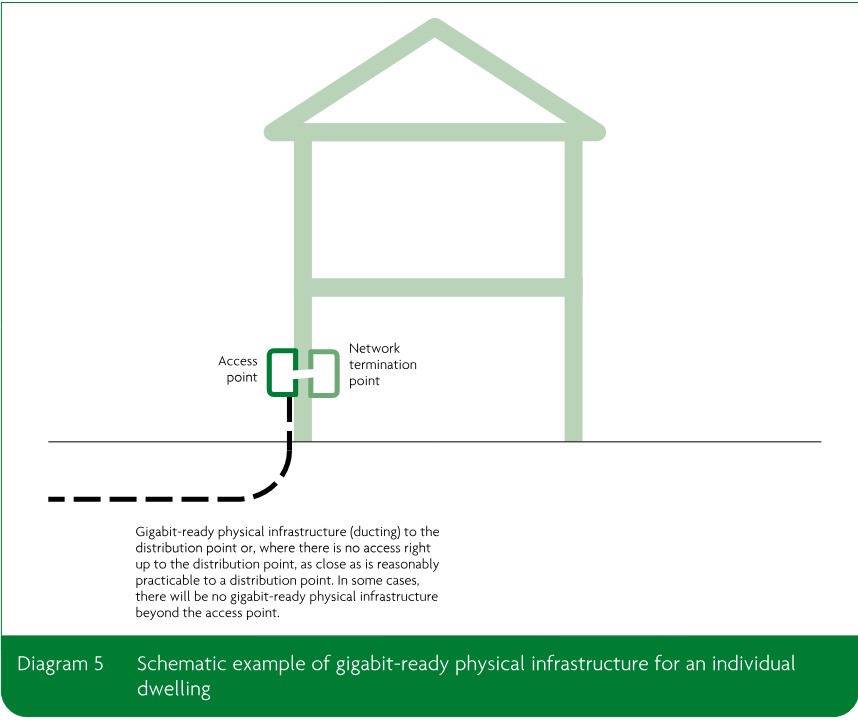

1.25Diagram 5 shows an example of gigabit-ready physical infrastructure for a single dwelling. The access point is on an outside wall and is connected by a ‘through wall’ duct to the network termination point.

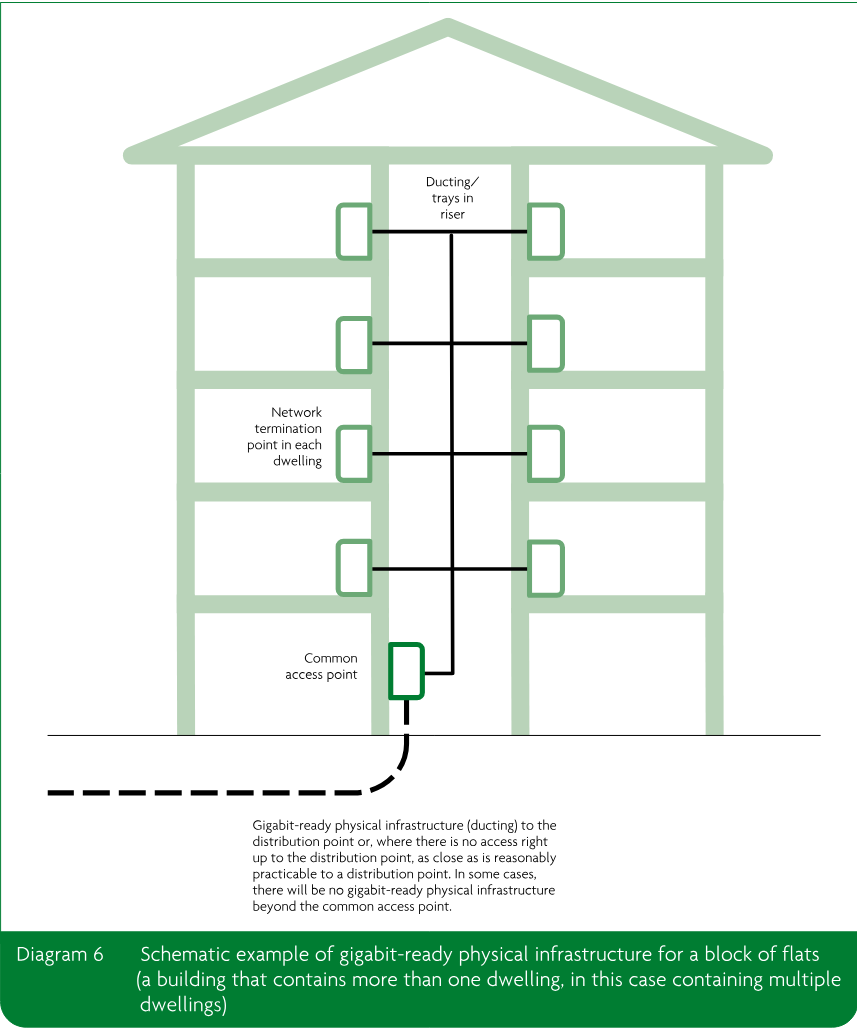

1.26For a building that contains more than one dwelling, such as a block of flats, a common access point and gigabit-ready physical infrastructure inside the building are required. Developers can also design and install a system of risers, floor boxes, cable trays and ducts from the common access point to each dwelling in the building. See Diagram 6 for an example.

Source page 19

1.27For a building that contains more than one dwelling, the gigabit-ready physical infrastructure inside the building should have sufficient capacity and dimensions to host at least one gigabit-capable public electronic communications network connection for each dwelling.

1.28The gigabit-ready physical infrastructure inside a building should comply with all relevant requirements of the Building Regulations. These include the requirements of Part B of Schedule 1 to the Building Regulations (Fire safety), including the need for fire stopping at penetrations through compartment walls, floors and ceilings, and the ban on combustible materials in the external walls of relevant buildings (regulation 7 of the Building Regulations).

1.29Where a gigabit-capable connection is not installed pursuant to requirement RA2, the gigabit-ready physical infrastructure should be installed in such a way that it is protected from any deterioration resulting from exposure to the elements, so that it is ready to host connection to a gigabit-capable public electronic communications network in the future. For example, ducting under land should be fully covered, and any infrastructure protruding from the building or ground should be encased where possible.

Source page 20

Source page 21

This section deals with requirement RA2 from Part R of Schedule 1 and regulation 44ZC of the Building Regulations 2010.

Regulation

Cases in which paragraph RA2 of Schedule 1 is modified or excluded

44ZC. (1)The requirement in paragraph RA2 of Schedule 1 has effect subject to paragraphs (2) to (4).

(2)Where a person carrying out building work of the kind described in the second column of paragraph RA1 of Schedule 1 (“the developer”)—

(a)is unable to secure the provision of a connection with a gigabit-capable public electronic communications network for a cost not exceeding the cost cap, but

(b)is able to secure the provision of a connection with a high-speed public electronic communications network for such a cost,

paragraph RA2 of Schedule 1 is to be read as requiring the provision of a connection with a high-speed public electronic communications network.

(3)Where the developer—

(a)is unable to secure the provision of a connection with a high-speed public electronic communications network for a cost not exceeding the cost cap, but

(b)is able to secure the provision of a connection with a USO-standard public electronic communications network for such a cost,

paragraph RA2 of Schedule 1 is to be read as requiring the provision of a connection with a USO-standard public electronic communications network.

(4)Where the developer is unable to secure the provision of a connection with a USO-standard public electronic communications network for a cost not exceeding the cost cap, paragraph RA2 of Schedule 1 does not apply.

Source page 22

(5)In paragraphs (2) to (4)—

“high-speed public electronic communications network” means a public electronic communications network that is a high-speed electronic communications network;

“USO-standard public electronic communications network” means a public electronic communications network that provides at least the minimum download speed for the time being specified by virtue of section 65(2B)(a) of the Communications Act 2003 in the universal service order (as defined by section 151(1) of that Act).

(6)The developer is to be treated as being able to secure the provision of a connection mentioned in any of paragraphs (2) to (4) for a cost not exceeding the cost cap unless—

(a)the developer has invited at least two suitable providers to make, before the end of the 30th day after the date of the invitation, an offer to provide a connection of the kind mentioned in the paragraph in question, and

(b)none of those providers has before that time offered to provide that connection free of charge or at a cost not exceeding the cost cap.

(7)The cost cap is £2,000 in respect of each dwelling.

(8)In calculating the cost to the developer of securing the provision of a connection—

(a)there is to be included value added tax;

(b)there is to be excluded—

(i)the cost to the developer of installing gigabit-ready physical infrastructure in accordance with paragraph RA1 of Schedule 1,

(ii)administrative costs of the developer, and

(iii)the cost to an end-user (as defined by section 151(1) of the Communications Act 2003) of the provision of a public electronic communications service.

(9)In paragraph (6)(a) “suitable provider” means the provider of a public electronic communications network whom the developer reasonably considers to be likely to be able to provide the connection referred to.

Source page 23

2.1In the Secretary of State’s view, requirement RA2 will be met by installing a relevant connection from a network distribution point to a network termination point at each new dwelling erected on a development site. Requirement RA2 requires developers to install a functioning connection to a gigabit-capable public electronic communications network but does not require developers to secure the provision of a public electronic communications service with an internet service provider.

2.2Developers should work with network operators to provide a gigabit-capable public electronic communications network connection for each new dwelling erected unless the cost exceeds the cost cap of £2000 per dwelling or the network operator declines to provide a connection.

2.3Where a gigabit-capable public electronic communications network connection is not being installed because a connection is not offered within the £2000 cost cap, developers should work with network operators to provide the next fastest broadband connection which can be installed without exceeding the £2000 cost cap.

2.4The connection to a gigabit-capable public electronic communications network can be provided in the following ways:

a.Installing a suitable specification cable from the network termination point at each new dwelling erected on a development site to the network distribution point.

b.Using wireless technologies, such as fixed wireless access, or satellite technologies, where they can support such a connection.

2.5The technologies that can currently provide a connection to a gigabit-capable public electronic communications network are set out in the most recent Ofcom Connected Nations report. The 2021 report sets out that relevant technologies include fibre to the premises (‘full fibre’, meaning optical fibre all the way to the dwelling) and other cable types, such as Data Over Cable Service Interface Specification (DOCSIS 3.1) or Fixed Wireless Access (depending on the specific deployment, available capacity at the site, and the number and location of users).

2.6At least one network termination point should be provided in a suitable position at each new dwelling erected.

Source page 24

2.7A fixed electrical supply for the network termination point and associated distribution equipment should be provided at the network termination point.

2.8The fixed electrical supply should comply with Part P in Schedule 1 to the Building Regulations (Electrical safety – dwellings). For new dwellings, the services and controls for the network termination point and fixed electrical supply, including socket outlets and switches, should be in a position which is easy to reach in accordance with the services and controls guidance supporting Part M in Schedule 1 to the Building Regulations (Access to and use of buildings).

Application

2.9Requirement RA2 for a connection to a gigabit-capable public electronic communications network applies to the erection of a new dwelling or of a building that contains one or more dwellings.

2.10A new dwelling may be a dwelling-house or a flat in a building that contains one or more dwellings.

2.11New dwellings include the following:

a.new housing developments

b.self-build new dwellings

c.new dwellings in mixed-use developments (including live/work units, e.g. a flat (dwelling) that is a workplace for people who live there, and for people who do not live there).

2.12Requirement RA2 does not apply to the following types of dwellings, buildings or building work.

a.Wholly non-residential buildings and existing buildings undergoing major renovation works.

b.New dwellings created through a material change of use.

c.Rooms for residential purposes in hostels, hotels, boarding houses, schools and other educational establishments, and hospitals and other similar establishments used for patient accommodation.

d.Buildings to be occupied by the Ministry of Defence or the armed forces of the Crown, or to be otherwise occupied for purposes connected to national security.

e.Buildings described in Schedule 2 (Exempt buildings and work) to the Building Regulations.

Modification and exemptions

2.13Requirement RA2 does not apply if the cost of providing either a gigabit-capable public electronic communications network connection or each of the next fastest broadband connections would exceed the cost cap.

2.14The cost cap for each dwelling is £2000 (see paragraphs 2.21 to 2.23).

2.15The developer should contact at least two suitable network operators, and provide evidence to demonstrate that an exemption applies where the offers from the suitable network operators exceed the cost cap. Where the developer has not invited two suitable network operators to provide such a connection, they will be treated as being able to secure the provision of that connection within the cost cap.

Source page 25

2.16Evidence that the chosen network operators are suitable should be provided. Developers will need to ensure the network operator is suitable for the purposes of requirement RA2. In determining which network operator is most likely to be able to provide the connection, the developer is encouraged to take into account factors such as the following:

a.the location of the development site

b.the ability of a network operator to provide a suitable connection in the locality of the development site

c.the variety of network operators in the locality of the development site

d.network operators’ deployment plans in the locality of the development site

e.other network operators, not necessarily in the locality of the development site, that might deploy there in the future.

2.17Where the cost of connection to a gigabit-capable public electronic communications network exceeds the cost cap, connection to the next fastest broadband connection should be provided, in the following order of priority.

a.Connection to a high-speed electronic communications network.

b.Connection to a USO-standard public electronic communications network.

2.18As the requirements are technologically neutral, alternative technologies (such as fixed wireless or satellite technologies) should be considered where performance requirements can be met, before consideration is given to installing a slower form of connection.

2.19Requirement RA1 to install gigabit-ready physical infrastructure at each individual dwelling still applies when new dwellings are erected without a connection or regardless of the speed of the connection installed at the point of construction.

2.20Requirement RA2 does not prescribe the method for developers to obtain offers and other relevant information from network operators, although there is a prescribed time limit of 30 working days for receipt of such offers. Developers may choose to request an offer from suitable network operators to provide a connection to all of the following:

a.a gigabit-capable public electronic communications network

b.a high-speed electronic communications network

c.a USO-standard public electronic communications network.

If the cost of connection to a gigabit-capable public electronic communications network exceeds the cost cap, developers can consider the network operators’ quotes for the slower connections.

Cost cap

2.21The cost cap for the developer is £2000 for each new dwelling erected, after any financial contribution from the network operator has been deducted.

Source page 26

2.22The following should be included in costs assessed against the cost cap.

a.Value added tax (VAT).

b.The cost of providing a connection to a gigabit-capable public electronic communications network or other relevant network, from the point of connection at the network termination point at each new dwelling erected on a development to the network distribution point.

2.23The following are excluded from costs assessed against the cost cap.

a.The cost to the developer of installing gigabit-ready physical infrastructure in relation to each dwelling erected, including infrastructure in common areas in a building containing more than one dwelling, in accordance with requirement RA1.

b.Administrative costs of the developer, including costs of submitting the connectivity plan and building control body fees as applicable.

c.The cost to an end-user (as defined in section 151(1) of the Communications Act 2003) of the provision of a public electronic communications service.

Source page 27

Submitting the connectivity plan

3.1Before the relevant building work starts, when any relevant notice is provided or application is made to a building control body, the developer must provide certain additional information. This includes particulars of any public electronic communications network to which a connection will be provided and evidence in support of relevant exemptions relied upon.

3.2A model form connectivity plan is set out in Appendix B which the developer may use or adapt when providing such information.

Scope of the connectivity plan

3.3Part A of the connectivity plan provides sections for the developer to demonstrate the location of the gigabit-ready physical infrastructure. This includes evidence demonstrating why such infrastructure is to be installed up to the point in question, which would be one of the following (as set out in paragraphs 1.8 to 1.15).

a.From a network termination point to a network distribution point.

b.Where the developer has no right over the land in question to reach a network distribution point, from a network termination point to a point as close as is reasonably practicable to a network distribution point.

c.Where the developer has no right over the land in question to reach a network distribution point and requirement RA2 is excluded or modified, and would be so excluded or modified even if the gigabit-ready physical infrastructure were required to reach as close as is reasonably practicable to a network distribution point, to either of the following:

i.a point as close as is reasonably practicable to a likely future location of a network distribution point location in the relevant 2-year period

ii.where there is no likely future location that is closer than the closest network distribution point already installed, from a network termination point to the corresponding access point or common access point.

d.Where the developer does not have access to land beyond the new dwelling, to an access point or common access point.

Source page 28

3.4If an exemption is to be relied on for requirement RA1 or requirement RA2, Part B of the connectivity plan should also be completed and supporting evidence should be included with the connectivity plan when it is submitted. The following information should be provided.

a.Evidence from at least two suitable network operators that demonstrates one of the following.

i.The cost of providing a connection to a gigabit-capable public electronic communications network exceeds the cost cap, with accompanying quotes provided by the suitable network operators.

ii.The suitable network operators refused to provide a gigabit-capable public electronic communications network connection, and evidence demonstrating the reason for this refusal.

iii.The suitable network operators have not responded within the 30 working day period.

b.Also provide evidence in support of any exemption relied upon for requirement RA1 to provide gigabit-ready physical infrastructure.

3.5Developers can consider which forms of evidence may most effectively support connectivity plan statements, which will vary between development sites. Written evidence, quotes and correspondence will be useful for some purposes. Maps or diagrams may also be useful for indicating infrastructure routes and locations. Estimated timescales as to when infrastructure and connections are to be installed, which will also vary between development sites, are useful supporting evidence.

3.6Requirements RA1 and RA2 do not oblige network operators to reply to developers where they are contacted for offers to provide a relevant connection. Developers may state in the connectivity plan, with supporting evidence, that at least two suitable network operators have declined to respond to the developer within the 30 working day period. Network operators may also respond to decline to provide connections which the developer can provide as evidence in reliance on the exemption.

3.7Where an exemption is being relied on, Part B of the connectivity plan should be completed to provide one of the following.

a.Confirmation that the next fastest broadband connection that falls within the cost cap is being installed and include the relevant technical information.

b.If no connection to any public electronic communications network is being provided, offers received from at least two suitable network operators confirming that they have refused to provide any connection to a public electronic communications network, or if no suitable network operator has responded within the 30 working day period, evidence to support this (see paragraph 2.20).

c.If a next fastest broadband connection or no connection is being installed, confirmation that gigabit-ready physical infrastructure will still be installed from each new dwelling erected on the development site to one of the points listed in order of priority, as set out in paragraphs 1.8 to 1.15.

3.8In addition to the information and particulars required of them under requirements RA1 and RA2, developers must provide all additional required information and particulars when making an application for Building Regulations approval. The connectivity plan does not contain sections for all information and particulars required under the Building Regulations.

Source page 29

NOTE: The items marked * are defined in regulation 44C and 44ZC of, and Part R in Schedule 1 to the Building Regulations 2010.

Access point* A physical point located inside or outside the building, accessible to undertakings providing or authorised to provide public communications networks, where connection to the high-speed-ready in-building physical infrastructure, or as the case requires the gigabit-ready physical infrastructure, is made available.

Building control body A local authority building control department or an approved inspector.

Connectivity plan A model form template for developers to provide information to accompany each application for Building Regulations approval containing sections for information that developers are required to provide, including the particulars of connection to a public electronic communications network, and sections for developers to provide further information to assist with the building control process.

Distribution point* A distribution point for a gigabit-capable public electronic communications network (also referred to as a network distribution point).

Dwelling A self-contained unit designed to accommodate a single household, including dwelling houses and flats.

Gigabit-capable electronic communications network* An electronic communications network that is capable of delivering broadband access services at download speeds of at least 1000 Mbps.

Gigabit-capable public electronic communications network* A public electronic communications network that is a gigabit-capable electronic communications network.

Gigabit-ready physical infrastructure* Physical infrastructure or installations, including elements under joint ownership, intended to host wired or wireless gigabit-capable public electronic communications networks.

High-speed electronic communications network* An electronic communications network which is capable of delivering broadband access services at speeds of at least 30 Mbps.

Network operator A provider of a public electronic communications network.

Network termination point* A physical point at which an occupier is provided with access to high-speed electronic communications networks.

Public electronic communications network Has the meaning given by section 151(1) of the Communications Act 2003.

Relevant 2-year period* The period of 2 years beginning with the earlier of the following:

a.the day on which a building notice, initial notice or public body’s notice relating to work to which this paragraph applies is given;

b.the day on which full plans relating to building work to which this paragraph applies are deposited.

USO-standard public electronic communications network* A public electronic communications network that provides at least the minimum download speed for the time being specified by virtue of section 65(2B)(a) of the Communications Act 2003 in the universal service order (as defined by section 151(1) of that Act).

Source page 30

Part A

Guidance for completing this connectivity plan is available in Approved Document R, Volume 1: Physical infrastructure and network connection for new dwellings (at www.gov.uk/government/collections/approved-documents). Part A of this connectivity plan is to be completed when gigabit-ready physical infrastructure is to be installed, and connection to a gigabit-capable public electronic communications network is to be provided.

a.Will you provide each dwelling on the development site with gigabit-ready physical infrastructure from the network termination point at each dwelling to the network distribution point?

☐ Yes. Please complete section 6 of Part A

☐ No. Please complete section 5b of Part A

b.Will you provide each dwelling on the development site with gigabit-ready physical infrastructure from a network termination point to a point as close as is reasonably practicable to a current or likely future location of a network distribution point?

☐ Yes. Please complete section 6 of Part A

☐ No. Please complete section 5c of Part A

c.Will you provide each dwelling on the development site with gigabit-ready physical infrastructure from a network termination point to an access point or common access point?

☐ Yes. Please complete section 6 of Part A

☐ No. Please continue to Part B

Source page 31

d.Will you provide each dwelling on the development site with connection to a gigabit-capable public electronic communications network?

☐ Yes. Please complete section 6 of Part A

☐ No. Please complete Part B

6 Evidence to support section 5

Please attach evidence to support your answer to section 5.

This should include written confirmation that a suitable provider of public electronic communications networks has offered for each dwelling to provide a connection to a gigabit-capable public electronic communications network as stated at section 5d, and details of which technology will be used to deliver this, e.g. full fibre, satellite, fixed wireless or other technologies.

Developers may also wish to include information explaining why the relevant gigabit-ready physical infrastructure in sections 5a, 5b or 5c is being installed – this includes circumstances in which there is no current network distribution point towards which such infrastructure can be built to a reasonably practicable point of proximity, because the developer does not have the right to install the infrastructure on the relevant land.

Where this form refers to a likely future location of a network distribution point, this should be supported by evidence of where it is reasonable to expect the network distribution point to be located. Evidence would constitute information from a network operator confirming that a network distribution point will be installed within the relevant 2-year period and its location. Where this form refers to the lack of a likely future location of a network distribution point, this should be supported by evidence of the efforts to ascertain from a network operator if a relevant network distribution point is to be installed within the relevant 2-year period.

To assist with the building control process, developers may wish to demonstrate planned infrastructure routes in relation to development site layouts and explain any factors that the infrastructure installation may need to take account of, such as specific conservation area conditions for current and future infrastructure installation, or obstacles that need to be circumvented.

Part B

Part B of this form is to be completed when an exemption is being relied upon.

1 Exemption from requirement RA1

a.Is/are the building/s exempt from the requirement to install gigabit-ready physical infrastructure?

☐ Yes. Please complete section 1b and/or 1c, as appropriate

☐ No. Please continue to section 3

b.☐ The following applies:

•The building/s is/are to be occupied by the Ministry of Defence or the armed forces of the Crown, or to be otherwise occupied for purposes connected to national security.

c.☐ Both of the following apply:

•The building/s is/are in an area isolated from a relevant public electronic communications network of the kind mentioned in regulation 44ZC(2) of the Building Regulations 2010, where the cost of a gigabit-capable, high-speed and USO-standard public electronic communications network connection exceeds the cost cap.

•The prospect of a gigabit-capable, high-speed and USO-standard public electronic communications network connection is considered too remote to justify equipping the building with gigabit-ready physical infrastructure (for full fibre, satellite, fixed wireless or other technologies) or an access point as set out in sections 5a, 5b or 5c in Part A of this form.

Please note other exemptions in the Building Regulations 2010, which are not included in this connectivity plan, including those set out in Classes 1 to 7 of Schedule 2 to the Building Regulations 2010.

2 Evidence of exemption

Please attach evidence to show how exemption 1b and/or 1c applies.

3 Exemption from requirement RA2

a.Is/are the building/s exempt from the requirement to provide a connection to a gigabit-capable public electronic communications network?

☐ Yes. Please complete section 3b or 3c, as appropriate

☐ No.

Source page 32

b.The cost to provide each dwelling on the development site with the following exceed(s) the cost cap:

Tick all that apply

☐ Gigabit-capable public electronic communications network connection

☐ High-speed public electronic communications network connection

☐ USO-standard public electronic communications network connection

c.☐ The following applies:

•At least two suitable providers of public electronic communications networks have declined to provide a connection free of charge or at a cost not exceeding the cost cap, or have failed to respond to requests within 30 working days.

4 Evidence of exemption

Please attach the following, from suitable providers of public electronic communications networks.

•Evidence that the providers are suitable for the purposes in question.

•One of the following.

–At least two offers from the providers showing that the cost of the relevant connection exceeds the cost cap (where 3b applies).

–At least two requests for offers for a relevant connection to which the providers have failed to respond within 30 working days (developers may wish to provide further evidence including evidence of follow-up requests) (where 3c applies).

–Correspondence from at least two of the providers that declined to provide any connection to a relevant connection, clearly stating the reason why (where 3c applies).

Source page 33

Legislation

(available via www.legislation.gov.uk)

Building Regulations 2010, SI 2010/2214

Communications Act 2003, c. 21

Electronic Communications (Universal Service) (Broadband) Order 2018, SI 2018/445

Standards

PAS 2016 Next generation access for new build homes – Guide [2010]. Publicly Available Specification produced by BSI (as was, now BEIS) and the British Standards Institution (BSI). Available at https://www.gov.uk/government/publications/pas-2016-2010-next-generation-access-for-new-build-homes-guide

Other documents

NHBC Foundation

(www.nhbcfoundation.org)

NF67 The Connected Home: Designing and Building Technology into Today’s New Homes [2016]. Available at https://www.nhbcfoundation.org/publication/the-connected-home/

Ofcom

(www.ofcom.org)

Connected Nations reports. Available at https://www.ofcom.org.uk/research-and-data/multi-sector-research/infrastructure-research

Street Works UK

Street Works UK Guidelines on the Positioning and Colour Coding of Underground Utilities’ Apparatus, Volume 1, Issue 9 [2018]. Available at http://streetworks.org.uk/wp-content/uploads/2018/11/VOL-1-reviewed.pdf

Other sources

UK Government Digital Connectivity Portal

Available at https://www.gov.uk/guidance/digital-connectivity-portal

Source page 34

Source page 35

The following documents have been published to give guidance on how to meet the Building Regulations. You can find the date of the edition approved by the Secretary of State at www.gov.uk.

Approved Document A Structure

Approved Document B Fire safety Volume 1: Dwellings

Approved Document B Fire safety Volume 2: Buildings other than dwellings

Approved Document C Site preparation and resistance to contaminants and moisture

Approved Document D Toxic substances

Approved Document E Resistance to the passage of sound

Approved Document F Ventilation Volume 1: Dwellings

Approved Document F Ventilation Volume 2: Buildings other than dwellings

Approved Document G Sanitation, hot water safety and water efficiency

Approved Document H Drainage and waste disposal

Approved Document J Combustion appliances and fuel storage systems

Approved Document K Protection from falling, collision and impact

Approved Document L Conservation of fuel and power Volume 1: Dwellings

Approved Document L Conservation of fuel and power Volume 2: Buildings other than dwellings

Approved Document M Access to and use of buildings Volume 1: Dwellings

Approved Document M Access to and use of buildings Volume 2: Buildings other than dwellings

Approved Document O Overheating

Approved Document P Electrical safety – Dwellings

Approved Document Q Security – Dwellings

Approved Document R Infrastructure for electronic communications Volume 1: Physical infrastructure and network connection for new dwellings

Approved Document R Infrastructure for electronic communications Volume 2: Physical infrastructure for high-speed electronic communications networks

Approved Document S Infrastructure for the charging of electric vehicles

Approved Document 7 Materials and workmanship

Source page 36

The Building Regulations 2010, Approved Documents are available from:

RIBA Books

Online: www.architecture.com/ribabooks Telephone: +44 (0)20 7496 8383 Email: sales@ribabookshops.com

ISBN 978 1 914 12497 6

© Crown Copyright 2022

The content of this publication, excluding logos, may be reproduced free of charge in any format or medium for research, private study or for internal circulation within an organisation. This is subject to it being reproduced accurately and not used in a misleading context. The material must be acknowledged as Crown copyright and the title and edition of the publication specified. This document/publication is value added. You may re-use the content (not including logos) free of charge in any format or medium, under the terms of the Open Government Licence. To view this licence, visit: http://www.nationalarchives.gov.uk/doc/open-government-licence/ or write to the Information Policy Team, The National Archives, Kew, London TW9 4DU, or e-mail: psi@nationalarchives.gov.uk.

If you require this publication in an alternative format, please email: alternativeformats@levellingup.gov.uk. Copyright in the typographical arrangement, excluding logos, of the cover and internal page layouts of this publication rests with the Publisher.
