Technical booklet E - Fire Safety 2012

Source page 1

Department of

● Finance and ● Personnel

www.dfpni.gov.uk

G u i d a n c e

Te c h n i c a l B o o k l e t

E

Fire safety

October 2012

Source page 2

Contents page

Introduction 4

Technical Booklets 4

This Technical Booklet 4

Protected buildings 5

Other legislation 5

Commission guidance papers and decisions 6

Part E Regulations 8

Guidance – Performance and introduction to provisions 10

Means of escape 10

Internal fire spread – Linings 13

Internal fire spread – Structure 13

External fire spread 15

Facilities and access for the Fire and Rescue Service 16

Use of this Technical Booklet 17

Section 1 General 18

Definitions 18

General guidance 24

Noncombustible materials 25

Materials of limited combustibility 26

Classification 26

Alternative approaches 27

Section 2 Means of escape 28

Dwellinghouses 28

Introduction 28

Common provisions 28

Roof space conversions 33

Source page 3

Automatic fire detection and fire alarm systems in dwellinghouses 35

Flats 37

Means of escape 37

Automatic fire detection and fire alarm systems in flats 37

Buildings other than dwellings 38

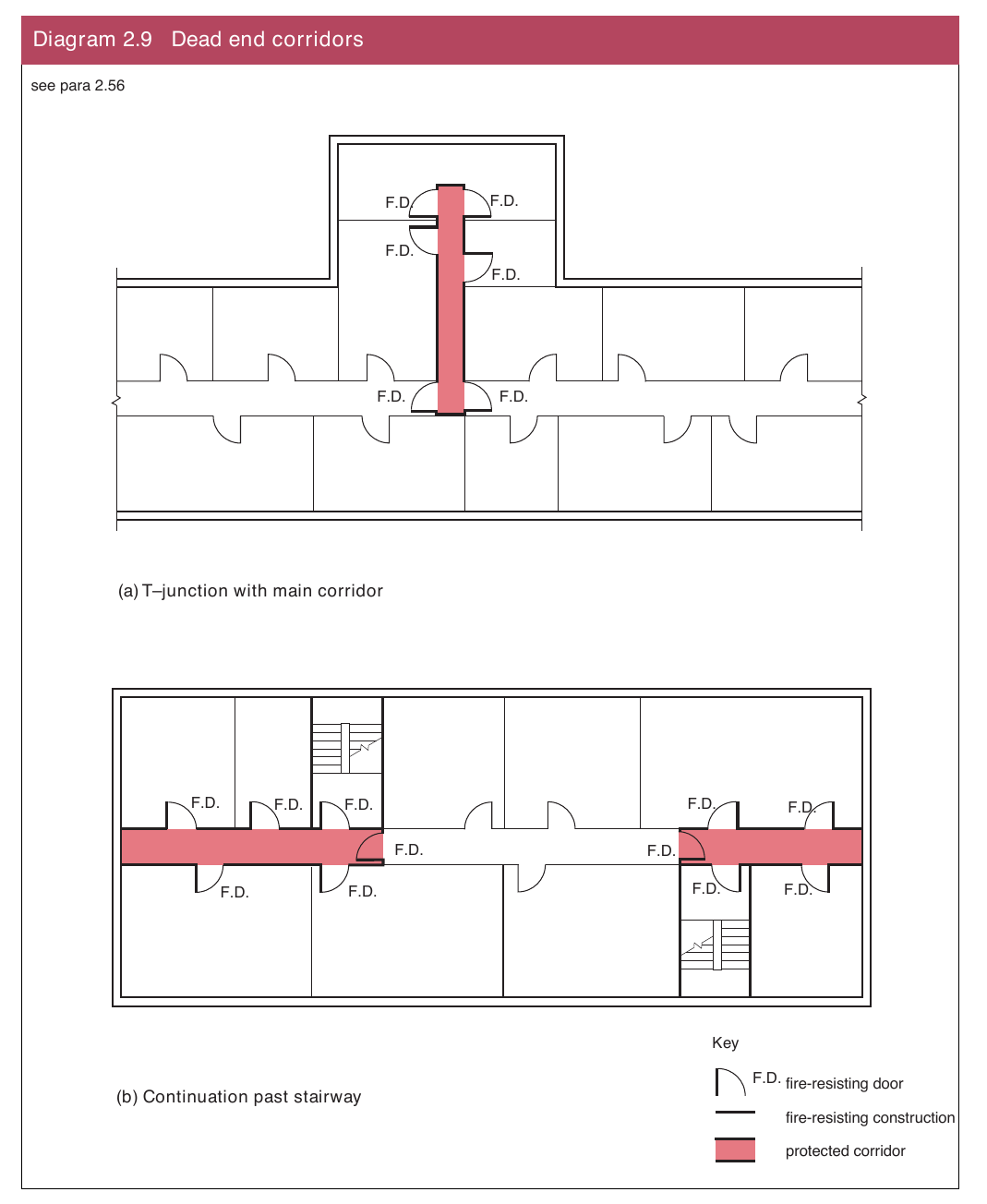

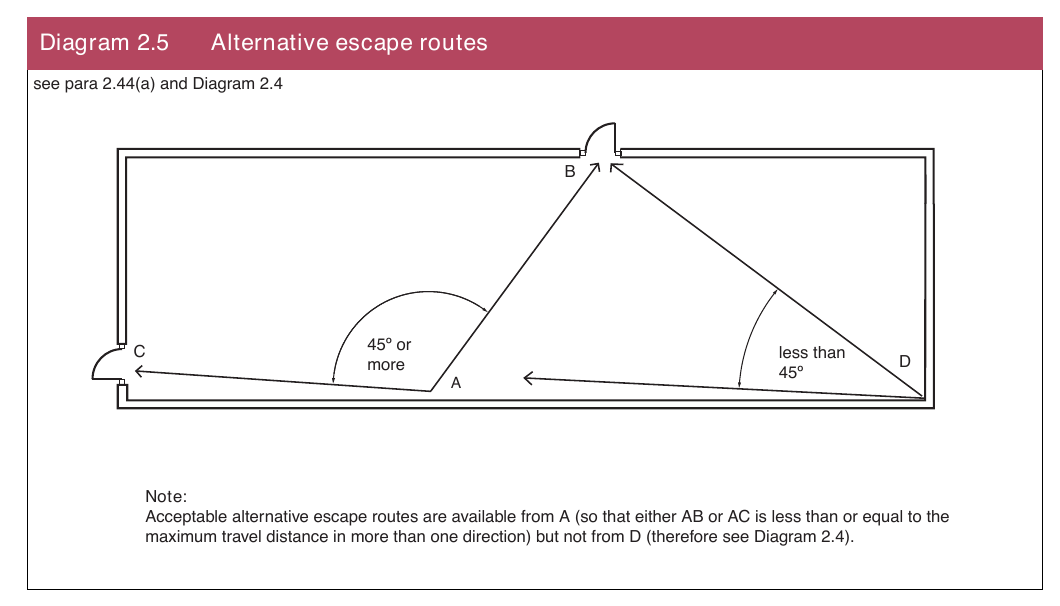

Horizontal part of the escape route 38

Vertical part of the escape route 51

General provisions 66

Section 3 Internal fire spread Linings 74 (National classification) (European classification)

Classification of performance of materials or products 74

Classification of performance of materials or products 76

Performance of wall and ceiling linings 77

Section 4 Internal fire spread Structure 81

Tests for fire resistance 81

Fire resistance of elements of structure and certain other components of the building 87

Compartmentation 93

Protected shafts between compartments 98

Fire doors 100

Provision of cavity barriers 104

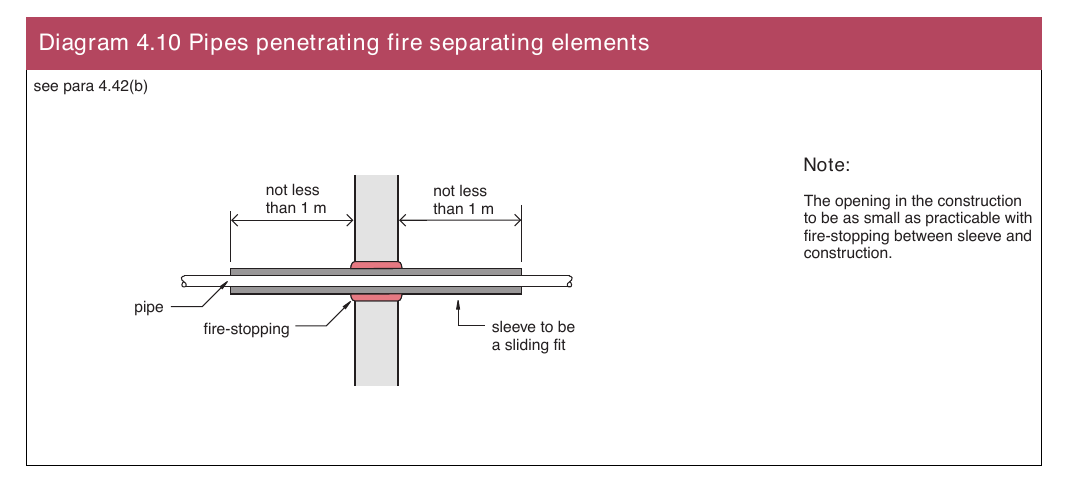

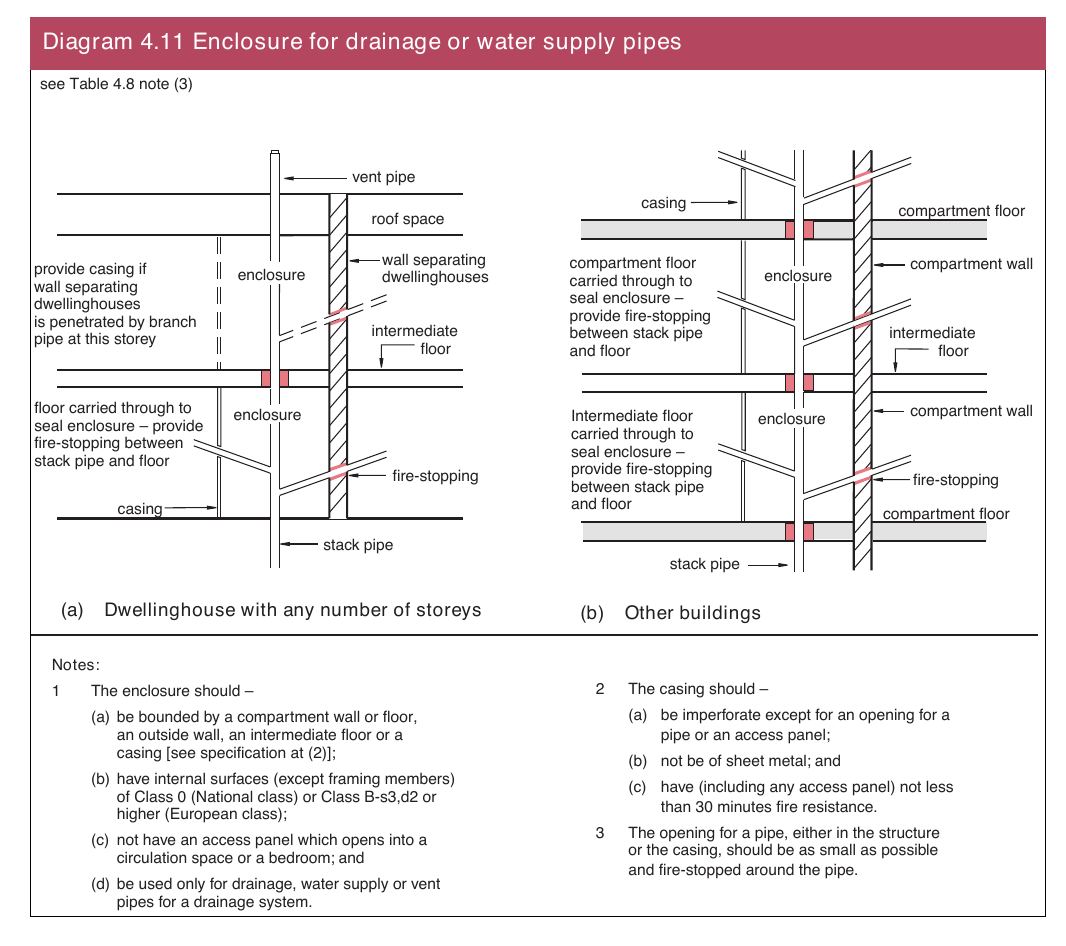

Pipes penetrating fire separating elements 112

Car parks for light vehicles 116

Shopping complexes 118

Insulating core panels used for internal structures 119

Section 5 External fire spread 123

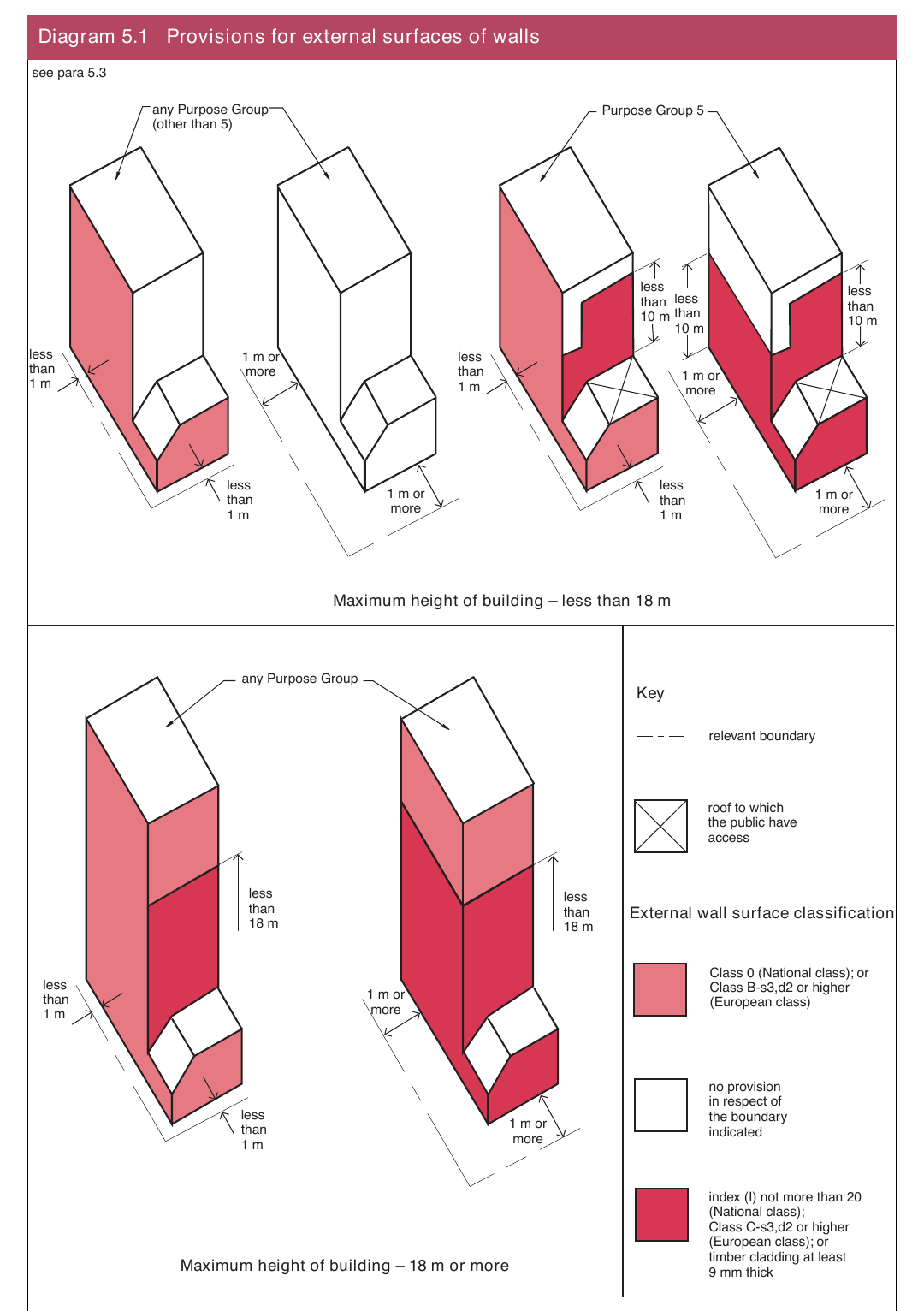

Construction of external walls 123

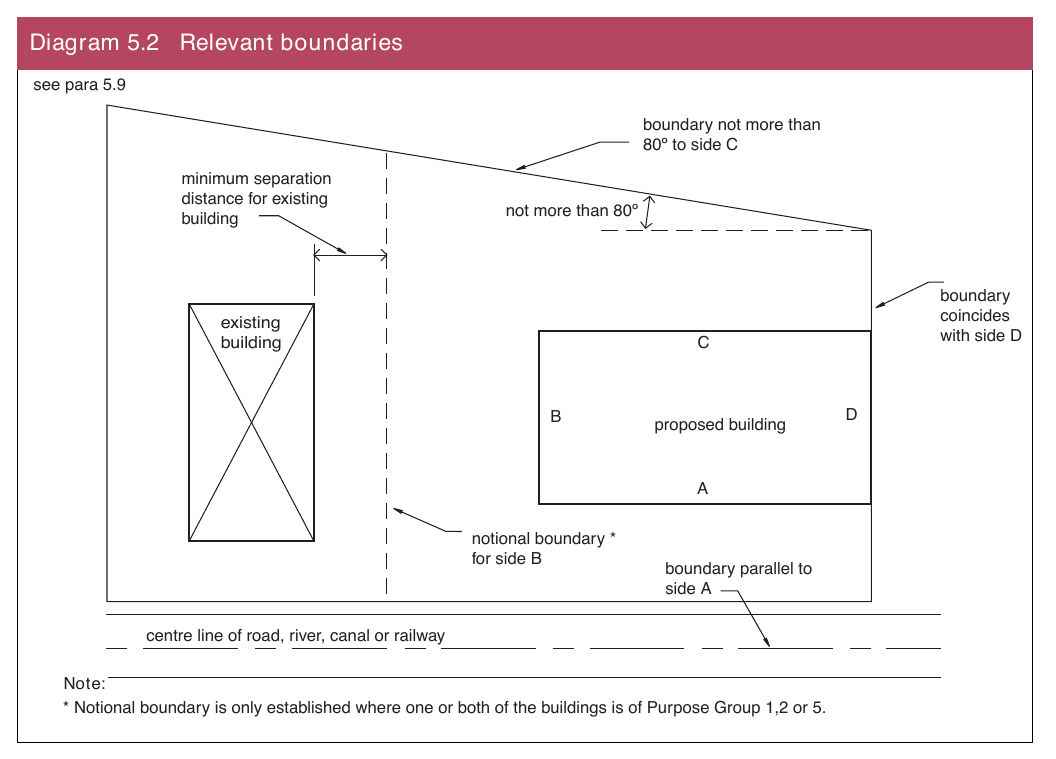

Space separation External walls 126

Provisions for and calculation of space separation and unprotected areas 130

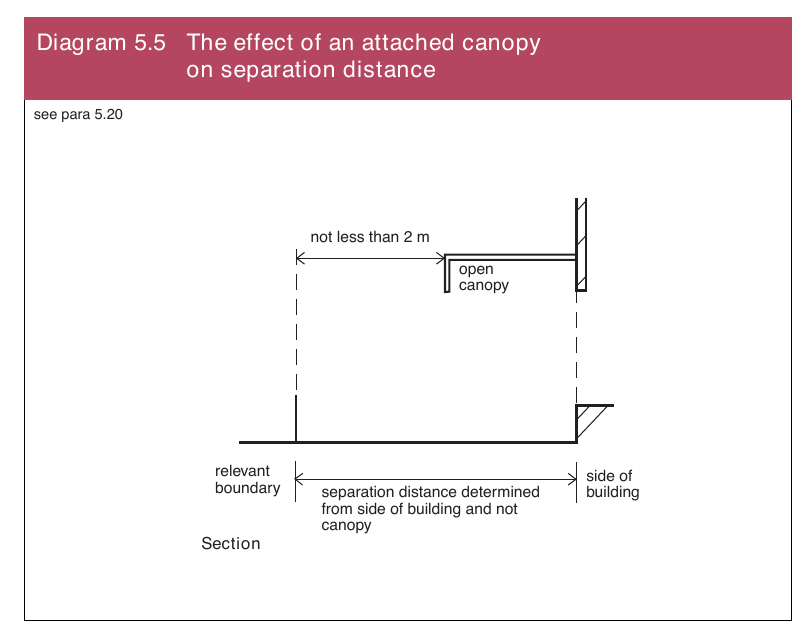

Canopies 139

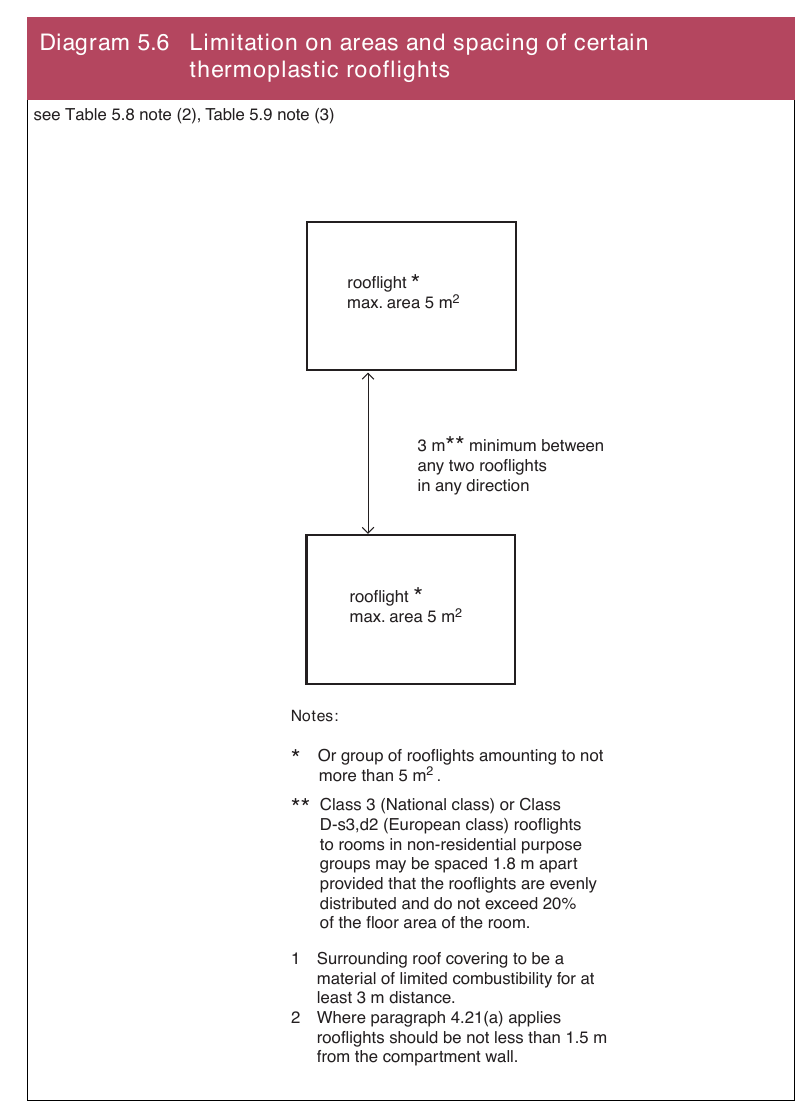

Roofs 140

Source page 4

Section 6 Facilities and access for the Fire and Rescue Service 147

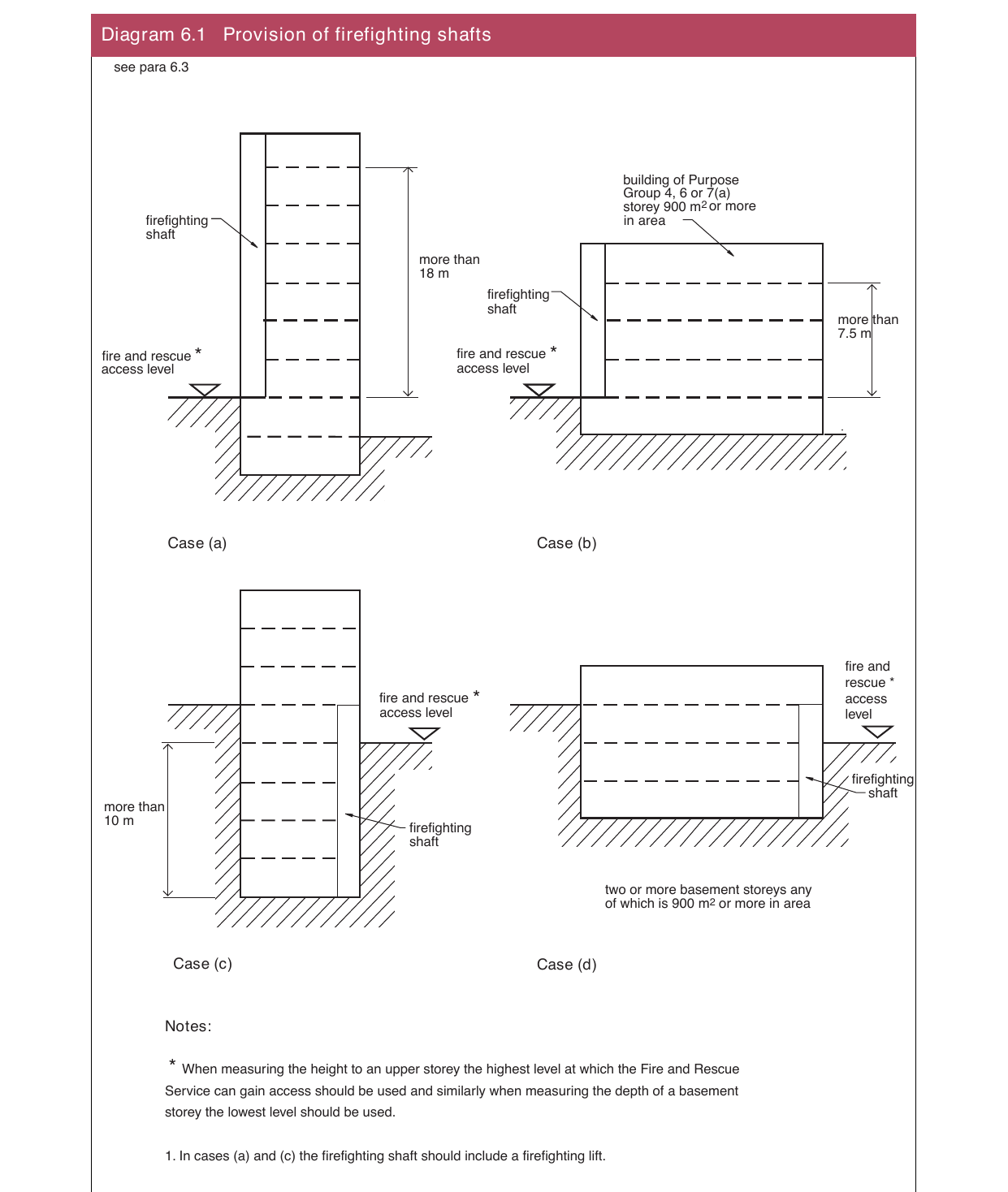

Firefighting shafts 147

Venting of heat and smoke from basements 150

Rolling shutters in compartment walls 152

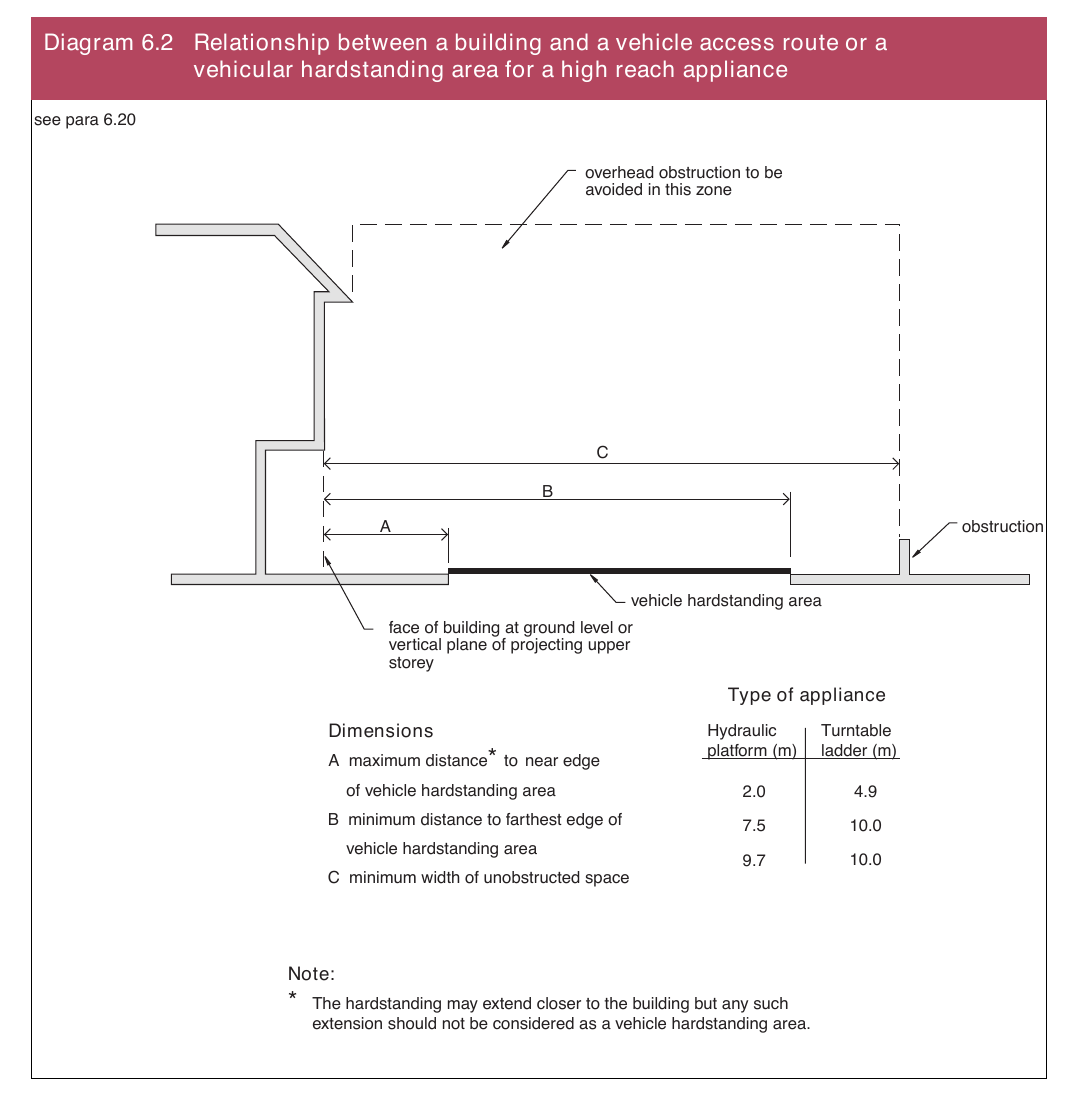

Vehicle access 152

Appendix A Purpose Groups 155

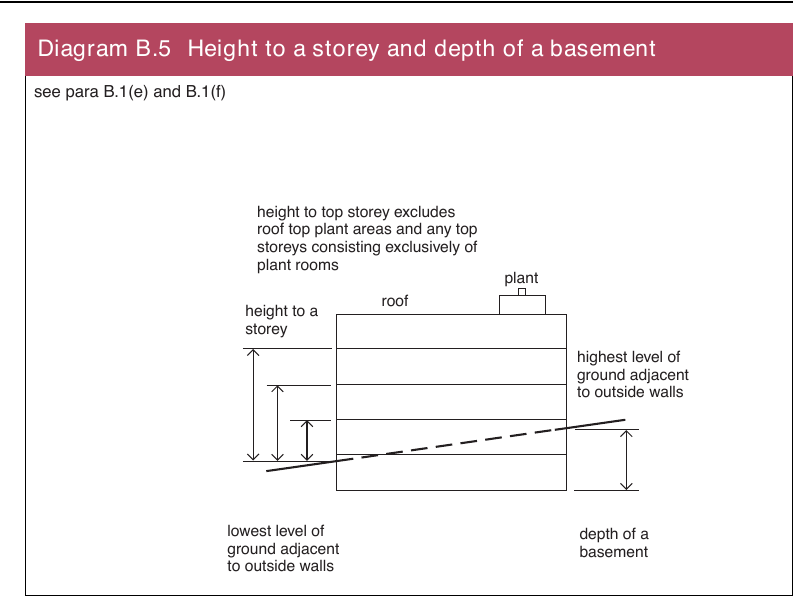

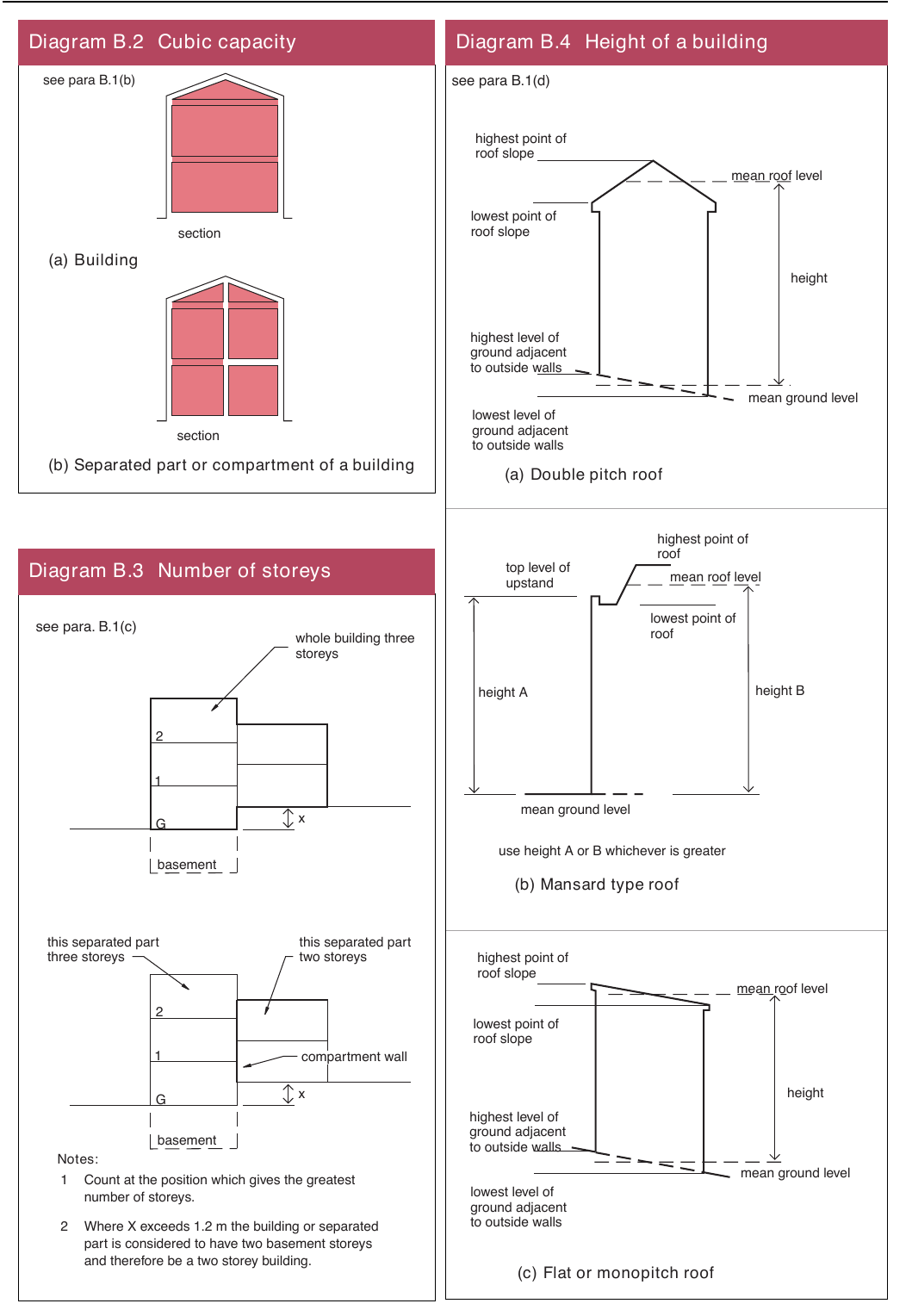

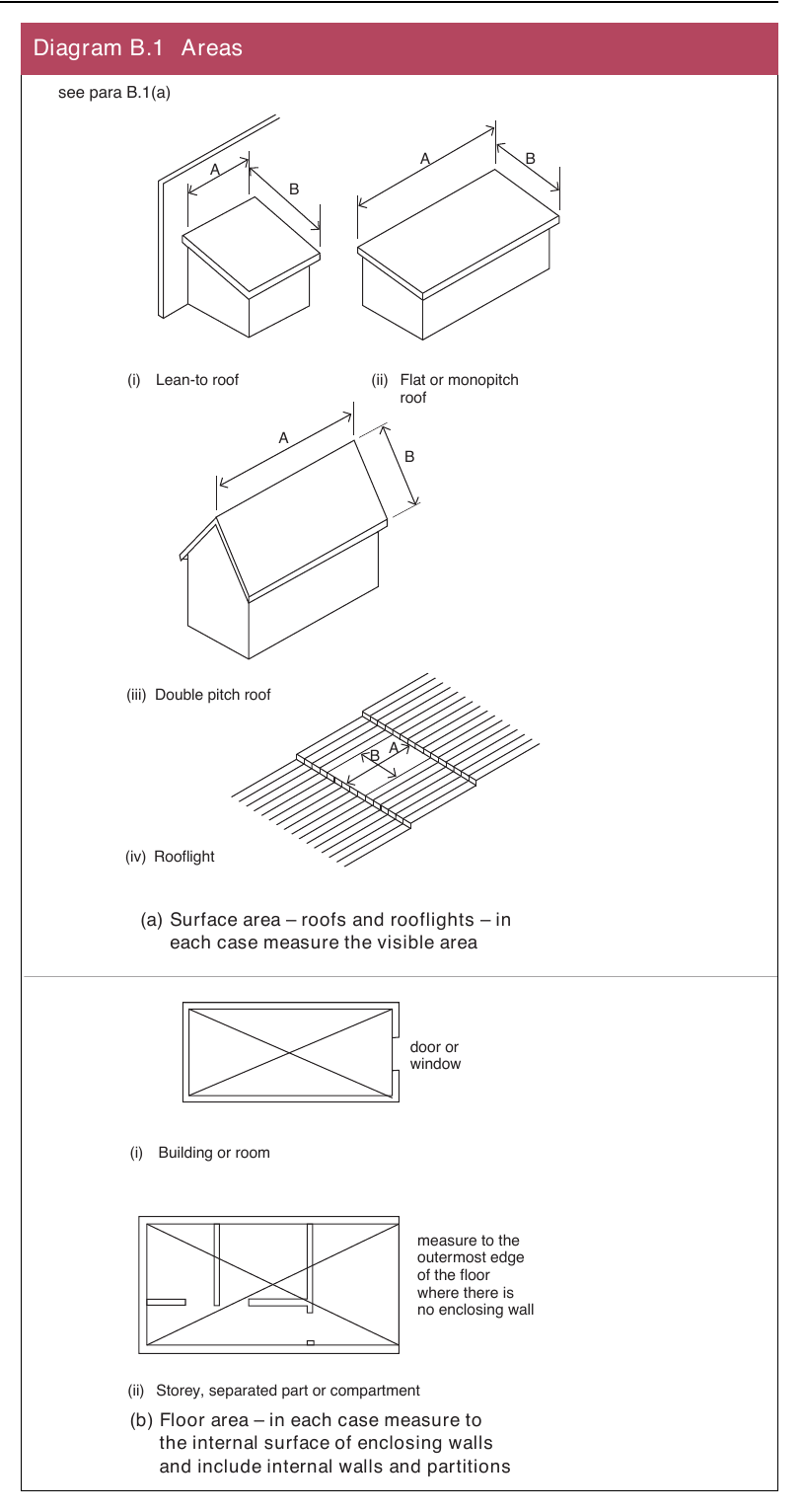

Appendix B Rules for measurement 157

Appendix C Publications referred to 161

Source page 5

Introduction

Technical Booklets

This Technical Booklet, which takes effect on 31st October 2012, is one of a series that has been prepared by the Department of Finance and Personnel (the Department) for the purpose of providing practical guidance with respect to the technical requirements of the Building Regulations (Northern Ireland) 2012 (the Building Regulations).

At the back of each Technical Booklet is a list of all the Technical Booklets that have been prepared and published by the Department for this purpose.

The guidance given in a Technical Booklet includes performance standards and design provisions relating to compliance with specific aspects of the Building Regulations for the more common building situations.

If the guidance in a Technical Booklet is followed there will be a presumption of compliance with the requirements of those Building Regulations covered by that guidance. However, this presumption can be overturned, so simply following the guidance does not guarantee compliance. For example, if a particular circumstance is not one of the more common building situations the design provisions given in the Technical Booklet may not be appropriate.

There are likely to be alternative ways of demonstrating compliance with the relevant requirements of the Building Regulations other than by following a design provision given in a Technical Booklet. There is therefore no obligation to adopt any particular provision set out in a Technical Booklet, should you decide to comply in some other way. However, you will have to demonstrate that your alternative solution meets the relevant requirements of the Building Regulations by those other means.

This Technical Booklet

Requirements

The guidance contained in this Technical Booklet relates only to the requirements of regulations 33, 34, 35, 36 and 37. The work will also have to comply with all other relevant requirements of the Building Regulations.

Materials and workmanship

Any building work which is subject to requirements imposed by Part A of the Building Regulations should be carried out in accordance with regulation 23 of those regulations. Guidance on meeting these requirements for materials and workmanship is given in Technical Booklet B which supports Part B.

Source page 6

The Building Regulations are made for specific purposes, primarily securing the health, safety, welfare and convenience of people and for the conservation of fuel and power. Standards and technical approvals are relevant guidance to the extent that they relate to these purposes. However, they may also address other aspects of performance such as serviceability, or aspects which although they relate to health and safety are not covered by the Building Regulations.

Named standards

Where this Technical Booklet makes reference to a named standard, the relevant version of the standard is the one listed in Appendix C. However, if this version has been replaced or updated by the issuing standards body, the new version may be used as a source of guidance provided that it continues to address the relevant requirements of the Building Regulations.

Diagrams

The diagrams in this Technical Booklet supplement the text. They do not show all the details of construction and are not intended to illustrate compliance with any other requirement of the Building Regulations. They are not necessarily to scale and should not be used as working details.

Protected buildings

District councils have a duty to take account of the desirability to preserve the character of protected buildings when carrying out their functions under Building Regulations. Therefore, where work is to be carried out to a protected building to comply with Part E or any other Part of the Building Regulations, special consideration may be given to the extent of such work for compliance where it would unacceptably alter the character or appearance of the building. Protected buildings are defined in Article 3A(2) of the Building Regulations (Northern Ireland) Order 1979 (as amended).

Other legislation

The provisions of this Technical Booklet relate to the requirements of Building Regulations and do not include measures which may be necessary to meet the requirements of other legislation. Such other legislation may operate during the design or construction stages or when a building is brought into use and can extend to cover aspects which are outside the scope of the Building Regulations.

The Fire and Rescue Services (Northern Ireland) Order 2006

The main legislation in this area is the Fire and Rescue Services (Northern Ireland) Order 2006 and the associated Fire Safety Regulations (Northern Ireland) 2010. This legislation imposes a general duty to take such fire precautions as may be reasonably required to ensure that relevant premises are safe for the occupants and those in the immediate vicinity. By virtue of this legislation certain duty holders are required to carry out and continually review a fire risk assessment of the workplace and the relevant premises.

Source page 7

The Workplace (Health, Safety and Welfare) Regulations (Northern Ireland) 1993 (the Workplace Regulations) contain some requirements which affect building design. The main requirements are now covered by the Building Regulations, but for further information see – The Workplace Regulations and the Workplace Health, Safety and Welfare Approved Code of Practice and Guidance published by TSO.

The Workplace Regulations apply to the common parts of flats and similar buildings if people such as cleaners, wardens and caretakers are employed to work in these common parts. Where the requirements of the Building Regulations that are covered by Part E do not apply to dwellings, the provisions may still be required in the situations described above in order to satisfy the Workplace Regulations.

The Construction (Design and Management) Regulations (Northern Ireland) 2007

The Construction (Design and Management) Regulations (Northern Ireland) 2007 impose requirements which affect building design. These include, amongst other things, the need for coordination, cooperation and communication between all parties in the construction process.

The purpose of this Technical Booklet is to provide guidance on the fire safety requirements for the completed building. It does not address the risk of fire during the construction work which is covered by the Construction (Design and Management) Regulations (Northern Ireland) 2007. HSE has issued the following guidance on fire safety in construction – Construction information sheet No 51 Construction fire safety; and HSG 168 Fire safety in construction work.

When the construction work is being carried out on a building which, apart from the construction site part of the building, is occupied, the Northern Ireland Fire and Rescue Service Board is responsible for the enforcement of the 2007 Regulations in respect of fire. Where the building is unoccupied, the Health and Safety Executive is responsible for enforcement on the construction site.

Commission guidance papers and decisions

The following guidance papers and Commission Decisions are directly relevant to fire matters under the Construction Products Directive –

Guidance paper G – The European classification system for the reaction to fire performance of construction products.

Guidance paper J – Transitional arrangements under the Construction Products Directive.

Commission Decision of 8 February 2000 (2000/147/EC) implementing Council Directive 89/106/EEC as regards the classification of the reaction to fire performance of construction products.

Source page 8

Commission Decision of 3 May 2000 (2000/367/EC) implementing Council Directive 89/106/EEC as regards the classification of the resistance to fire performance of construction products, construction works and parts thereof.

Source page 9

Part E Regulations

Part E (comprising regulations 32 to 37) of the Building Regulations, which sets out the requirements for Fire safety, has been replicated below for the convenience of the user of this Technical Booklet and is taken directly from the Building Regulations (Northern Ireland) 2012.

Any person who intends to demonstrate compliance with the Building Regulations by following the guidance given in this Technical Booklet is advised to ensure that the regulations below, are current on the date when plans are deposited or notices given to the district council.

As Part A (comprising regulations 1 to 21) of the Building Regulations sets out the Interpretation along with the procedural requirements relating to the application of the regulations, the Department advises that all Parts of the Building Regulations are read in conjunction with Part A of those regulations.

The Building Regulations (Northern Ireland) 2012 and any subsequent amendment/s may be viewed by following the links from the Department’s website at “www.buildingregulationsni.gov.uk”.

PART E

Fire safety

Application and interpretation

32.—(1) Regulations 33 and 35(3) shall not apply to a prison within the meaning of the Prisons Act (Northern Ireland) 1953(a) or any other place of lawful detention.

(2) In this Part—

“Dwelling” means a selfcontained unit of residential accommodation occupied (whether or not as a sole or main residence)—

(a)by a single person or by people living together as a family; or

(b)by not more than 6 people living together as a single household, including a household where care is provided for residents;

“Dwellinghouse” means a dwelling on one or more storeys which is detached or forms part of a building from all other parts of which it is divided only vertically and does not include a flat;

“Flat” has the meaning assigned to it by regulation 2 in Part A;

“Internal linings” means the materials lining any partition, wall, ceiling or other internal structure;

“Means of escape” means structural means whereby, in the event of a fire, a safe route or routes is or are provided for people to travel from any point in a building to a place of safety; and

“Place of safety” means a place, outside the building, in which people are in no danger from fire within the building.

(a) 1953 c. 18 (N.I.)

Source page 10

Means of escape

33.A building shall be so designed and constructed that in the event of a fire there is—

(a)where appropriate, adequate means of automatic detection;

(b)adequate means of giving warning; and

(c)adequate means of escape, which can be safely and effectively used at all material times.

Internal fire spread – Linings

34.To inhibit the spread of fire within a building the internal linings shall—

(a)offer adequate resistance to the spread of flame over their surfaces; and

(b)where they are located in a circulation space, have a low rate of heat release or a low rate of fire growth when ignited.

Internal fire spread – Structure

35.—(1) A building shall be so designed and constructed that, in the event of a fire, its stability will be retained for a reasonable period.

(2)A wall common to two or more buildings shall be so designed and constructed that it provides adequate resistance to the spread of fire between those buildings and for the purposes of this paragraph a dwellinghouse in a terrace and a semidetached dwellinghouse shall be considered as a separate building.

(3)To inhibit the spread of fire within it, a building shall be adequately subdivided with fire resisting construction.

(4)A building shall be so designed and constructed that the spread of fire (and in particular smoke) within concealed spaces in its structure and fabric is adequately inhibited.

External fire spread

36.The external walls and roof of a building shall be so designed and constructed that they afford adequate resistance to the spread of fire over them, and from one building to another, having regard to—

(a)in the case of an external wall the use, position and height of the building; and

(b)in the case of a roof the use and position of the building.

Facilities and access for the Fire and Rescue Service

37.—(1) A building shall be designed and constructed with such reasonable facilities as are necessary to assist the Fire and Rescue Service in ensuring the safety of people in and about the building in the event of a fire.

(2) Reasonable provisions shall be made within the boundary of the premises for access to the building by fire and rescue appliances for the purpose of paragraph (1).

Source page 11

Guidance – Performance and introduction to provisions

Means of escape

Performance

0.1It is the view of the Department that the requirements of regulation 33 in Part E will be met if there is sufficient means for giving early warning of fire for persons in a building and –

(a)if there are routes of sufficient number and capacity, which are suitably located to enable persons to escape to a place of safety in the event of fire;

(b)if the routes are sufficiently protected from the effects of fire by enclosure where necessary;

(c)if the routes are adequately lit;

(d)if the exits are suitably signed; and

(e)if there are appropriate facilities to either limit the ingress of smoke to the escape route(s) or to restrict the fire and remove smoke.

The extent to which the measures in respect of escape routes are necessary is dependent on the use of the building, its size and height.

Introduction to provisions in Section 2

0.2The guidance in Section 2 is concerned with ensuring that occupants are given warning of, and have a means of escape from, a fire. It only refers to structural fire precautions where these are necessary to safeguard an escape route. The provisions have been prepared on the basis that the occupants of any part of a building should be able to escape from the building, in the event of a fire, without external assistance.

In dwellings and certain other buildings an automatic fire detection and alarm system can significantly increase the level of safety by automatically giving an early warning of fire. In other buildings an appropriate fire alarm system should provide adequate warning to occupants.

The design of the means of escape is based on the assumption that a fire will start in only one location and initially be a hazard in that area only. Subsequently it may spread to other parts, usually through circulation routes. Furnishings and equipment are not covered by the Building Regulations but are usually the items first ignited in a fire. A fire is less likely to start within the structure of the building or in a circulation area.

The primary danger in the early stages of a fire is not flame but smoke and other products of combustion which can directly affect the occupants of the building and obscure the escape routes. Measures designed to provide safe means of escape must therefore include provisions to limit the spread of smoke and other products of combustion.

Source page 12

The basic principles for the design of means of escape are –

(a)there should be alternative means of escape from most locations so that people can turn their back on a fire and travel away from it to a place of safety; and

(b)where direct escape to a place of safety is not possible, the aim is to reach a place of relative safety, such as a protected stairway, within a reasonable travel distance. In such cases the escape route should consist of two parts – the first part in unprotected rooms and circulation areas, and the second part in protected stairways and in some circumstances protected corridors.

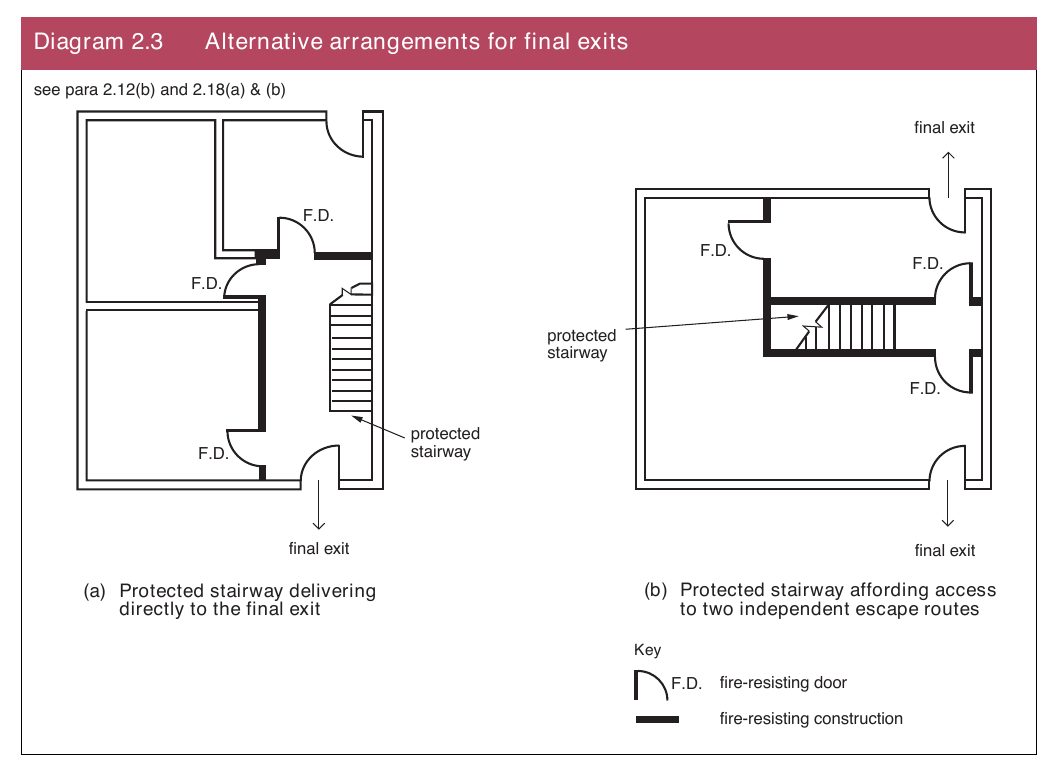

A protected stairway is considered to be a place of relative safety within which people can proceed at their own pace to a place of safety. Smoke and flames must be excluded from protected stairways by fire and smokeresisting construction or by an appropriate smoke control system or both.

The ultimate place of safety is the open air clear of the effects of the fire.

The following are not acceptable for means of escape –

(i)a lift (except a suitably designed and installed evacuation lift);

(ii)a passenger conveyor or escalator;

(iii) a portable or throwout ladder; and

(iv) manipulative apparatus and appliances.

Specific approaches for the design of means of escape

Shopping complexes

0.3Although the guidance in Section 2 may be readily applied to individual shops, shopping complexes present a different set of escape problems. The design of shop units within a shopping complex should be compatible with the fire strategy for the complex as a whole. A suitable approach is given in the relevant recommendations of BS 558810.

Note – BS 558810 applies more restrictive provisions to shop units with only one exit in covered shopping complexes.

Health care premises

0.4Health care premises including hospitals and residential health care buildings are quite diverse and can be used by a variety of patients, often requiring different types of care to suit their specific needs. The choice of fire safety strategy is dependent upon the way a building is designed, furnished, staffed and managed and the level of dependency of the patients.

In parts of health care premises designed to be used by patients, where there are people who are bedridden or who have very restricted mobility, the principle of total evacuation in the event of a fire may be inappropriate. It is also unrealistic to suppose that all patients will leave without assistance. In this and other ways the specialised nature of some health care premises demands a different approach to the provision of means of escape, from much of that embodied in the guidance given in Section 2.

Source page 13

The Department of Health, Social Services and Public Safety has produced a set of guidance documents on fire precautions in health care buildings under the general title of the Northern Ireland Firecode.

A suitable approach for the design of means of escape in health care premises is given in the relevant publications contained in the Northern Ireland Firecode. (These documents may also be used for nonNHS health care premises.)

Assembly buildings

0.5There are particular problems that arise when fixed seating impinges on people’s ability to escape in the event of a fire. This may occur at sports grounds, theatres, lecture halls and conference centres etc. Guidance on this and other aspects of means of escape in an Assembly building is given in Sections 3 and 5 of BS 55886 and the relevant recommendations of that code should be followed in appropriate cases. In the case of buildings to which The Safety of Sports Grounds (Northern Ireland) Order 2006 applies the relevant guidance in the Northern Ireland guide to safety at sports grounds should be followed.

Houses in multiple occupation (HMO)

0.6A suitable approach for the design of means of escape in a house in multiple occupation is given in the relevant provisions of Section 5 of DOE Circular 12/92: Houses in multiple occupation.

The licensing of HMOs in Northern Ireland is overseen by the Housing Executive which may require additional measures. The Housing Executive has published the following guidance: Houses in multiple occupation, Fire safety guide.

Hotels and boarding houses

0.7A suitable approach for the design of means of escape in a Hotel or Boarding House is given in the relevant provisions of Chapters 13 and 14 of the Guide to fire precautions in premises used as hotels or boarding houses which require a fire certificate published by the Home Office: 1991.

Schools

0.8Although the guidance in this Technical Booklet applies to schools, additional life safety guidance in respect of means of escape may be found in BB 100: Design for fire safety in schools.

Source page 14

Performance

0.9It is the view of the Department that the requirements of regulation 34 in Part E will be met if the spread of flame over the internal linings of a building is restricted by making provision for them to have low rates of surface spread of flame, and in some cases to have a low rate of heat release, so as to limit the contribution that the fabric of the building makes to fire growth. In relation to the European fire tests and classification system, the requirements of regulation 34 in Part E will be met if the heat released from the internal linings is restricted by making provision for them to have a resistance to ignition and a rate of fire growth which are reasonable in the circumstances.

The extent to which this is necessary is dependent on the location of the linings.

Introduction to provisions in Section 3

0.10The materials used for the linings of walls and ceilings in a building can significantly affect the spread of fire and its rate of growth. The guidance in Section 3 restricts the spread of fire over internal linings by ensuring they have low rates of surface spread of flame. In some locations the internal linings must also have a low rate of heat production so as to limit the contribution that the fabric of the building makes to fire growth.

There are no provisions in relation to the upper surfaces of floors and stairs because such surfaces are not involved significantly in a fire until it is well developed. They do not therefore play an important part in fire spread during the early stages of a fire, which are the most relevant to the life safety of occupants.

Although furniture and fittings can have a major effect on fire spread it is not possible to control them through Building Regulations, and no provisions relating to them are included in this Technical Booklet. The fire characteristics of furniture and fittings may be controlled in some buildings under other legislation which applies to those buildings when in use.

Internal fire spread – Structure

Performance

0.11It is the view of the Department that the requirements of regulation 35 in Part E will be met –

(a)if the loadbearing elements of structure of a building are capable of withstanding the effects of fire for an appropriate period without loss of stability;

(b)if a building is subdivided by elements of fireresisting construction into compartments;

(c)if any openings in fireseparating elements are suitably protected in order to maintain the integrity of the element (i.e. the continuity of the fire separation); and

Source page 15

(d)if any hidden voids in the construction are sealed and subdivided to inhibit the unseen spread of fire and products of combustion, in order to reduce the risk of structural failure, and the spread of fire, in so far as they pose a threat to the safety of people in and around the building.

The extent to which any of these measures are necessary is dependent on the use of the building, in some cases its size, and on the location of the element of construction.

Introduction to provisions in Section 4

0.12The guidance in Section 4 is concerned with the spread of fire within a building. This can be restricted by the provision of structural measures such as fireresisting elements of construction, compartmentation, cavity barriers and firestopping.

Fireresisting elements of construction – the objective of providing the elements of structure and certain other components of the building with a minimum standard of fire resistance is to minimise the risk to the occupants whilst evacuating, to the firefighting personnel whilst engaged in search and rescue operations and to people in the vicinity of the building who may be hurt by falling debris or as a result of the impact of the collapsing building on another building.

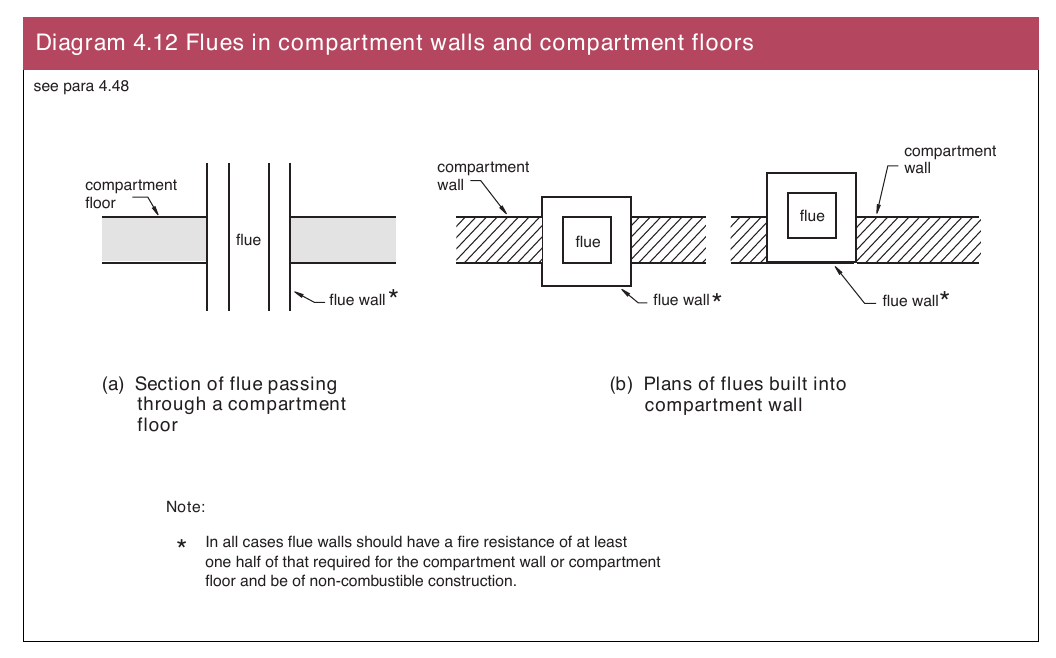

Compartmentation – the spread of fire within a building can be restricted by subdividing it into compartments separated from one another by walls and/or floors of fireresisting construction. The objectives are to prevent rapid fire spread, which could trap occupants of the building, and to reduce the chance of a fire becoming large, on the basis that a large fire is more dangerous, not only to occupants and firefighting personnel, but to people in the vicinity of the building.

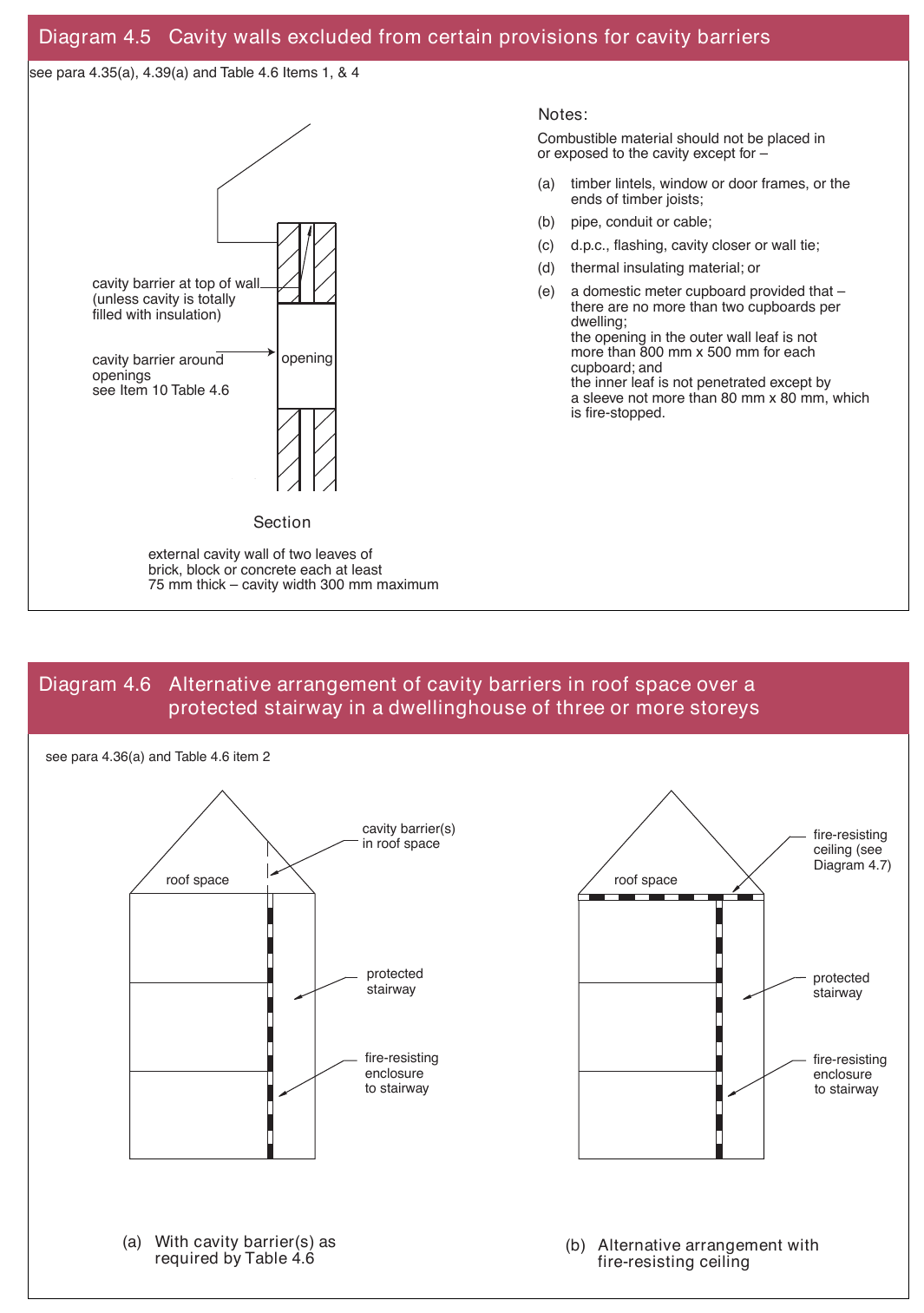

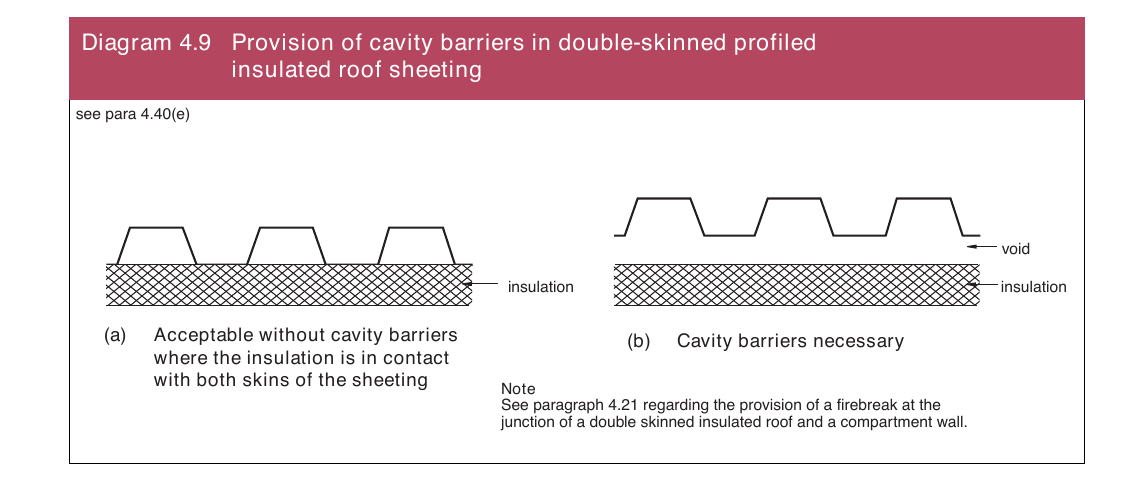

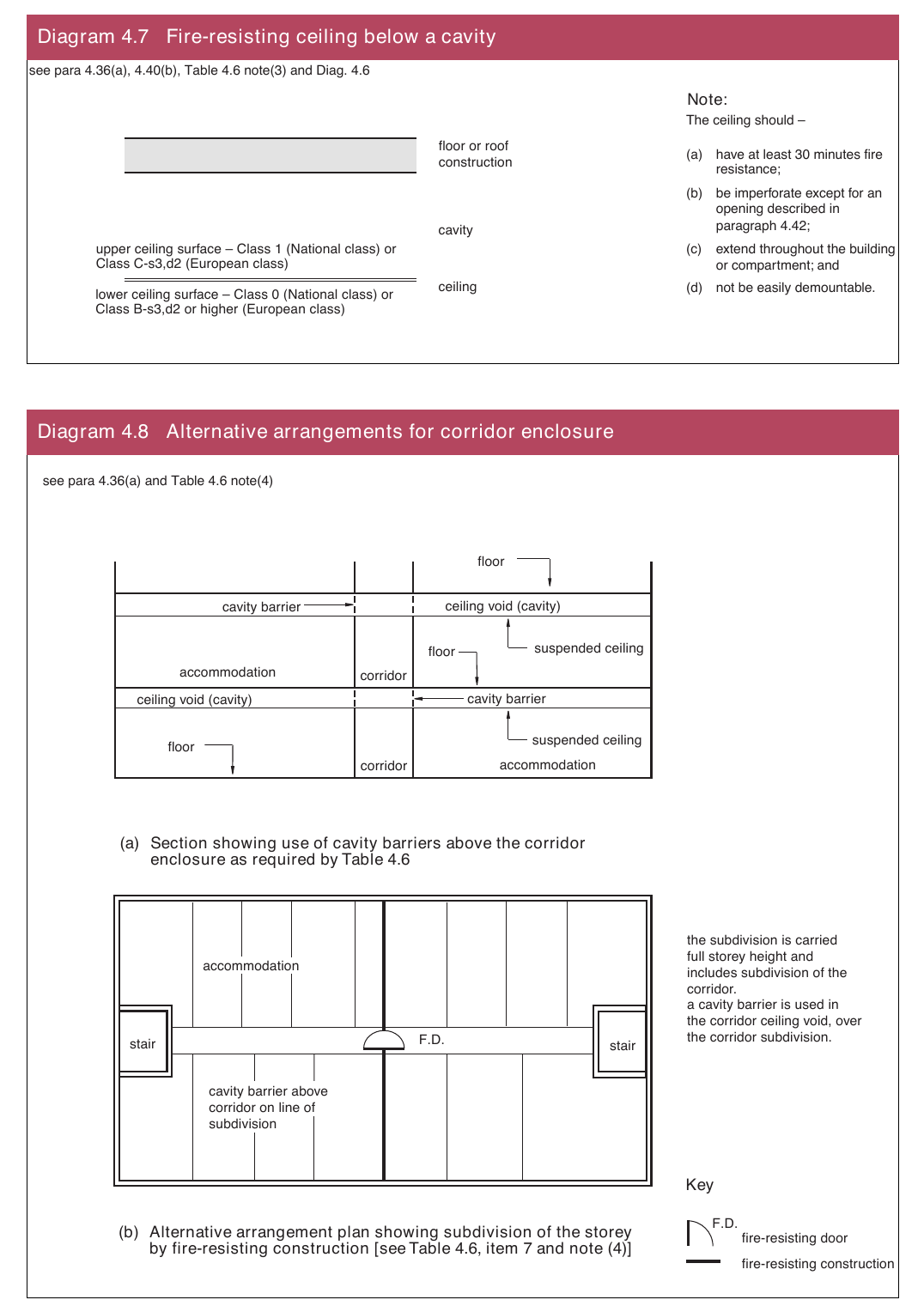

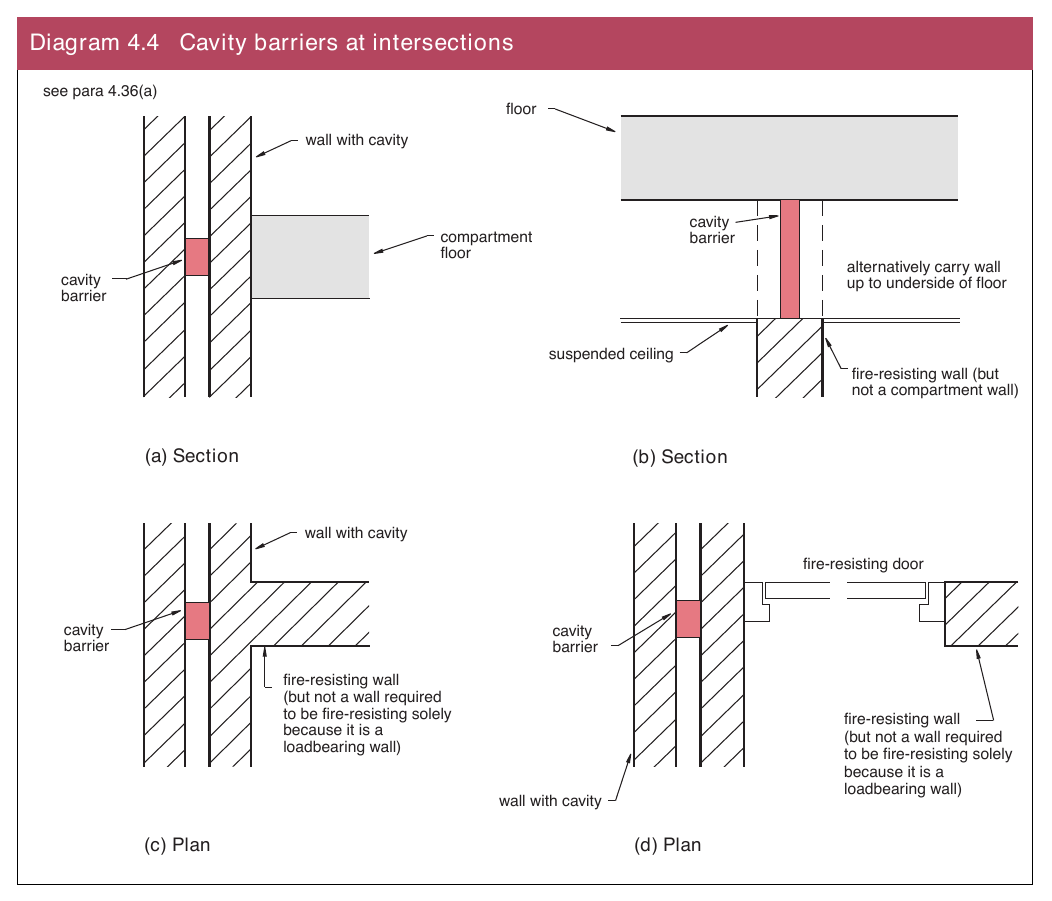

Cavity barriers – concealed and extensive spaces within construction provide a ready route for the hidden spread of smoke and flame. The objectives of cavity barriers are to limit the extent of such spaces and to subdivide them where they would otherwise form a pathway around fire resisting construction.

Protection of penetrations – in order that the fire integrity of elements of structure intended to provide fire separation is maintained, penetrations of such construction, by pipes, ducts, cables, etc. must be suitably protected.

Firestopping – the objective of firestopping is to adequately seal or protect every joint, imperfection of fit, opening and penetration in an element of structure intended to provide fire separation, so that its effectiveness is not impaired.

This Section also contains guidance relating to car parks for light vehicles. In buildings or separated parts of buildings used as parking for cars and other light vehicles the fire load is well defined and not particularly high. Fire spread is not likely to occur between one vehicle and another. Where the car park is well ventilated (so that heat and smoke can dissipate readily) there is a low probability of fire spread from one storey to another.

Source page 16

Performance

0.13It is the view of the Department that the requirements of regulation 36 in Part E will be met –

(a)if the external walls are constructed so that the risk of ignition from an external source, and the spread of fire over their surfaces, is restricted by making provision for them to have low rates of heat release;

(b)if the amount of unprotected area in the side of a building is restricted so as to limit the amount of thermal radiation that can pass through the wall, taking the distance between the wall and the boundary into account; and

(c)if the roof is constructed so that the risk of spread of flame and/or fire penetration from an external fire source is restricted,

in each case so as to limit the risk of a fire spreading from the building to another building beyond the boundary, or vice versa.

The extent to which this is necessary is dependent on the use of the building, its distance from the boundary and, in some cases, its height.

Introduction to provisions in Section 5

0.14The guidance in Section 5 which relates to the extent to which fire may spread over and between buildings depends on the size and intensity of the fire, the construction of the external walls and roof, and the distance between the buildings.

Construction of walls – the fire resistance of an external wall and the combustibility of its external face are controlled to reduce its susceptibility to ignition from an external source and the danger from fire spreading up the external face of the building.

Construction of roofs – the combustibility of the external surface of a roof is controlled to reduce its susceptibility to ignition from an external source.

Distance between buildings – adequate separation between buildings is achieved by relating the amount of unprotected area (e.g. windows, areas of combustible wall, etc.) in the wall of a building or compartment to the distance that wall is from its relevant boundary. It may be advantageous to reduce compartment sizes or to provide compartmentation where none would otherwise be necessary, as this will reduce the size of the fire and may permit a reduced boundary distance or alternatively, an increase in unprotected area.

Source page 17

Performance

0.15It is the view of the Department that the requirements of regulation 37 in Part E will be met –

(a)if there is sufficient means of external access to enable fire appliances to be brought near to a building for effective use;

(b)if there is sufficient means of access into, and within, a building for firefighting personnel to effect search and rescue and fight fire;

(c)if a building is provided with sufficient internal fire mains and other facilities to assist firefighters in their tasks; and

(d)if a building is provided with adequate means for venting heat and smoke from a fire in a basement.

These access arrangements and facilities are only required in the interests of the health and safety of people in and around the building. The extent to which they are required will depend on the use and size of the building in so far as it affects the health and safety of those people.

Introduction to provisions in Section 6

0.16The guidance in Section 6 relating to facilities and access is for the purposes of assisting the Fire and Rescue Service to ensure the safety of people in and around a building.

Generally in small buildings the combination of the access offered by the normal means of access and egress, and the ability of the Fire and Rescue Service to work from ladders and appliances are sufficient without special access or internal facilities. However, in large buildings and buildings with basements the Fire and Rescue Service will invariably work inside the building and firefighting shafts, fire mains, venting of basements and access will be necessary.

Firefighting shafts – the provisions are to ensure that the Fire and Rescue Service will have a secure operating base on every storey of large buildings.

Fire mains – the purpose of a fire main within a firefighting shaft is to enable firefighters to connect hoses and receive a supply of water for firefighting and rescue activities.

Access – the provisions relating to vehicle access are to enable the Fire and Rescue Service’s pumping appliances to supply water to the fire mains and for high reach appliances to be deployed.

Venting of basements – the enclosed nature of a basement prevents the dispersal of heat and smoke, which tend to rise up the access that the Fire and Rescue Service may be using to approach the fire. The provisions for smoke removal facilities are to enable firefighters to more effectively search for and rescue any people who may be trapped, and to locate and attack the fire.

Source page 18

Relationship between Sections

0.17The guidance set out in this Technical Booklet under Sections 2 to 6 deals with different aspects of fire safety. Whilst the guidance appropriate to each of these aspects is set out separately, many of the provisions are closely interlinked. For example, there is a close link between the provisions for means of escape (Section 2) and those for the control of fire growth (Section 3), fire containment (Section 4) and facilities for the Fire and Rescue Service (Section 6). Similarly, there are links between Section 4 and the provisions for controlling external fire spread (Section 5), and between Section 4 and Section 6. Interaction between these different provisions should be recognised when considering alternative solutions, as the adoption of a higher standard of provision in respect of one aspect may be of benefit in respect to the provisions relating to one or more other aspects. Thus the provisions in the Technical Booklet as a whole should be considered as a package aimed at achieving an acceptable standard of fire safety.

Provisions common to more than one Section

0.18Within this Technical Booklet there are a number of matters which are relevant to more than one Section. Generally these have been located in the most appropriate Section and cross referenced where necessary. However, definitions, the classification of purpose groups and the methods for measurement are needed for all Sections. These have been drawn together for common reference in Section 1, Appendix A and Appendix B respectively.

Source page 19

Section 1 General

Definitions

1.1In this Technical Booklet the following definitions apply –

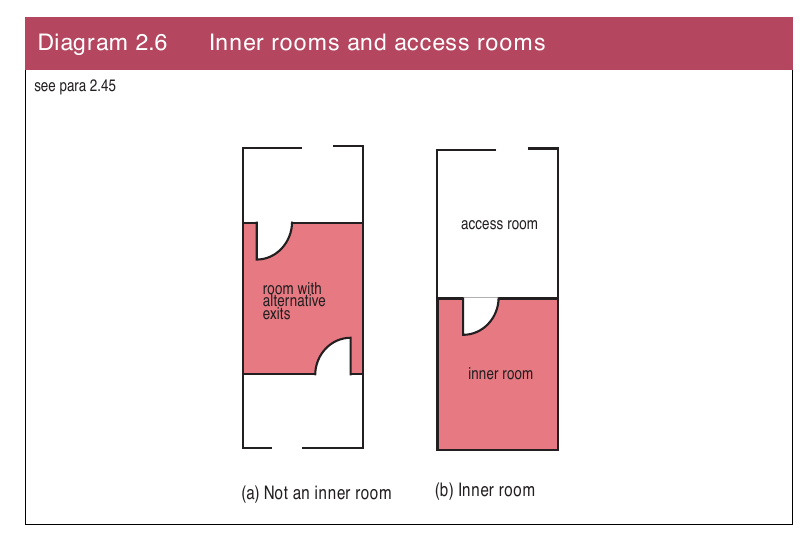

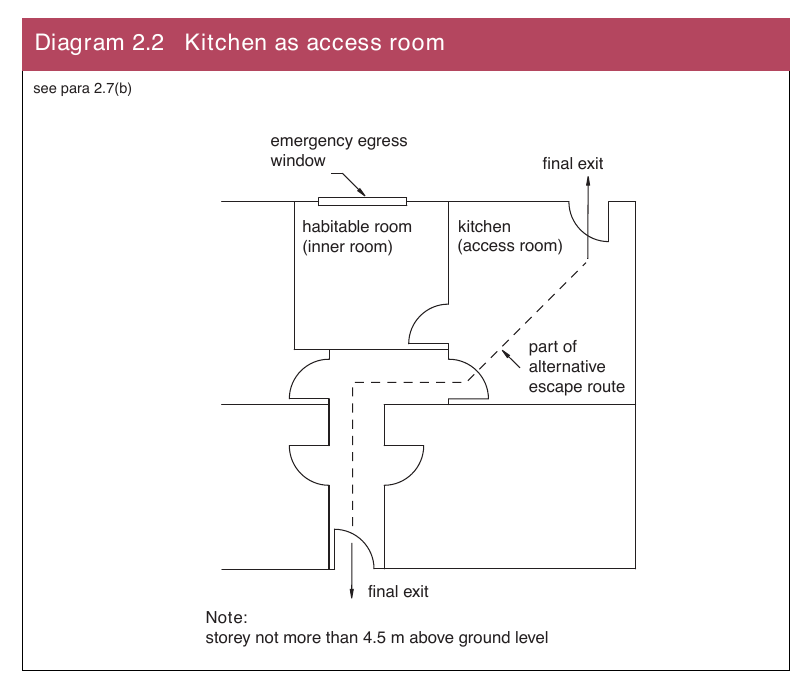

Access room – a room that forms the only escape route from an inner room.

Accommodation stairway – a stairway, additional to that or those required for escape purposes, provided for the convenience of occupants.

Alternative escape routes – escape routes sufficiently separated by either direction and space, or by fireresisting construction, to ensure that one is still available should the other be affected by fire.

Alternative exit – one of two or more exits, each of which is separate from the other.

Appliance ventilation duct – a duct provided to convey combustion air to a gas appliance.

Atrium (plural atria) – a space within a building not necessarily vertically aligned, passing through one or more structural floors. (The term does not include enclosed lift wells, enclosed escalator wells, building services ducts and stairways.)

Automatic fire detection and alarm system – a system incorporating smoke detectors, sounders, control equipment, protected wiring and a backup power supply which is capable of automatically detecting smoke and thereupon giving an audible alarm.

Automatic release mechanism – a device which will allow a door held open by it to close automatically in the event of each or any one of the following –

(a)detection of smoke by automatic apparatus suitable in nature, quality and location;

(b)operation of a hand operated switch fitted in a suitable position;

(c)failure of electricity supply to the device, apparatus or switch; and

(d)operation of the fire alarm system where fitted.

Automatic selfclosing device – a device which is capable of closing a door from any angle and against any latch fitted to the door. [The term does not include rising butt hinges unless the door is –

(a)to (or within) a dwelling;

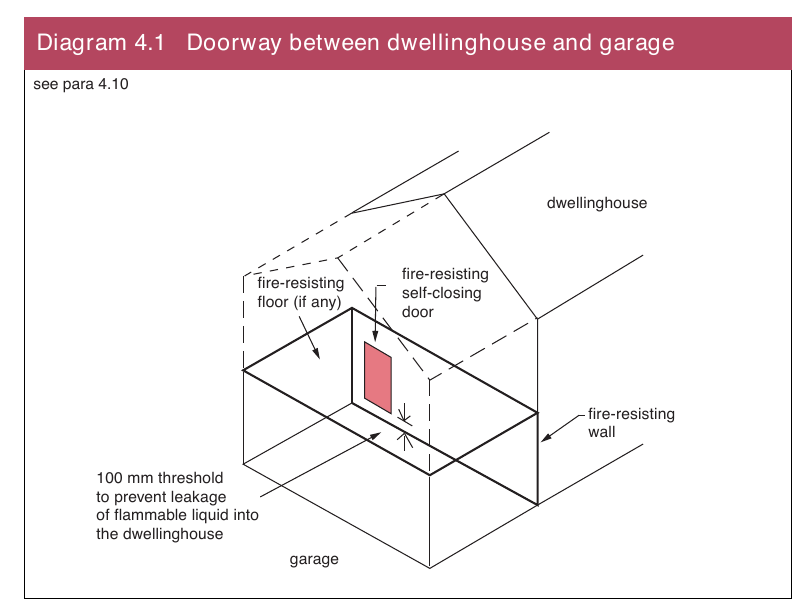

(b)between a dwellinghouse and its garage; or

(c)in a cavity barrier.]

Basement storey – a storey with a floor which at some point is more than

1.2m below the highest level of ground adjacent to the outside walls.

Source page 20

Cavity barrier – a construction provided to close a concealed space against penetration of smoke or flame, or provided to restrict the movement of smoke or flame within such a space.

Ceiling – a part of a building which encloses and is exposed overhead in a room, protected shaft or circulation space. (The soffit of a rooflight, but not the frame is included as part of the ceiling surface. An upstand below a rooflight should be considered as wall.)

Circulation space – a space (including a protected stairway) mainly used as a means of access between a room and an exit from the building or compartment.

Class 0 – a product performance classification for wall and ceiling linings. The relevant test criteria are set out in paragraph 3.4.

Compartment – a building or part of a building, comprising one or more rooms, spaces or storeys, constructed to prevent the spread of fire to or from another part of the same building, or an adjoining building. A roof space above the top storey of a compartment is included in that compartment.

Compartment floor – a fireresisting floor used in the separation of one compartment from another.

Compartment wall – a fireresisting wall used in the separation of one compartment from another.

Concealed space or cavity – a space enclosed by elements of a building (including a suspended ceiling) or contained within an element, but not a room, cupboard, circulation space, protected shaft or space within a flue, chute, duct, pipe or conduit.

Dead end – area from which escape is possible in one direction only.

Direct distance – the shortest distance from any point within the floor area to the nearest storey exit, measured within the external enclosures of the building, ignoring walls, partitions and fittings, other than the enclosing walls/partitions to protected stairways.

Dwelling – has the meaning assigned to it by regulation 32 in Part E of the Building Regulations.

Dwellinghouse – has the meaning assigned to it by regulation 32 in Part E of the Building Regulations.

Element of structure –

(a)a member forming part of the structural frame of a building or any other beam or column;

(b)a loadbearing wall or loadbearing part of a wall;

(c)a floor;

(d)a gallery (but not a loading gallery, fly gallery, stage grid, lighting bridge, or any gallery provided for similar purposes or for maintenance and repair);

(e)an external wall; and

Source page 21

(f)a compartment wall (including a wall common to two or more buildings).

(However, see paragraph 4.11 for exclusions from the provisions for elements of structure.)

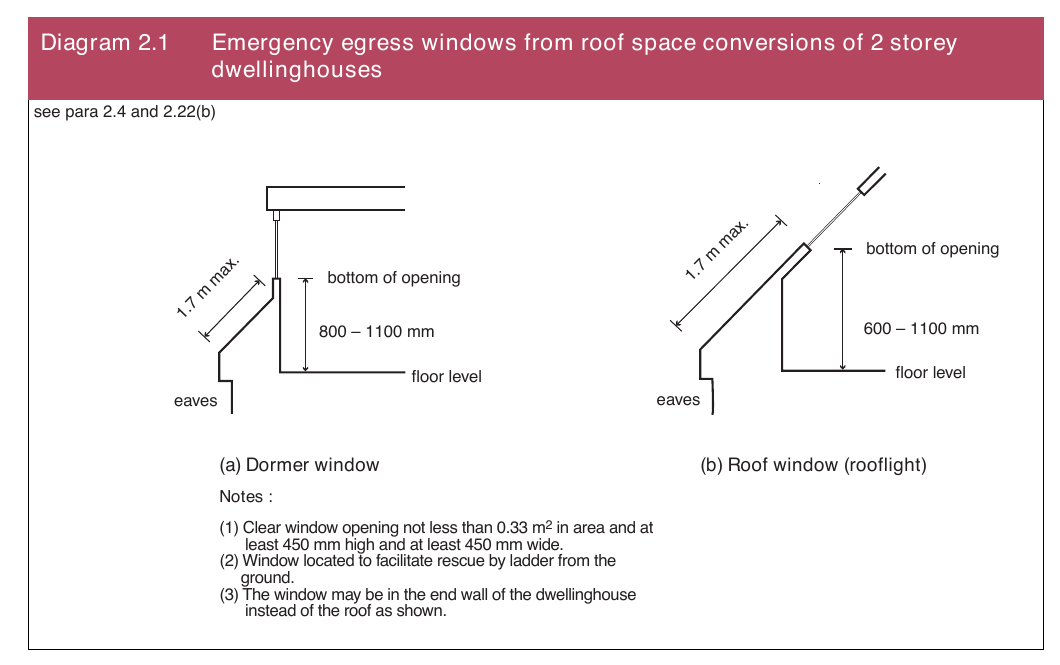

Emergency egress window – an openable window in a dwelling that may be used for emergency egress in order to avoid entrapment should the escape route or routes be blocked by fire or smoke.

Emergency lighting – lighting provided for use when the electricity supply to the normal lighting fails.

Escape lighting – that part of the emergency lighting which is provided to ensure that the escape route is illuminated at all material times.

Escape route – route forming that part of the means of escape from any point in a building to a final exit.

Evacuation lift – a lift that may be used for the evacuation of people in the event of a fire.

External wall (or side of a building) – includes a part of a roof pitched at an angle of more than 70° to the horizontal, if that part of the roof adjoins a space within the building to which persons have access (but not access only for repair or maintenance).

Final exit – the termination of an escape route from a building giving direct access to a street, passageway, walkway or open space, and sited to ensure the rapid dispersal of people from the vicinity of a building so that they are no longer in danger from fire or smoke or both. (A window is not acceptable as a final exit.)

Fire door – a door or shutter, provided for the passage of people, air or objects, which together with its frame and furniture as installed in a building, is intended (when closed) to resist the passage of fire or gaseous products of combustion or both, and is capable of meeting specified performance criteria to those ends. (It may have one or more leaves, and the term includes a cover or other form of protection to an opening in a fireresisting wall or floor, or in a structure surrounding a protected shaft.)

Fireresisting (fire resistance) – the ability of a component or construction of a building to satisfy for a stated period of time, some or all of the appropriate criteria specified in the relevant Part of BS 476.

Fire separating element – a compartment wall, compartment floor, cavity barrier and construction enclosing a protected shaft, protected escape route and a place of special fire hazard.

Fire stop – a seal provided to close an imperfection of fit or design tolerance between elements or components, to restrict or prevent the passage of fire and smoke.

Firefighting lift – a lift designed to have additional protection, with controls that enable it to be used under the direct control of the Fire and Rescue Service when fighting a fire.

Source page 22

Firefighting lobby – a protected lobby for providing access from a firefighting stairway to the accommodation area and to any associated firefighting lift.

Firefighting shaft – a protected enclosure containing a firefighting stairway, firefighting lobbies and, if provided, a firefighting lift together with its machinery.

Firefighting stairway – a protected stairway communicating with the accommodation area only through a firefighting lobby.

Flat – has the meaning assigned to it by regulation 32 in Part E of the Building Regulations.

Gallery – a floor, including a raised storage area, which is less than onehalf of the floor area of the space into which it projects and is open both above and below to that space.

Hallway (Hall) – a circulation space inside the entrance to a dwelling used solely to give access to rooms and, where provided, a stairway.

Heat alarm – a device containing within one housing all the components, except possibly the energy source, necessary for detecting heat and giving an audible alarm.

Inner room – a room from which escape is possible only by passing through another room (access room).

Internal linings – has the meaning assigned to it by regulation 32 in Part E of the Building Regulations.

Materials of limited combustibility – materials which comply with paragraph 1.9 or 1.10.

Means of escape – has the meaning assigned to it by regulation 32 in Part E of the Building Regulations.

Measurement –

(a)the rules for measuring area, cubic capacity, number of storeys, height of a building and height to a storey are given in paragraph B.1; and

(b)the methods for measuring occupant capacity, travel distance, and the width of a doorway, escape route and stairway are given in Section 2.

Noncombustible material – a material which complies with paragraph 1.7 or 1.8.

Notional boundary – a boundary presumed to exist between buildings on the same site (see paragraph 5.9).

Open spatial planning – the internal arrangement of a building in which more than one storey or level is contained in one undivided volume, e.g. splitlevel floors and galleries. For the purposes of this Technical Booklet there is a distinction between open spatial planning and an atrium space.

Perimeter (of building) – the maximum aggregate plan perimeter excluding any wall separating buildings, found by vertical projection onto a horizontal plane.

Source page 23

Pipe – (for the purposes of Section 4) includes pipe fittings and accessories; and excludes a flue pipe and a pipe used for ventilating purposes (other than a ventilating pipe for an above ground drainage system).

Place of safety – has the meaning assigned to it by regulation 32 in Part E of the Building Regulations.

Places of special fire hazard – oilfilled transformer and switchgear rooms, boiler rooms, storage space for fuel or other highly flammable substances and rooms housing a fixed internal combustion engine. Additionally in schools – laboratories, technology rooms with open heat sources, kitchens and stores for PE mats (including landing mats and crash mats) or chemicals.

Platform floor (access or raised floor) – a floor supported by a structural floor, but with an intervening concealed space which is intended to house services.

Pressurization – a method of protecting escape routes against the ingress of smoke by maintaining the air within them at pressures higher than those in adjacent parts of the building.

Principal habitable room – the habitable room in a dwelling that is normally the most frequently used room for general daytime living purposes.

Protected circuit – an electrical circuit protected against fire.

Protected corridor or lobby – a corridor or lobby which is adequately protected from fire in adjoining accommodation by fireresisting construction.

Protected entrance hall or landing – a circulation area consisting of a hall or space within a dwelling, enclosed with fireresisting construction (other than any part which is an external wall or building).

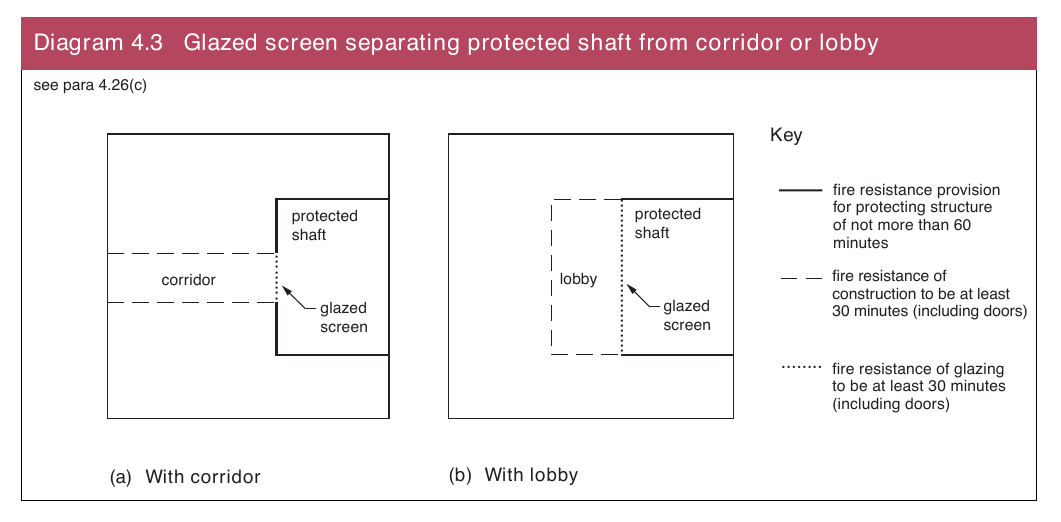

Protected shaft – a shaft which enables people, air or objects to pass from one compartment to another, and which is enclosed with fireresisting construction.

Protected stairway – a stairway discharging through a final exit to a place of safety (including any exit passageway between the foot of the stair and the final exit) that is adequately enclosed with fireresisting construction.

Purpose group – a classification of buildings or compartments according to the purpose to which they are intended to be put (see paragraph A.2).

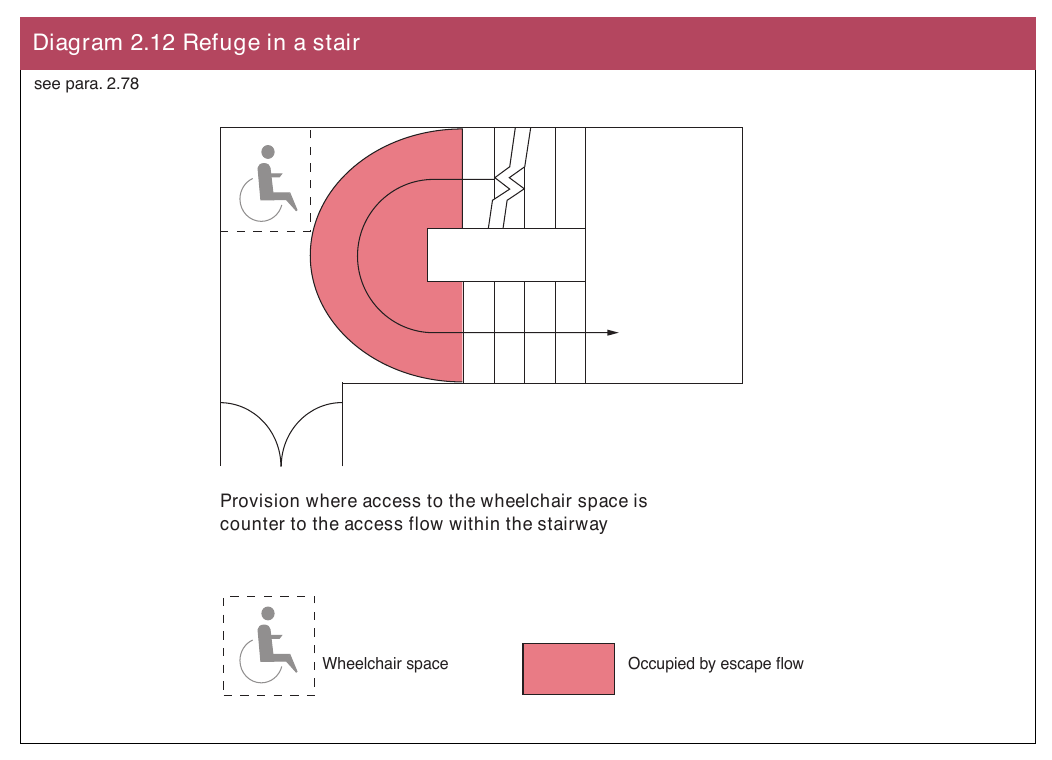

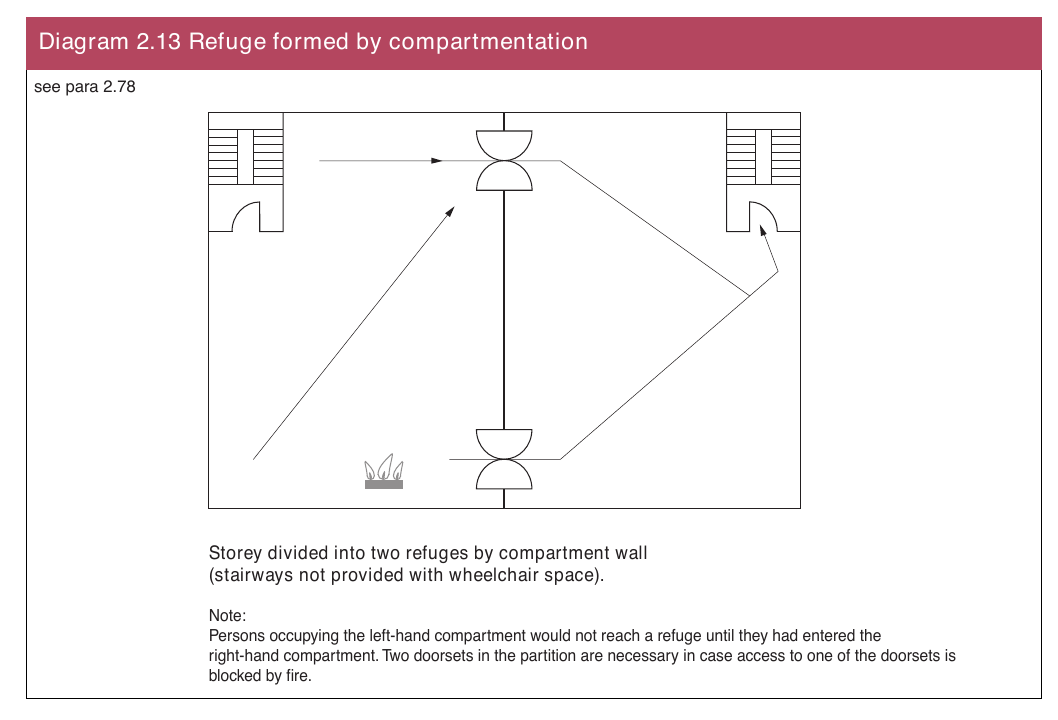

Refuge – an area that is adequately protected from fire in adjoining accommodation by fireresisting construction and which is served directly by a safe route to a storey exit, thus constituting a temporarily safe place for people to use as part of their personal emergency evacuation plan.

Relevant boundary – the boundary which the side of the building faces, (and/or coincides with) and which is parallel, or at an angle of not more than 80°, to the side of the building. A notional boundary can be a relevant boundary.

Rooflight – a domelight, lantern light, skylight, ridge light, glazed barrel vault or other element intended to admit daylight through a roof.

Source page 24

Room – (for the purposes of Section 3) an enclosed space within a building that is not used solely as a circulation space. (The term includes not only conventional rooms, but also cupboards that are not fittings, and large spaces such as warehouses, and auditoria. The term does not include voids such as ducts, ceiling voids and roof spaces.)

Separated part (of a building) – a form of compartmentation in which a part of a building is separated from another part of the same building by a compartment wall. The wall runs the full height of the part, and is in one vertical plane.

Single storey building – a building consisting only of a ground storey and any basement storeys. (A separated part which consists of a ground storey only, with a roof to which access is only provided for repair or maintenance, may be treated as a single storey building.)

Smoke alarm – a device containing within one housing all the components, except possibly the energy source, necessary for detecting smoke and giving an audible alarm.

Storey exit – a final exit, or a doorway giving direct access into a protected stairway, firefighting lobby, or external escape route. (In some circumstances a door in a compartment wall may be considered as a storey exit, e.g. in a building designed for progressive horizontal evacuation.)

Storey – includes –

(a)in a building of Purpose Group 5 – a gallery [other than the exceptions given in paragraph B.1(c)]; and

(b)in a building of any purpose group – a roof which is accessible unless it is accessible only for maintenance and repair.

Suspended ceiling (fireprotecting) – a ceiling suspended below a floor, which contributes to the fire resistance of the floor.

Thermoplastic material – a synthetic polymeric material which can be classified in accordance with paragraph 3.4 or 3.5.

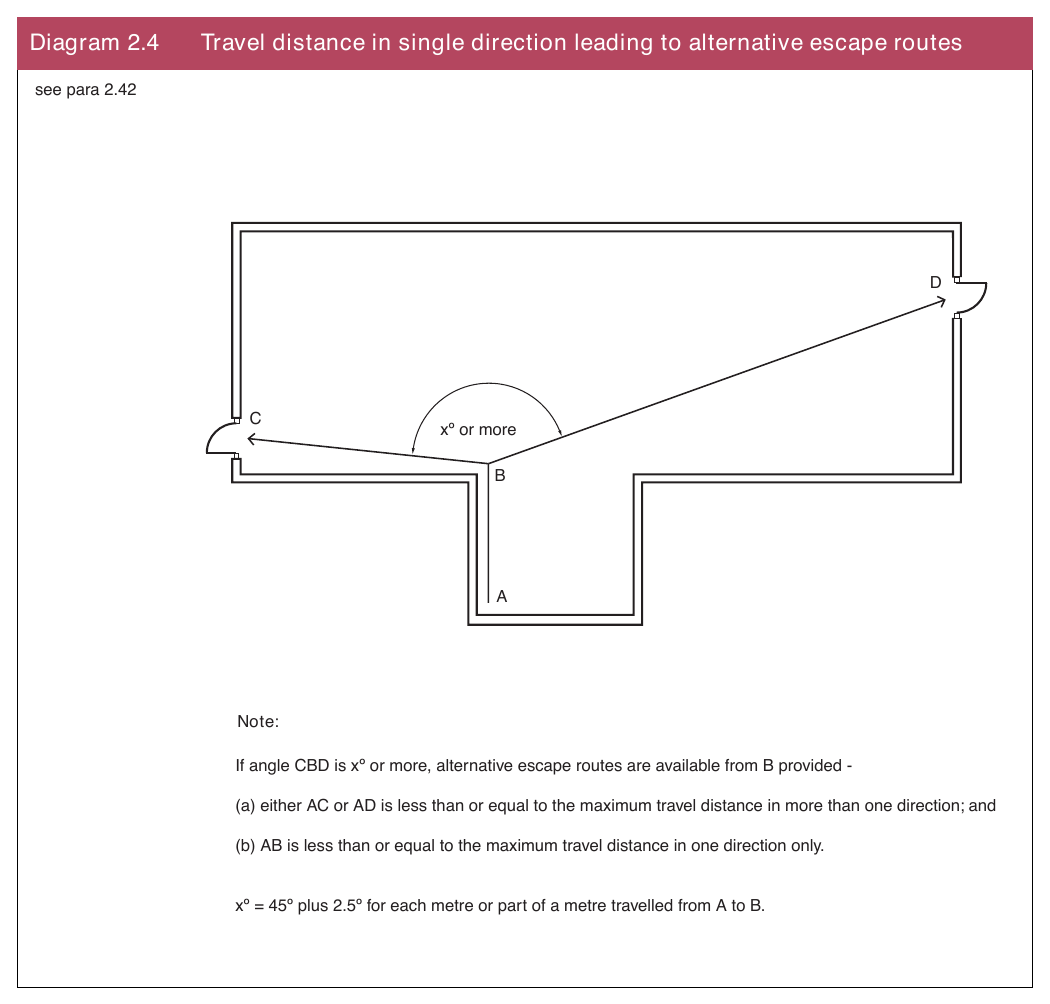

Travel distance – the actual distance to be travelled by a person from any point within the floor area to the nearest storey exit, having regard to the layout of walls, partitions and fittings.

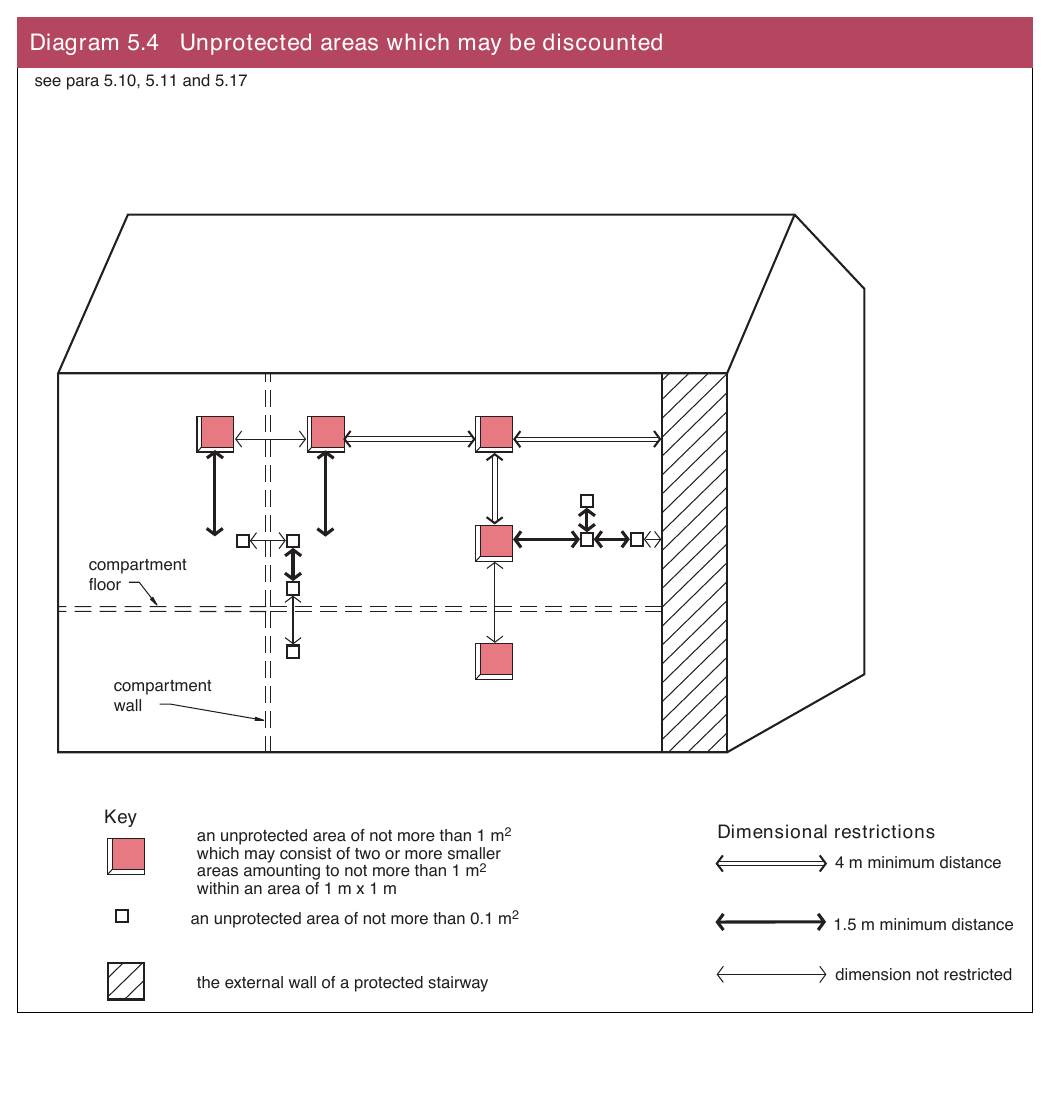

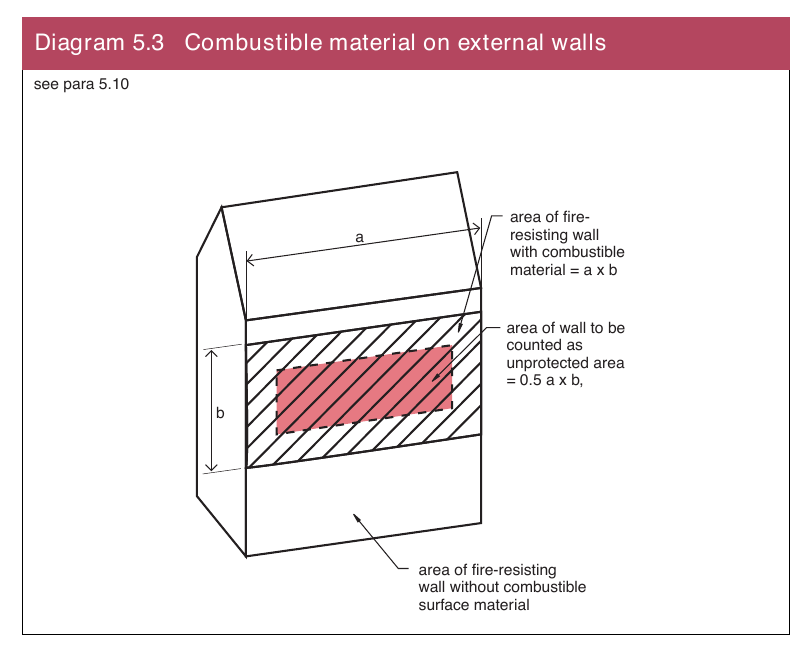

Unprotected area – in relation to a side or external wall of a building means –

(a)a window, door or other opening;

(b)any part of the external wall which has less than the relevant fire resistance set out in Table 4.1; and

(c)any part of the external wall which has combustible material more than 1 mm thick attached or applied to its external face, whether for cladding or any other purpose.

Wall – for the purposes of Section 3 see paragraph 3.9.

Source page 25

Buildings containing atria

1.2For the purposes of this Technical Booklet the use of BS 55887 is relevant only where the atrium breaches compartmentation.

Inclusive design

1.3The fire safety aspects of the Building Regulations are made for securing reasonable standards of health and safety of people in and about buildings. This is intended to include all people, including people with disabilities.

People, regardless of disability or age should be able to gain access to buildings and use their facilities, both as visitors and as people who live or work in them. Part R of the Building Regulations requires reasonable provision in this respect. As such the fire safety measures incorporated into a building will need to take account of the needs of all those people who may have access to the building. It is not appropriate, except in exceptional circumstances, to presume that certain groups of people will be excluded from a building because of its use.

The provisions set out in this Technical Booklet are considered to be a reasonable standard for most buildings. However, there may be some people whose specific needs are not addressed. In some situations additional fire safety measures may be needed to accommodate these needs. Such measures should be considered on a case by case basis.

Fire safety management

1.4The provisions of this Technical Booklet have been written on the assumption that fire safety in the building concerned will be adequately managed.

Fire safety management is controlled by other legislation such as the Fire and Rescue Services (Northern Ireland) Order 2006 and the associated Fire Safety Regulations (Northern Ireland) 2010 for workplaces deemed to be relevant premises.

Fire Safety in Protected buildings

1.5Some variation of the provisions set out in this booklet may be appropriate where Part E applies to protected buildings, where adherence to the guidance in this booklet might prove to be unduly restrictive. In such cases it would be appropriate to take into account a range of fire safety features, some of which are contained in this booklet and some of which are not addressed in any detail and to set these against an assessment of the hazards and risks peculiar to the particular case.

Source page 26

1.6Building Regulations are intended to ensure that an adequate standard of life safety is provided in case of fire. The protection of property, including the building itself, may require additional measures and insurers will in general seek their own measures if they are to accept the insurance risk. Such measures (e.g. locking doors on escape routes) must not negate or reduce the level of protection or performance of any provision in this Technical Booklet.

Noncombustible materials

1.7A noncombustible material is under National classification –

(a)a material classified as noncombustible when tested in accordance with BS 476: Part 4;

(b)a material which when tested in accordance with BS 476: Part 11 does not flame and does not cause a rise in temperature on either the centre (specimen) thermocouple or the furnace thermocouple;

(c)a material which is either totally inorganic or does not contain more than 1% by weight or volume, of organic material; or

(d)concrete bricks or blocks meeting BS EN 7713.

1.8A noncombustible material is under European classification –

(a)a material classified as Class A1 in accordance with BS EN 135011 Fire classification of construction products and building elements – Part 1: Classification using test data from reaction to fire tests, when tested to –

(i)BS EN ISO 1182 Reaction to fire tests for building products – Noncombustibility test; and

(ii)BS EN ISO 1716 Reaction to fire tests for building products – Determination of the heat of combustion; or

(b)a product made from one or more of the materials considered as Class A1 without the need for testing, as defined in Commission Decision 96/603/EC of 4th October 1996 establishing the list of products belonging to class A1 ‘No contribution to fire’ provided for in the Decision 94/611/EC implementing Article 20 of the Council Directive 89/106/EEC on construction products. None of the materials should contain more than 1.0% by weight or volume (whichever is lower) of homogeneously distributed organic material.

Source page 27

1.9

A material of limited combustibility is under National classification –

(a)a material which can be classified as noncombustible under paragraphs 1.7(a) to (d);

(b)a material with a noncombustible core not less than 8 mm thick having combustible facings (on one or both sides) not more than

0.5mm thick;

(c)a material of density not less than 300 kg/m3 which, when tested in accordance with BS 476: Part 11, does not flame or increase the temperature on the furnace thermocouple by more than 20°C; or

(d)in the case of insulation referred to in Table 4.3 and paragraph 5.4 a material of density less than 300 kg/m3 which, when tested in accordance with BS 476: Part 11 does not flame for more than 10 seconds and the rise in temperature is not more than 35°C on the centre (specimen) thermocouple and not more than 25°C on the furnace thermocouple.

1.10A material of limited combustibility is under European classification –

(a)any material or product classified as noncombustible under paragraph 1.8(a) or (b); or

(b)a material or product classified as Class A2s3,d2 or higher in accordance with BS EN 135011 Fire classification of construction products and building elements – Part 1: Classification using test data from reaction to fire tests when tested to –

(i)BS EN ISO 1182 Reaction to fire tests for building products – Noncombustibility test; or

(ii)BS EN ISO 1716 Reaction to fire tests for building products – Determination of the heat of combustion, and BS EN 13823 Reaction to fire tests for building products – Building products excluding floorings exposed to the thermal attack by a single burning item,

where a classification includes ‘s3,d2’ this means that there is no limit set for smoke production and/or flaming droplets/particles.

Classification

1.11National classifications do not automatically equate with the equivalent European classifications therefore products cannot typically assume a European class unless they have been tested accordingly.

Source page 28

Riskbased design using BS 9999

1.12BS 9999 Code of practice for fire safety in the design, management and use of buildings gives flexibility to fire safety design through the use of a structured approach to riskbased design, where designers can take account of varing physical and human factors. Within its scope, this document may be used as an alternative approach to following the relevant methods and standards set out in this booklet.

Where designers elect to use BS 9999 in this manner they will need to demonstrate that the relevant requirements of Part E have been met.

Fire safety engineering

1.13A fire safety engineering approach which takes into account the total fire safety package within a building may provide an adequate level of fire safety. Indeed, it may be the only viable approach to the achievement of a satisfactory standard in some large and complex buildings but it is beyond the scope of this Technical Booklet. Fire safety engineering may also be suitable for solving a problem with an aspect of the building design which otherwise follows the provisions in this booklet.

BS 7974 Fire safety engineering in buildings and supporting published documents provide a framework and guidance on the design and assessment of fire safety measures in buildings. Following the discipline of BS 7974 should enable designers and building control officers to be aware of the relevant issues, the need to consider the complete fire safety system and to follow a disciplined analytical framework.

Where designers elect to use a fire engineered approach they will need to demonstrate that the relevant requirements of Part E have been met.

Source page 29

Section 2 Means of escape

2.1The provisions in this Section have been formulated using assumptions regarding the likely source and growth of a fire and are based on recognised criteria for means of escape. These assumptions and criteria are outlined in paragraph 0.18.

The provisions are divided into –

(a)those applying to dwellinghouses – paragraphs 2.2 to 2.33;

(b)those applying to flats – paragraphs 2.34 to 2.36;

(c)those applying to all types of buildings other than dwellings –

(i)the horizontal part of the escape route – paragraphs 2.40 to 2.59; and

(ii)the vertical part of the escape route – paragraphs 2.60 to 2.83; and

(d)general provisions applying to dwellinghouses and all other types of buildings except flats – paragraphs 2.84 to 2.103.

Dwellinghouses

Introduction

2.2The provisions for means of escape in typical one and two storey dwellinghouses (i.e. those with no storey more than 4.5 m above ground level) are limited to the common provisions given in paragraphs 2.4 to 2.11.

With increasing height, provisions additional to the common provisions are necessary, as stairs may become impassable before evacuation is complete and the use of emergency egress windows becomes increasingly hazardous. The additional provisions are given in paragraphs 2.12 to 2.16.

Where an external escape route is provided the provisions contained in paragraphs 2.58, 2.59 and 2.76 should also apply.

2.3The provisions for automatic fire detection and warning are given in paragraphs 2.23 to 2.33. The installation of smoke and heat alarms or automatic fire detection and alarm systems can significantly increase the level of safety by automatically giving early warning of fire.

Common provisions

2.4Every storey (including a basement storey) in a dwellinghouse which does not have alternative escape routes leading to their own exits should have an emergency egress window for escape or rescue purposes.

An emergency egress window that serves a storey should –

(a)where the storey is an upper storey – be located to facilitate rescue by ladder from the ground;

Source page 30

(b)where it is a dormer or roof window – be positioned as shown on Diagram 2.1;

(c)be located remote from the escape route; and

(d)comply with paragraph 2.9.

Where a basement storey contains a habitable room and does not have alternative escape routes it should be served by a protected stairway that extends to a final exit.

2.5Every habitable room, on an upper storey not more than 4.5 m above ground level that does not have alternative escape routes, should have an emergency egress window complying with paragraph 2.9 for escape purposes.

However, an emergency egress window may serve two such habitable rooms provided that –

(a)both rooms have their own access to the stairway enclosure; and

(b)it is possible to gain access, via a communicating door between the rooms, to the window without passing through the stairway enclosure.

2.6A habitable room should open directly onto a hallway (including a corridor or landing leading to the hallway) which leads to the entrance without passing through any room (except a porch), other than where the habitable room –

(a)has an alternative escape route;

(b)is on a storey not more than 4.5 m above ground level and the habitable room has an emergency egress window complying with paragraph 2.9; or

(c)is part of a roof space conversion which complies with paragraphs

2.17to 2.22.

Diagram 2.1 Emergency egress windows from roof space conversions of 2 storey

Source page 31

2.7A habitable room may be an access room to any inner room. A kitchen should not be an access room to an inner room other than –

(a)to a utility room or conservatory which has an emergency egress window complying with paragraph 2.9; or

(b)where the kitchen and the inner room are on the same storey and the kitchen is part of an alternative escape route leading to its own final exit. See Diagram 2.2.

2.8Where a habitable room, by virtue of a stairway discharging into it, is an access room to a habitable room on the storey above –

(a)the upper storey should be not more than 4.5 m above ground level; and

(b)the foot of the stairway should be not more than 3 m from –

(i)a final exit; or

(ii)a door opening directly into a hallway (including a corridor leading to the hallway).

Emergency egress windows

2.9An emergency egress window should –

(a)have a clear opening that is not less than 0.33 m2 in area; and

(b)have a clear opening that is at least 450 mm high and at least 450 mm wide.

The lower edge of the window opening should be not less than 800 mm and not more than 1100 mm above the floor except in the case of a roof window where the lower edge of the window opening may be not less than 600 mm above the floor. For the purposes of this paragraph an emergency egress window should be taken to include a door which leads to an area (e.g. a balcony) from which a person could escape or be rescued. The minimum height to the lower edge of the opening should not apply to such a door.

2.10An emergency egress window should lead to a place that is free from the danger of fire and not lead to an enclosed yard or garden unless it has an area of relative safety which is not less than the height of the dwellinghouse from the dwellinghouse. An enclosed yard or garden is one from which there is no exit under the control of the occupants of the dwellinghouse.

Sleeping galleries

2.11Where a gallery for sleeping purposes is provided –

(a)the gallery should be not more than 4.5 m above ground level;

(b)the distance between the foot of the access stair to the gallery and the door to the room containing the gallery should be not more than 3 m;

(c)the floor area of the gallery should be not more than 30 m2;

(d)an alternative escape route, or an emergency egress window which complies with paragraph 2.9 located remote from the access stair, should be provided where the distance from the head of the access stair to any point on the gallery is more than 7.5 m; and

Source page 32

(e)any cooking facilities within the room containing the gallery should either –

(i)be enclosed with fireresisting construction; or

(ii)be remote from the stair to the gallery and be positioned so that they do not prejudice the means of escape from the gallery.

Diagram 2.2 Kitchen as access room

Provisions additional to the common provisions for a dwellinghouse with one storey more than 4.5 m above ground level

2.12In a dwellinghouse with only one storey more than 4.5 m above ground level –

(a)the top storey should –

(i)be separated from the lower storeys by fireresisting construction; and

(ii)have an alternative escape route leading to its own final exit; or

(b)all storeys above the storey containing the final exit should be served by a protected stairway which either –

(i)extends to a final exit as shown in Diagram 2.3(a); or

(ii)leads to at least two escape routes at ground level, each leading to a final exit and separated from each other by fireresisting construction and selfclosing fire doors as shown in Diagram 2.3(b).

Source page 33

2.13Where the storey which is more than 4.5 m above ground level is created by the conversion of the roof space of a two storey dwellinghouse the provisions of paragraphs 2.17 to 2.22 may be applied as an alternative to the provisions of paragraph 2.12.

Provisions additional to the common provisions for a dwellinghouse with two or more storeys more than 4.5 m above ground level

2.14In a dwellinghouse with two or more storeys more than 4.5 m above ground level –

(a)all storeys above the storey containing the final exit should be served by a protected stairway which complies with paragraph 2.12(b); and

(b)each storey that is over 7.5 m above ground level should have an alternative escape route leading to its own final exit. Where access to an alternative escape route is through the protected stairway, the protected stairway should be subdivided by fireresisting construction at or about 7.5 m above ground level.

Diagram 2.3 Alternative arrangements for final exits

Source page 34

2.15In a dwellinghouse with a storey more than 4.5 m above ground level, any system of ducted air circulation should –

(a)not be fitted with transfer grilles between any room and a protected stairway;

(b)not have supply and return grilles more than 450 mm above floor level;

(c)where air is ducted to a protected stairway – have the return air ducted back to the heater;

(d)where a duct passes through the enclosure to a protected stairway – have the joints between the duct and the enclosure firestopped; and

(e)where warm air heating is ducted – have a thermal cut out with maximum setting of 27ºC, which turns off the heater and any circulation fan if the ambient temperature exceeds that setting.

Passenger lifts

2.16Where a passenger lift is provided and serves a storey more than 4.5 m above ground level it should either –

(a)be located in the enclosure of a protected stairway; or

(b)be contained in a fireresisting lift shaft.

Roof space conversions

2.17Where a roof space is to be converted to habitable accommodation, automatic fire detection and fire alarm in accordance with paragraph 2.23 and 2.24 should be provided and either –

(a)the relevant provisions of paragraphs 2.4 to 2.15 should apply; or

(b)where the existing dwellinghouse has two storeys the provisions in paragraphs 2.18 to 2.22 may be followed provided that the new storey does not –

(i)exceed 50 m2 in floor area; or

(ii)contain more than two habitable rooms.

Note – The general provisions of this Section apply to any other roof space conversion which adds a new storey to an existing dwellinghouse.

Source page 35

2.18The existing stairway should be enclosed by fireresisting walls and either –

(a)extend to a final exit as shown in Diagram 2.3(a); or

(b)lead to at least two escape routes at ground level, each delivering to a final exit and separated from each other by fireresisting construction and selfclosing fire doors as shown in Diagram 2.3(b).

2.19Any glazing (whether new or existing) in the enclosure of the existing stairway, other than to a bathroom or sanitary accommodation, should be fireresisting. (See Tables 2.8, 4.1 and 4.2.)

2.20Other than where paragraph 2.18 requires a fire door, every doorway in the enclosure to the existing stairway should be fitted with an imperforate door. A door to a habitable room or a kitchen should be fitted with a selfclosing device.

Where a new door is to be provided to an existing habitable room or kitchen it should be a fire door.

Fire separation of new storey

2.21The new storey should be separated from the rest of the dwellinghouse by fireresisting construction. The new stairway should either –

(a)rise as a continuation of the existing stairway and enclosure, in which case the stairway should be separated from the new accommodation by fireresisting construction; or

(b)be separated from the existing stairway and the rest of the dwellinghouse by fireresisting construction.

Any door in new fireresisting construction should be a selfclosing fire door.

2.22Each habitable room in the new storey should have –

(a)an emergency egress window which complies with paragraph 2.9; or

(b)an emergency egress dormer window or roof window, of the size given in paragraph 2.9 positioned as shown in Diagram 2.1,

that is located to facilitate rescue from the ground by ladder.

However, an emergency egress window may serve both habitable rooms provided that –

(i)each room has its own access to the stairway enclosure; and

(ii)it is possible to gain access, via a communicating door between the rooms, to the window without passing through the stairway enclosure.

Source page 36

2.23A dwellinghouse should be provided with either –

(a)smoke alarms complying with BS 54461 and a heat alarm or alarms complying with BS 54462 installed in accordance with paragraphs

2.25to 2.33; or

(b)an automatic fire detection and fire alarm system complying with BS 58396 of at least Grade D Category LD2 standard including a smoke alarm or alarms in the principal habitable room and a heat alarm or alarms in every kitchen.

Note – BS 54461 covers smoke alarms based on ionization chamber smoke detectors and optical smoke detectors. These different types of detector respond differently to smouldering and fastflaming fires. Either type of detector is generally suitable. However, the choice of detector type should, if possible take into account the type of fire that might be expected and the need to avoid false alarms. Optical detectors tend to be less affected by low levels of ‘invisible’ particles, such as fumes from kitchens, that often cause false alarms. Accordingly, they are generally more suitable than ionization chamber detectors for installation in circulation spaces adjacent to kitchens.

2.24Where any storey in a dwellinghouse is more than 200 m2 in area the dwellinghouse should be provided with –

(a)where the number of storeys is not more than 3 – an automatic fire detection and fire alarm system complying with BS 58396 of at least Grade B Category LD2 standard including a smoke detector or detectors in the principal habitable room and a heat detector or detectors in every kitchen; or

(b)where the number of storeys is more than 3 – an automatic fire detection and fire alarm system complying with BS 58396 of at least Grade A Category LD2 standard including a smoke detector or detectors in the principal habitable room and a heat detector or detectors in every kitchen.

Basement storeys should be counted in this provision.

Provision of smoke alarms and heat alarms

2.25At least one smoke alarm should be provided –

(a)in the circulation route or routes on each storey; and

(b)in the principal habitable room,

and at least one heat alarm should be provided in every kitchen. The smoke and heat alarms should be located to comply with the provisions of paragraphs 2.27 to 2.32.

Smoke alarms and heat alarms should be interconnected so that they all give an audible alarm when any one of them is activated.

Source page 37

The maximum number of smoke alarms and heat alarms which may be interconnected should not exceed that given in the manufacturer’s instructions.

A backup power source to each smoke alarm and heat alarm should be provided by either –

(i)a primary or secondary battery; or

(ii)a capacitor.

Installation of smoke alarms and heat alarms

2.26Smoke alarms and heat alarms should be permanently wired to either –

(a)a regularly used lighting circuit; or

(b)a circuit which –

(i)is separately fused at the distribution board;

(ii)serves only smoke alarms and heat alarms; and

(iii) where a residual current device is used – is not connected to a residual current device which is also used by any other circuit.

Smoke alarms and heat alarms may operate at a low voltage via a mains transformer. The cable for the power supply to, and interconnection of, the smoke alarms need not have special firesurvival properties.

2.27Smoke alarms should be located in the circulation route or routes of a dwellinghouse so that there is one –

(a)not more than 3 m from every bedroom door;

(b)not more than 7.5 m from every door to a living room or kitchen; and

(c)where a circulation route on a storey is more than 15 m long – not more than 15 m from another smoke alarm on the same circulation route and storey.

2.28Smoke alarms should be located in a principal habitable room so that no point in the room is more than 7.5 m from the nearest smoke alarm. Heat alarms should be located in a kitchen so that no point in the kitchen is more than 5.3 m from the nearest heat alarm.

2.29A smoke alarm or heat alarm should be located so that it is –

(a)either on a ceiling and not less than 300 mm from a wall or light fitting, or where designed for wall mounting on a wall and not less than 150 mm, or more than 300 mm from the ceiling and the sensitive element should not be below the level of a door opening;

(b)not less than 300 mm from, and not directly above, a heater or an air conditioning ventilator;

(c)on a surface which is normally at the ambient temperature for the space it bounds; and

(d)easily and safely accessible.

Source page 38

2.30Where a smoke alarm is mounted on a ceiling, it should be located so that its sensitive element is not less than 25 mm or more than 600 mm below the ceiling.

2.31Where a heat alarm is mounted on a ceiling, it should be located so that its sensitive element is not less than 25 mm or more than 150 mm below the ceiling.

A heat alarm should not be located above a cooking appliance.

Note – The guidance given in this paragraph and paragraph 2.30 applies to ceilings that are predominately flat and horizontal.

2.32A smoke alarm should not be located in a kitchen, garage or other place where steam, condensation or fumes could give false alarms.

2.33Where dwellinghouses are part of a sheltered dwelling scheme with a warden or supervisor, the fire detection and fire alarm system within each dwellinghouse should be connected to the warden’s or supervisor’s central monitoring point so as to –

(a)give an audible warning of the detection of smoke or heat in any dwellinghouse; and

(b)enable the identification of the dwellinghouse involved.

Flats

Means of escape

2.34The means of escape in a flat should be in accordance with the relevant recommendations of BS 55881.

Automatic fire detection and fire alarm systems in flats

2.35Each individual flat should be provided with either –

(a)smoke alarms complying with BS 54461 and a heat alarm or alarms complying with BS 54462 installed in accordance with paragraphs

2.25to 2.32; or

(b)an automatic fire detection and fire alarm system complying with BS 58396 of at least Grade D Category LD2 standard including a smoke alarm or alarms in the principal habitable room and a heat alarm or alarms in every kitchen.

2.36Where any storey in a flat is more than 200 m2 in area, the flat should be provided with an automatic fire detection and fire alarm system complying with BS 58396 of at least Grade B Category LD2 standard, including a smoke detector or detectors in the principal habitable room and a heat detector or detectors in every kitchen.

Source page 39

2.37In buildings other than dwellings the number of escape routes needed depends on the number of occupants (occupant capacity). In some cases a room or a storey is designed to accommodate a known number of people; in others the occupant capacity should be calculated by dividing the area of the room or storey (excluding stairways, lifts and sanitary accommodation) by the appropriate floor space factor given in Table 2.2. Where the occupant capacity is calculated for rooms the occupant capacity of a storey is the sum of the occupant capacities of the rooms on that storey. The occupant capacity of a building or part of a building is the sum of the occupant capacities of the storeys in that building or part.

2.38In buildings other than dwellings a suitable fire detection and fire alarm system to BS 58391 should be installed. The factors which have to be considered when assessing what category of fire detection and fire alarm system is to be provided will vary from one set of premises to another. Therefore the appropriate category will need to be considered on a case by case basis. Automatic detection should be provided where required by the provisions in this Section and in Sections 4 and 6.

Note – General guidance on the category of automatic fire detection that may need to be provided within a building can be found in Table A.1 of BS 58391.

2.39Where a building contains areas in different purpose groups the means of escape from any area which is of Purpose Group 1(a), 2 or 5 should be independent of the means of escape from other areas of the building.

Horizontal part of the escape route

2.40The provisions in paragraphs 2.41 to 2.59 relate to horizontal escape routes leading to storey exits. They are mainly concerned with providing more than one escape route (except in the circumstances described in paragraph 2.41), limiting the distance to be travelled, and ensuring that the routes are of adequate width.

Single escape routes

2.41Alternative escape routes should be provided from all parts of the building other than in the following circumstances where a single route is permitted –

(a)areas from which a storey exit can be reached within the maximum travel distance in one direction only given in Table 2.3, provided that no room in this situation has an occupant capacity of more than 60 people, or 30 people if the building is an Institution [Purpose Group 2(a)]; and

(b)a storey with an occupant capacity of no more than 60 people provided that a storey exit can be reached within the maximum travel distance in one direction only given in Table 2.3.

Source page 40

2.42Whether there are alternative escape routes or only a single one, the travel distance to the nearest storey exit should not exceed the maximum relevant travel distance given in Table 2.3.

Note – It is only the distance to the nearest storey exit that should be so limited. The distance from the same point in the storey to any other storey exit may be longer.

Where the initial part of an escape route is in one direction only and leads to a point from which escape is possible in two directions (e.g. as shown in Diagram 2.4), the initial part should not exceed the maximum travel distance in one direction only, and the overall travel distance should not exceed the maximum travel distance in more than one direction.

Number of escape routes and exits

2.43The number of escape routes and exits should be not less than the number given in Table 2.1 for the relevant occupant capacity of the room or storey as appropriate. The escape routes and exits should be arranged such that the travel distances given in Table 2.3 are not exceeded.

Source page 41

Source page 42

Source page 43

Diagram 2.4 Travel distance in single direction leading to alternative escape routes

Source page 44

2.44To prevent alternative escape routes being simultaneously unusable they should either –

(a)be 45º or more apart (see Diagram 2.5); or

(b)if less than 45º apart be separated from each other by fireresisting construction.

Diagram 2.5 Alternative escape routes

Source page 45

2.45An inner room is only permitted where –

(a)the number of occupants of the inner room is not more than 60 people (or in the case of a building in Purpose Group 2(a), 30 people);

(b)it is not a bedroom;

(c)the escape route from the inner room does not pass through more than one access room;

(d)the distance from any point in the inner room to the nearest exit from the access room does not exceed the appropriate maximum travel distance in one direction only given in Table 2.3;

(e)the access room is not a place of special fire hazard and is in the control of the same occupier as the inner room; and

(f)one of the following applies –

(i)that part of the enclosure separating the inner and access room is stopped at least 500 mm below the ceiling;

(ii)a vision panel of not less than 0.1 m2 is provided in the enclosure to the inner room so that a fire in the access room will be visible from the inner room at an early stage; or

(iii) the access room is fitted with a suitable automatic detection and alarm system to warn the occupants of the inner room of the outbreak of a fire in the access room.

See Diagram 2.6.

Diagram 2.6 Inner rooms and access rooms

Source page 46

2.46Where a building has an ancillary use for child care the accommodation for children should be located in the ground storey adjacent to an external wall and should have not less than two exits, one of which should be a final exit.

However, where location on the ground storey is not possible it should be located as near ground level as possible provided that –

(a)it is adjacent to an external wall and it has not less than two exits, one of which should be a storey exit;

(b)it is not located above the level at which the parents or guardians are accommodated unless their escape route is through the upper level; and

(c)it is not located on a basement storey unless it has an open side and a final exit at ground level.

Access to storey exits

2.47In any storey which has more than one escape stairway the escape routes should be arranged so that people do not have to pass through one stairway to reach another. However, it is acceptable to pass through the protected lobby of one stairway to reach another escape stairway.

Open spatial planning

2.48Escape routes should not be prejudiced by open connections between floors such as at an escalator.

An escape route should not be within 5 m of the open connection unless –

(a)the direction of travel is away from the opening; or

(b)there is an alternative escape route which does not pass within 5 m of the open connection.

See Diagram 2.7.

Planning of storey exits in a central core

2.49A building with more than one storey exit in a central core should be planned so that the storey exits are remote from each other and not linked by a lift hall, lobby, or undivided corridor.

Where the central core is separated from the accommodation by a corridor, the corridor should be subdivided by selfclosing fire doors (and any necessary associated screens) so that the storey exits are separated as in Diagram 2.8.

Source page 47

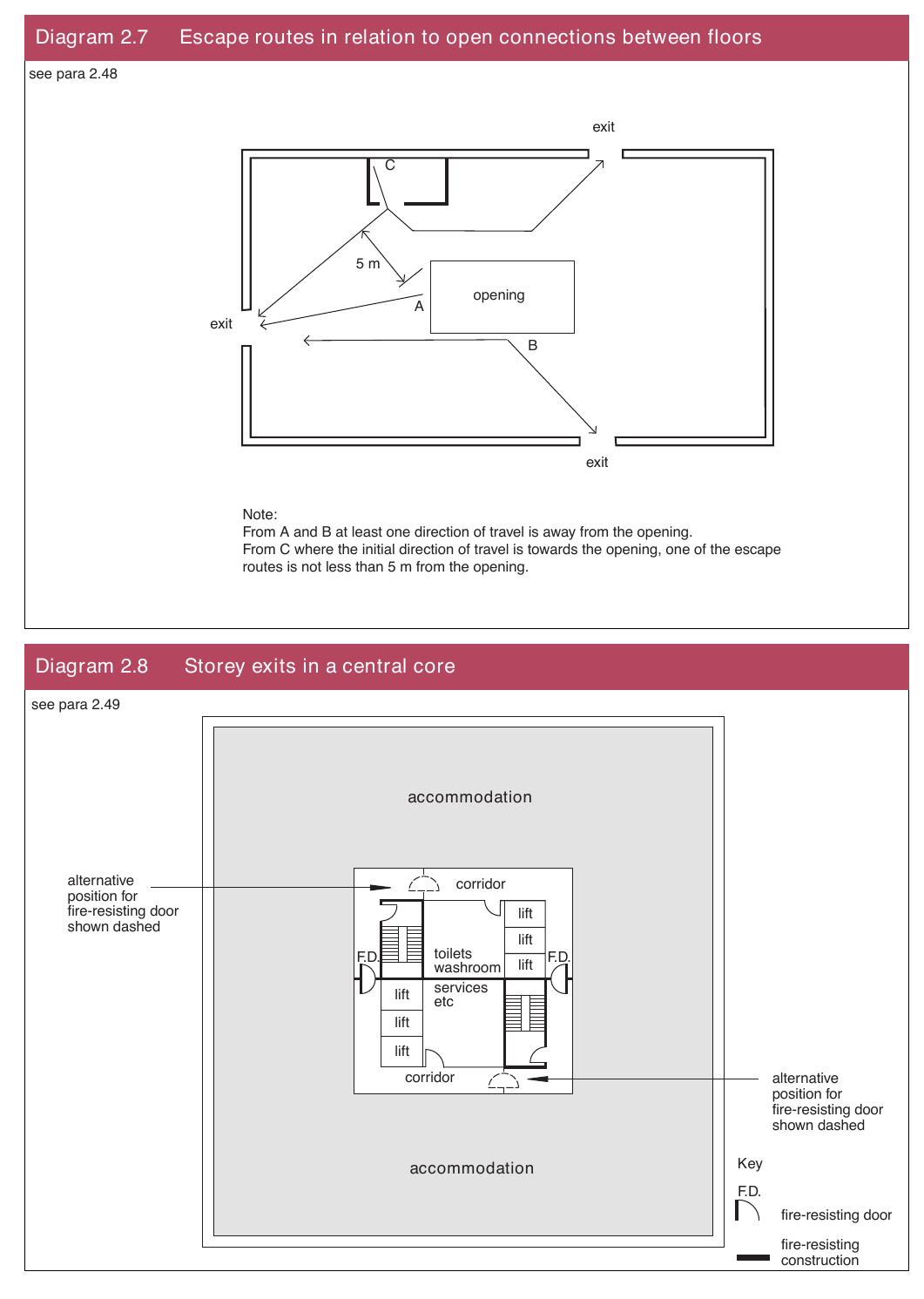

Diagram 2.7 Escape routes in relation to open connections between floors

Source page 48

2.50Where a storey has an ancillary use for the consumption of food or drink by customers, the area given over to that use should –

(a)have not less than two escape routes; and

(b)have escape routes that lead directly to a storey exit without entering a kitchen or place of special fire hazard.

Storeys divided into different occupancies

2.51Where a storey is divided into two or more occupancies (i.e. ownerships, tenancies or similar) the means of escape from one occupancy should not pass through any other occupancy.

However, where the means of escape includes a corridor common to two or more occupancies then either it should be a protected corridor, or a fire detection and fire alarm system to BS 58391, of at least Category L3 standard, should be installed.

Width of escape routes and storey exits

2.52The width of an escape route or storey exit should be not less than the minimum width given in Table 2.4, for the appropriate number of people assessed as being likely to use it. There should be no projections into escape routes other than handrails with a projection of less than 100 mm and stringers, skirtings and architraves of less than 30 mm, on either or both sides. (Note – for the purposes of Part H stair widths are measured between handrails.) The width of a storey exit should be measured in accordance with B1(g) of Appendix B.

Source page 49

Where there is a single escape route and storey exit their capacity should be not less than the number of occupants of the storey.

Where two or more escape routes and storey exits are provided it should be assumed that one of them may not be available due to fire or smoke. Therefore, each storey exit in turn should be discounted in order to ensure that the capacity of the remaining storey exits is adequate for the total number of people needing to use them. [This may have implications for the width of stairs because they should be not less than the width of any storey exit leading onto them – see paragraph 2.63(b)].

2.53The total number of persons which two or more available storey exits (after discounting) can accommodate is found by adding the maximum number of persons determined for each storey exit width. For example in Table 2.4 three available exits each 850 mm wide will accommodate 110 x 3 = 330 persons (not the 510 persons accommodated by a combined exit width of 2550 mm).

Separation of circulation routes from escape stairways

2.54A protected stairway should not form part of the primary circulation route between different parts of the building at the same level. However, it is acceptable for a protected lobby to form part of the primary circulation route.

Protected corridors

2.55A corridor that is part of the means of escape should be a protected corridor where it is –

(a)a corridor serving one or more bedrooms;

(b)a corridor from which escape is in one direction only (i.e. a dead end corridor); or

(c)common to two or more different occupancies other than where a fire detection and alarm system is installed in accordance with paragraph

2.51.

Subdivision of corridors

2.56Where a corridor exceeding 12 m in length connects two or more storey exits, it should be subdivided by selfclosing fire doors (and any necessary associated fireresisting screens) approximately midway between the storey exits so that no undivided part is common to two or more storey exits. This is to reduce the likelyhood of smoke making alternative routes impassible before all occupants have escaped. For corridors around a central core see paragraph 2.49.

Where a dead end portion of a corridor exceeding 4.5 m in length leads to a point where alternative escape routes are available, the dead end portion should be extended and separated by selfclosing fire doors (and any necessary associated fireresisting screens) from the remainder of the corridor as shown in Diagram 2.9. However, where the stairways and corridors are protected by a pressurization system complying with BS EN 121016, such separation is not necessary.

Source page 50

Diagram 2.9 Dead end corridors

Source page 51

2.57Where a corridor which is part of an escape route, but is not a protected corridor, is enclosed by partitions, those partitions provide some defence against the spread of smoke in the early stages of a fire and should be carried up to the underside of the structural floor or to a suspended ceiling. In the latter case cavity barriers should be provided in accordance with paragraph 4.35. Every opening into a room should be fitted with a door which need not be a fire door.

External escape routes

2.58Where an external escape route, other than a stair, is beside an external wall of the building, that part of the external wall within 1.8 m (measured horizontally) of the escape route should be of fireresisting construction 1.1 m above and 9 m below the level of the route as shown in Diagram 2.11 (see page 61).

Escape over flat roofs

2.59Where more than one escape route is available from a storey, (or part of a building where appropriate) one of those routes may be by way of a flat roof, provided that –

(a)the route does not serve –

(i)a building of Purpose Group 2(a); or

(ii)in a building of any other purpose group – an area intended for use by members of the public;

(b)the flat roof is part of the same building from which escape is being made;

(c)the route across the flat roof leads to a storey exit or external escape route;

(d)the part of the flat roof forming the escape route and its supporting structure, together with any opening in the roof within 3 m of the escape route, is fireresisting; and

(e)the route is defined and guarded by walls and/or protective barriers which comply with Part H.

Source page 52

2.60The provisions in paragraphs 2.61 to 2.76 relate to the vertical escape down or up escape stairways towards a final exit. They are mainly concerned with providing a sufficient number of escape stairs of adequate aggregate width and their protection.

Number of escape stairways

2.61The number of escape stairways in a building, or part of a building is determined by the provisions in –

(a)paragraph 2.39 regarding independent escape routes from areas in certain uses;

(b)paragraphs 2.41 and 2.43 regarding the design of the horizontal part of the escape route;

(c)paragraphs 2.63 and 2.64 regarding the width of stairs and the discounting of a stairway respectively; and

(d)Section 6 regarding the provision and location of firefighting stairways.

Single escape stairways

2.62Where independent escape routes are not required from areas in different purpose groups, in accordance with paragraph 2.39, a single escape stairway may serve –

(a)a basement which is permitted to have a single escape route in accordance with paragraph 2.41; or

(b)a building which has no storey with a floor level more than 11 m above ground level, and in which every storey is permitted to have a single escape route in accordance with paragraph 2.41.

Width of escape stairs

2.63An escape stair should be wide enough to accommodate the appropriate number of people assessed as being likely to use it.

This width depends on the number of stairways provided and whether the escape strategy is based on simultaneous evacuation (see paragraph 2.65) or phased evacuation (see paragraph 2.66).

In any event an escape stair should –

(a)be not less than the appropriate dimension given in Table 2.5;

(b)be not less than the width required for any storey exit giving access to it;

(c)not reduce in width at any point on its way to the final exit; and

(d)not exceed 1400 mm if the vertical extent of the escape stair is more than 30 m, unless it is at least 1800 mm and it is provided with a central handrail. In such a case the width on each side of the handrail should be considered separately for the purpose of assessing stair capacity. (Research indicates that people prefer to stay within reach of a handrail when making a prolonged descent, consequently the centre part of a wide stair is little used and could be hazardous).

Source page 53

Discounting of escape stairways

2.64Whether simultaneous or phased evacuation is used, where two or more escape stairways are provided it should be assumed that one of them may not be available due to fire or smoke. Therefore, each stairway in turn should be discounted in order to ensure that the capacity of the remaining stairways is adequate for the total number of people needing to use them.

This discounting provision need not be applied where –

(a)the escape stairways are approached on each storey (except the topmost storey), through a protected lobby; or

(b)the escape stairways are protected by pressurization systems designed in accordance with BS EN 121016,

however, discounting storey exits still needs to be considered (see parargaph 2.52).

Simultaneous evacuation

2.65In a building or part of a building designed for simultaneous evacuation the escape stairways should have the capacity to allow all floors to be evacuated simultaneously and a suitable fire detection and fire alarm system to BS 58391, should be installed.

Simultaneous evacuation should be used for –

(a)a basement;

(b)a building containing open spatial planning;

(c)a building of Purpose Group 2; and

(d)a building of Purpose Group 5.

Source page 54

Where simultaneous evacuation is to be used the capacity of an escape stairway should be either –

(i)in a building of not more than 10 storeys and for basements – that given for the appropriate width of escape stairs in Table 2.6; or

(ii)in a building of more than 10 storeys – that derived from the formula – P = 200w + 50(w – 0.3)(n – 1) for stairs not less than 1100 mm wide, where P = the number of people that can be accommodated; w = the width of the escape stair (in metres); and n = the number of storeys served by the stair.

Source page 55

A building comprises 12 storeys of offices (ground + 11). What is the minimum width needed for the stairs serving the office floors with a population of 1200 people (excluding the ground floor population which does not use the stairs), using simultaneous evacuation? Two stairs satisfy the travel distance limitations.

(a) The population is distributed evenly. As the top office storey is at a height greater than 18 m, both stairs need added protection (see paragraph 2.69). Therefore, if both stairs are entered at each level via a protected lobby, then both stairs can be assumed to be available (see paragraph 2.64). P = 1200/2 = 600, n = 11 From the formula –

600= 200w + 50(w 0.3)(11 1) 600 = 200w + (50w 15)(10) 600 = 200w + 500w 150 750 = 700w w = 1.07 m (1070 mm)

Therefore, both stairs should be at least 1070 mm wide. But this needs to be increased to 1100 mm as the formula applies to stairs 1100 mm or wider (see paragraph 2.65).

This width should also be adequate to comply with paragraph 2.63 when one storey exit is discounted in accordance with paragraph 2.52

(i.e. the stair widths are not less than the minimum widths needed for 109 people in Table 2.4).

(b) The population is not distributed evenly (e.g. 1000 people occupy floors 1 to 9, and 200 occupy floors 10 to 11).

As the top office storey is at a height greater than 18 m, both stairs need added protection (see paragraph 2.69). If both stairs are entered at each level via a protected lobby, then both stairs can be assumed to be available (see paragraph 2.64).

(i) To find the width of the stairs serving floors 10 to 11 – P = 200/2 = 100, n = 2 From the formula –

100= 200w + 50(w 0.3)(2 1) 100 = 200w + (50w 15)(1) 100 = 200w + 50w 15 115 = 250w w = 0.46 m (460 mm)

Therefore, both stairs between the 9th floor landing and the top floor should be at least 460 mm. But this needs to be increased to 1100 mm as the formula applies to stairs 1100 mm or wider (see paragraph 2.65).

Source page 56

This width should also be adequate to comply with paragraph 2.63 when one storey exit is discounted in accordance with paragraph 2.52

(i.e. the stair widths are not less than the minimum widths needed for 100 people in Table 2.4).

(ii) To find the width of the stairs serving floors 1 to 9 – P = 1200/2 = 600, n = 9 From the formula:

600= 200w + 50 (w 0.3) (9 1) 600 = 200w + (50w 15) (8) 600 = 200w + 400w 120 720 = 600w w = 1.20 m (1200 mm)

Therefore, both stairs between the 9th floor landing and the ground floor should be at least 1200 mm wide. This width should also be adequate to comply with paragraph 2.63 when one storey exit is discounted in accordance with paragraph 2.52

(i.e. the stair widths are not less than the minimum widths needed for 111 people in Table 2.4).

Phased evacuation

2.66In certain buildings it may be advantageous to design the escape stairways on the concept of phased evacuation. With phased evacuation the first people to be evacuated are those on the floor of the fire and the floor above together with those in the building who have reduced mobility.

Subsequently, if there is a need to evacuate more people, it should be done two floors at a time.

In such a building, or part of a building –

(a)every escape stairway should be approached through a protected lobby or protected corridor at each storey, other than at a top storey consisting exclusively of plant rooms;

(b)a protected lobby at each storey should be provided to the approach to every lift that is not within the enclosure of a protected stairway other than at a top storey consisting exclusively of plant rooms;

(c)every floor should be a compartment floor;

(d)an automatic sprinkler system complying with the relevant recommendations of BS 53062 or BS EN 12845, should be installed throughout the building where the building has a storey more than 30 m above ground level;

(e)an automatic fire detection and fire alarm system, to BS 58391, of at least Category L3 standard, should be installed;

(f)a voice alarm system to BS 58398 should be installed throughout the building, or part of the building; and

(g)an emergency voice communication system to BS 58399 should be installed with a master station at fire and rescue access level (see Section 6) and an outstation on every storey.

Source page 57

The minimum width of a stair for phased evacuation should be that given in Table 2.7 for the appropriate maximum number of people on the most heavily occupied storey.

Worked example

A building comprises 12 storeys of offices (ground + 11). What is the minimum width needed for the stairs serving the office floors with a population of 1200 people (excluding the ground floor population which does not use the stairs), using phased evacuation? Two stairs satisfy the travel distance limitations.

As the top office storey is at a height greater than 18 m, both stairs need added protection (see paragraph 2.69). Therefore if both stairs are entered at each level via a protected lobby, then both stairs can be assumed to be available (see paragraph 2.64).

The population is divided equally therefore –

The number of people per storey is (1200/11) = 109.

Each stair must be able to accommodate half the maximum number of people in each storey (109/2) = 55 people.

From Table 2.7 the width of 1 stair to accommodate 55 people is 1000 mm (maximum capacity 100 people).

Both stairs need to be not less than 1000 mm wide.

This width will also be adequate when one storey exit is discounted in accordance with paragraph 2.52 and the consequent need to comply with paragraph 2.63 (i.e. the stair widths are not less than the minimum widths needed for people in Table 2.4).

Source page 58

2.67An escape stairway requires protection in order that it may provide an area of relative safety during a fire evacuation. The provisions for protecting an internal escape stairway are given in paragraphs 2.69 to 2.73 and further provisions apply when an escape stairway penetrates a compartment floor (see paragraph 4.23) or is a firefighting stairway (see paragraphs 6.3 to 6.6).

An accommodation stairway may form part of an internal route to a storey exit or final exit provided that the travel distance complies with paragraph

2.42and the number of people involved is low.

2.68An unprotected stairway may be used as an escape stairway in a small building provided that –

(a)the building is of Purpose Group 3 or 4 and is not used for bar or restaurant purposes;

(b)the building is designed for single occupancy;

(c)the building comprises not more than a basement, ground and first storey;

(d)the floor area of any storey is not more than 90 m2;

(e)the stair does not connect more than two storeys; and

(f)the stair discharges not more than 3 m from a final exit.

Protected lobbies and protected corridors

2.69A protected lobby or protected corridor should be provided to every escape stairway on every storey in a building other than the top storey where –

(a)the escape stairway is the only escape stairway serving the building (or part of the building) and the building (or part of the building) has more than one storey above or more than one storey below the storey containing the final exit from the escape stairway;

(b)the escape stairway serves a storey more than 18 m above ground level;

(c)the building is designed for phased evacuation and the top storey consists exclusively of plant rooms; or

(d)the discounting stairway provisions have not been used in calculating escape stair widths as permitted by paragraph 2.64.

A protected lobby should also be provided between an escape stairway and a place of special fire hazard, and that lobby should have either not less than 0.4 m2 of permanent ventilation or be protected from the ingress of smoke by a mechanical smoke control system.

Source page 59

2.70Every protected stairway should discharge either –

(a)directly to a final exit; or

(b)to a protected exit passageway leading only to a final exit. Where the stairway is lobbied, any door openings in the walls enclosing the protected exit passageway should be similarly lobbied.

Where the escape route from an escape stairway also forms the escape route from the ground and/or basement storey its width should be increased accordingly.

Separation of adjoining protected stairways and protected exit passageways

2.71Where two or more protected stairways or protected exit passageways adjoin they should be separated by an imperforate enclosure.

Use of space within protected stairways

2.72A protected stairway, other than a firefighting stairway (see Section 6), should not contain any accommodation or services other than –

(a)sanitary accommodation or wash rooms provided that they are not used as a cloakroom;

(b)a lift, provided that in a building (or part of a building) with a single escape stairway the lift motor room is over the lift shaft or outside the protected stairway; and

(c)where it is not the only protected stairway in a building (or part of a building) –

(i)a reception desk or enquiry office area having an area of not more than 10 m2 and located at ground or access level; or

(ii)a cupboard formed by fireresisting construction.

Basement stairways

2.73Where an escape stairway forms part of the only escape route from an upper storey of a building (or part of a building) it should not serve a basement storey.

Where there is more than one escape stairway from an upper storey of a building (or part of a building) at least one should terminate at ground storey level. Other stairways may connect to a basement storey provided that they are protected at each basement level by a protected lobby or protected corridor.

Source page 60

2.74Where a protected stairway projects beyond, is recessed from, or is in an internal angle of the external walls of the building – the distance between any unprotected areas (see Section 5) in the adjacent external walls of the building and an unprotected area in the external walls of the protected stairway should not be less than 1.8 m, as shown in Diagram 2.10.

External escape stairs

2.75Where more than one escape route is available from a storey (or part of a building), one or more than one, of those routes may be by way of an external escape stair provided that –

(a)there is at least one internal escape stairway from every part of each storey; and

(b)in the case of –

(i)a building of Purpose Group 5 – the route is not intended for use by members of the public; or

(ii)a building of Purpose Group 2 – the route serves only staff accommodation (office or residential).

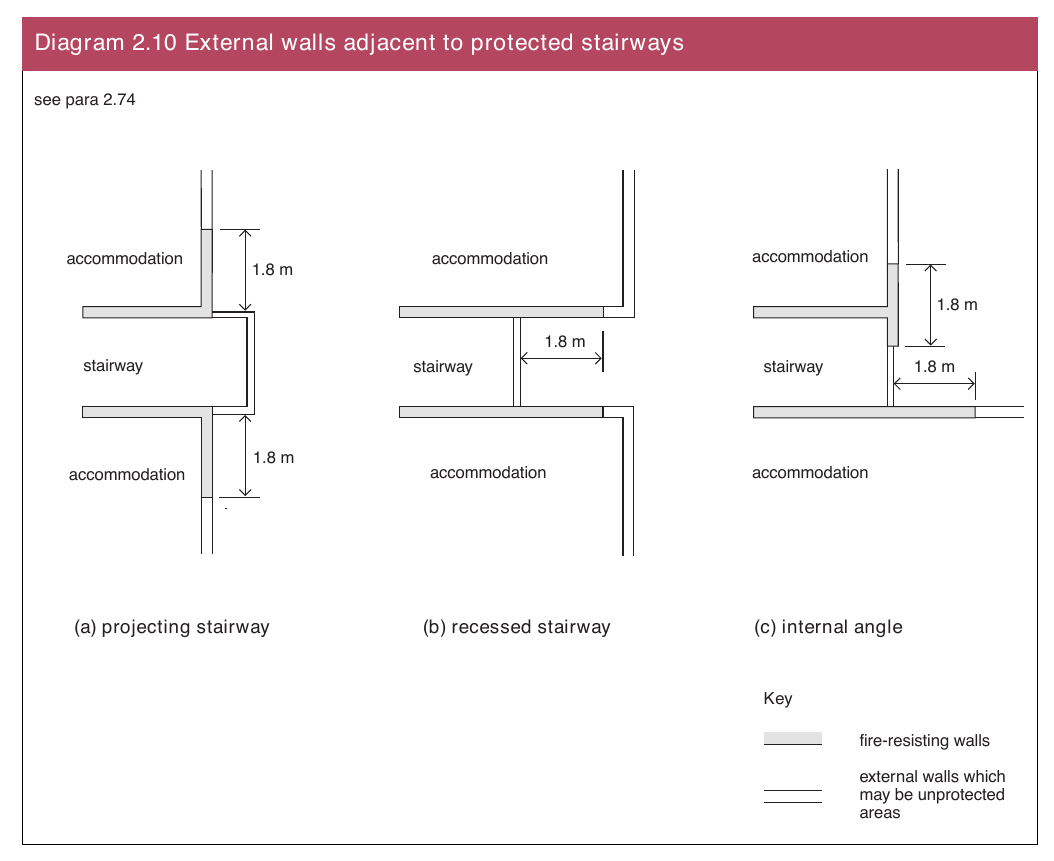

Diagram 2.10 External walls adjacent to protected stairways

Source page 61

2.76Where an external stair is part of an escape route –

(a)the stair should be protected from the weather when it serves a floor or flat roof more than 6 m above ground level. The degree of protection from the weather will depend on the exposure of the stair;

(b)all doors giving access to the stair should be fireresisting except at the top of any stair which leads downwards;

(c)any part of the external walls within 1.8 m of the stair (measured horizontally) should be of fireresisting construction –

(i)1.8 m above (this may be reduced to 1.1 m at the top landing of the stair provided that it is not the top landing of a basement stair);

(ii)1.8 m at the side of; and

(iii)9 m below, the flights and landings of the stair as shown on Diagram 2.11;

(d)the external walls of the building within 1.8 m of the escape route from the bottom of the stair should be fireresisting to a height of

1.1m above the escape route; and

(e)glazing in fireresisting external walls described in (c) and (d) above should also be fireresisting and fixed shut (see Table 2.8 for the limitations on the use of uninsulated glazing).

Source page 62

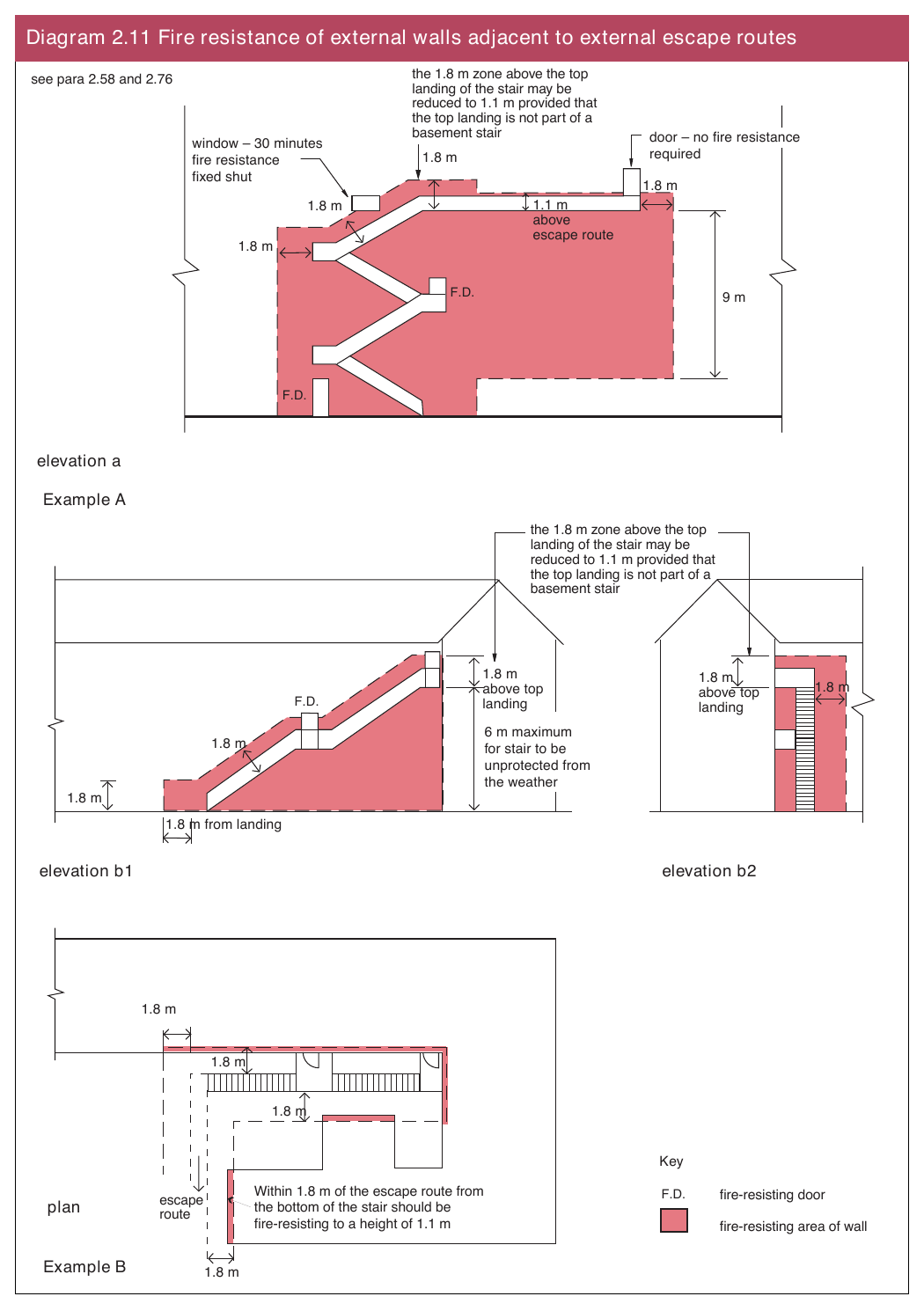

Diagram 2.11 Fire resistance of external walls adjacent to external escape routes

Source page 63

Source page 64

Provision of refuges

2.77Refuges are relatively safe areas for disabled people to wait for short periods before completing their evacuation. They are not areas where disabled people should be left to wait for rescue by the Fire and Rescue Service, or to wait until the fire is extinguished.

A refuge should be provided for each protected stairway affording egress from each storey, except storeys consisting exclusively of plant rooms. A refuge should also be provided at each final exit that leads unto an external flight of steps (in this case the refuge may be external). However, refuges are not required in a small building in single occupancy which comprises not more than a basement, a ground floor and a first storey with the floor area of each storey not more than 280 m2.

Note – Whilst a refuge should be provided for each stairway, they need not necessarily be located within the stair enclosure but should enable direct access to the stair. The number of refuge spaces need not necessarily equal the sum of the number of wheelchair users who can be present in the building. The use of refuges forms part of the management plan and it may be that more than one disabled person will use a single refuge as they pass through as part of the evacuation procedure.

Source page 65

Diagram 2.12 Refuge in a stair

Diagram 2.13 Refuge formed by compartmentation

Source page 66

2.78The following are examples of satisfactory refuges –

(a)an enclosure such as a protected stairway (see diagram 2.12) or protected lobby, protected corridor or compartment (see diagram 2.13); and

(b)an area in the open air such as a flat roof, balcony, podium or similar place which is sufficiently protected (or remote) from any fire risk and provided with its own means of escape.

Where a refuge is within a pressurised stair the smoke control system should be in accordance with BS EN 121016.

2.79Each refuge should provide an area accessible to a wheelchair of at least 900 mm x 1400 mm in which a wheelchair user can await assistance. Where a refuge is in a protected stairway or protected lobby or protected corridor the wheelchair space should not reduce the width of the escape route. Where the wheelchair space is within a protected stairway, access to the wheelchair space should not obstruct the flow of persons escaping.

2.80Refuges and evacuation lifts should be clearly identified by appropriate signs. Where a refuge is in a lobby or stairway the sign should be accompanied by a blue mandatory sign worded “Refuge keep clear”.

2.81To facilitate the effective evacuation of people temporarily waiting in each refuge an emergency voice communication system should be provided. It is essential that the occupants of each refuge are able to alert other people that they are in need of assistance and for them to be reassured that their presence in the refuge is known and that assistance will be forthcoming.

The emergency voice communication system should either

(a)comply with BS 59399 and consist of a Type B outstation at each refuge which communicates with a master station located in the building control room (where provided) or adjacent to the fire alarm panel; or

(b)in some buildings, it may be more appropriate to use an alternative approach such as the use of wireless technology. Such technology needs to be readily operated by, and comprehensible to disabled people.

Evacuation lifts

2.82In general, it is not appropriate to use a lift when there is a fire in the building. However, in some circumstances a suitably sited and protected lift containing certain safety features may be used for evacuating people. Guidance on the design, location and use of an evacuation lift is given in BS 55888. The evacuation lift installation should conform with BS EN 811 or BS EN 812 as appropriate for the particular type of lift.

2.83For general provisions relating to the fire protection of lift installations, see paragraphs 2.99 and 2.100.

Source page 67

2.84The provisions in paragraphs 2.85 to 2.103 relate to the construction and protection of escape routes, some service installations and other matters associated with the design of escape routes.

Fire resistance

2.85Details of fire resistance test criteria and standards of performance are given in Section 4.

All walls, partitions and other enclosures (including roofs that form part of an escape route) required to have fire resistance to meet the provisions of this Section should have the appropriate performance given in Tables 4.1 and

4.2.Where glazed elements in such enclosures are only able to satisfy the relevant performance in respect of integrity (i.e. uninsulated glazing), their use should be limited in accordance with Table 2.8.

All doors required to have fire resistance to meet the provisions of this Section should have the appropriate performance given in Table 4.5, should be selfclosing and the extent of any uninsulated glazing should be in accordance with Table 2.8.

Seating and gangways

2.86Permanent or retractable seating for closely seated audiences or spectators should be designed in accordance with Clauses 8.1 to 8.4 of BS 55886.

Doors on escape routes

2.87In general doors on escape routes, whether fire doors or not, should only be fitted with locks or fastenings which are readily operated from the side approached by a person making an escape. The operation of such a lock or fastening should not involve the use of a key or the manipulation of more than one mechanism.

However, a door to a room may be locked when the room is not occupied provided that –

(a)it is not an access room to an inner room; or

(b)it is not part of an escape route for people in other parts of the building.

Where a door on an escape route has to be secured against entry when the building or part of the building is occupied, it should only be fitted with a lock or fastening which is readily operated, without a key, from the side approached by people making their escape. Similarly, where a secure door is operated by a code, combination, swipe or proximity card, biometric data or similar means, it should also be capable of being overriden from the side approached by people making their escape. Electrically powered locks should return to the unlocked position –

(i)on operation of the fire alarm system;

(ii)on loss of power or system failure; and

Source page 68

(iii) on activation of a manual door release unit (Type A) to BS EN 5411 positioned at the door on the side approached by people making their escape. Where the door provides escape in either direction, a unit should be installed on both sides of the door.

2.88In the case of places of assembly, shop and commercial buildings, doors on escape routes from rooms with an occupant capacity of more than 60 should either not be fitted with lock, latch or bolt fastenings, or be fitted with panic fastenings in accordance with BS EN 1125.

Direction of opening of doors

2.89Doors on escape routes should, as far as practicable, open in the direction of escape. Doors should always open in the direction of escape in the following situations –

(a)from a place of special fire hazard;

(b)in the case of a building of Purpose Group 6 or 7 – where the number of occupants is more than 10; and

(c)in the case of a building of any other purpose group – where the number of people likely to use the door in the event of a fire is more than 60.

Doors on escape routes should open through not less than 90° and swing clear of any change in floor level, other than a threshold or single step (with a rise of not more than 170 mm) on the line of the doorway. At no point of its swing should a door reduce the effective width of any escape route across a landing.

A door that opens towards a corridor should be recessed to prevent its swing from encroaching on the effective width of the corridor.

2.90Revolving doors, automatic doors and turnstiles should not be permitted across escape routes unless –

(a)they have nonautomatic swing doors of the required width immediately adjacent;

(b)they are of the required width and easily openable in an emergency; or

(c)where the doors are automatic –

(i)they are of the required width and fail safe to the open position; or

(ii)they are of the required width and are provided with a monitored failsafe system for opening the doors if the main electricity supply fails.

Source page 69

2.91A glazed vision panel, or panels of not less than 0.1 m2, should be provided in a door that subdivides a corridor, or where a door swings both ways.

The vision panel or panels should include –

(a)a lower zone of visibility not more than 500 mm to not less than 800 mm; and

(b)an upper zone of visibility not more than 1150 mm to not less than 1500 mm,

measured from the floor and located towards the leading edge of the door. See Diagram 2.14.

Height and width of escape routes

2.92All escape routes should have a clear headroom of not less than 2 m and there should be no projections below this height, except for door frames.

The width of an escape route should be measured at 1.5 m above floor level or pitch line. The projection of handrails, if less than 100 mm, and stringers, skirtings and architraves if less than 30 mm, on either or both sides should be ignored.

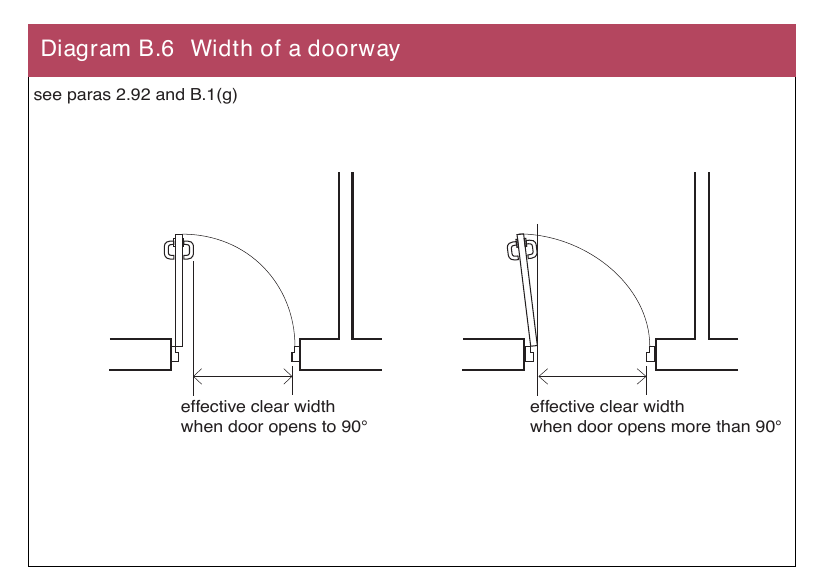

The width of an escape doorway from a room should be taken as the clear width when the door is open (see Diagram B.6).

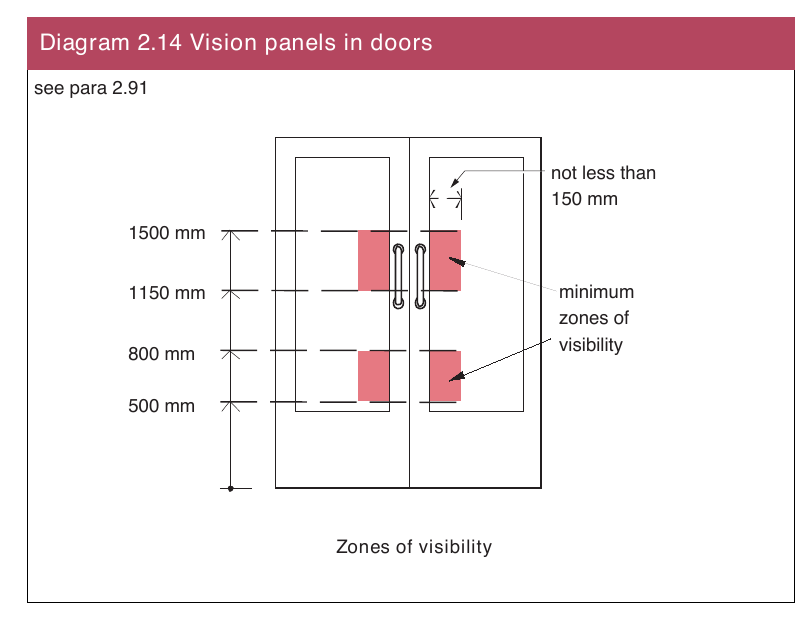

Diagram 2.14 Vision panels in doors

Source page 70

2.93Other than in a dwellinghouse every escape stair and its associated landings should be constructed of materials of limited combustibility where –

(a)it is the only stair serving the building (or part of the building), unless the building is of two or three storeys and is of Purpose Group 1(a) or Purpose Group 3;

(b)it is within a basement storey, unless it is within a flat with more than one storey;

(c)the height to any storey which it serves is more than 18 m above ground or final exit level;

(d)it is a firefighting stairway (see Section 6); or

(e)it is external, except in the case of a stair that connects the final exit level with a floor or flat roof less than 6 m above or below final exit level.

Combustible materials may be added to the upper surface of these stairs except in the case of firefighting stairways.

Helical stairs and spiral stairs

2.94Helical stairs or spiral stairs may form part of an escape route (other than for the evacuation of disabled people or for the evacuation of pupils in schools) provided that they are designed in accordance with BS 5395: Part 2. Helical stairs and spiral stairs should be of Type E (public stair) where they are intended to be used by the public.

Final exits

2.95A final exit should –

(a)have a width not less than the width of the escape route it serves, the width of a final exit doorway should be measured in accordance with B.1(g) of Appendix B;

(b)be sited to ensure rapid dispersal to a place of safety;

(c)be readily apparent to people who need to use it; and

(d)be sited clear of any fire hazards including fire or smoke issuing from a basement, and from openings to transformer rooms, solid waste stores, boiler rooms and similar hazards.

Source page 71

2.96Other than in a dwellinghouse all escape routes should have adequate artificial lighting.

The areas listed in Table 2.9 should also have escape lighting, which will illuminate the escape route if the mains supply fails. Standards for the installation of escape lighting are given in BS 52661.

Escape lighting to escape stairways should be on a separate circuit to that supplying any other part of the escape route or building.

Source page 72

2.97Where it is critical for electrical circuits to be able to continue to function during a fire, protected circuits are needed. The potential for damage to cables forming protected circuits should be limited by the use of sufficiently robust cables, careful selection of cable routes and/or by the provision of physical protection in areas where cables may be susceptable to damage. Methods of cable support should generally be noncombustible and such that circuit integrity will not be reduced below that afforded by the cable.

A protected circuit for operation of equipment in the event of a fire should consist of cables meeting at least the requirements for PH 30 classification when tested in accordance with BS EN 50200 (incorporating Appendix E), or equivalent standard. It should follow a route selected to pass only through parts of the building in which the fire risk is negligible and should be separate from any circuit provided for another purpose.

In large or complex buildings there may be fire protection systems that need to operate for an extended period during a fire. Further guidance on the selection of cables for such systems is given in BS 58391, BS 52661 and BS 73466.

Exit signs

2.98Other than in a dwellinghouse, exits on escape routes except those in normal use for egress, should be marked with signs which are readily visible so that the occupants of a building can clearly and readily see where the exits are.

The signs should comply with the relevant requirements of BS 54991 and BS 54994. (Advice on fire safety signs, including emergency escape signs, is given in HSE publication: Safety signs and signals: guidance on regulations.)

Source page 73

2.99

2.100

2.101

Fire protection of lift installations

As lifts penetrate floors and are usually sited within or adjacent to circulation routes they may prejudice the means of escape from the building. To safeguard against this a lift and its associated machine room should comply with the following provisions.

A lift should be –

(a)in a protected shaft where it penetrates a compartment floor (see paragraph 4.25);

(b)within the enclosure of a protected stairway where permitted by paragraph 2.72; or

(c)enclosed with fireresisting construction where its siting prejudices the means of escape.

A lift should not be continued down to serve a basement storey in a building (or part of a building) the upper storeys of which are served by a single escape stairway or if the lift is within the enclosure to an escape stairway which is terminated at ground level.

A lift in a basement or enclosed car park should be approached through a protected lobby or protected corridor unless it is in a protected stairway enclosure.

A lift should be approached through a protected lobby or protected corridor on a storey which contains a high fire risk area, if the lift also delivers directly into a corridor serving sleeping accommodation.

Lift machine rooms should be sited over the lift shaft where practicable. Where the lift is within a protected stairway which is the only protected stairway in a building (or part of a building) the machine room should be located outside the protected stairway, if it cannot be sited over the lift shaft.

In a building designed for phased evacuation, where the lift is not within a protected stairway, the lift entrance should be separated from the floor area on every storey by a protected lobby [see paragraph 2.66(b)].

A feature lift such as a wallclimber lift which rises within a large volume such as a mall or atrium and is not in a conventional well, may be at risk if it runs through a smoke reservoir. In which case care is needed to maintain the integrity of the smoke reservoir and to protect the occupants of the lift.

Mechanical ventilation systems

A mechanical ventilation system should be designed so that in a fire either –

(a)the air movement in the building is directed away from escape routes; or

(b)the system is closed down.

Where the system recirculates air it should comply with the provisions of BS 55889 in respect of its operation under fire conditions.

Source page 74

Where a pressurization system is installed in a protected stairway all mechanical ventilation and air conditioning systems in the building should be compatible with it when operating under fire conditions.

Waste chutes and storage

2.102A room used for the storage of waste or containing a waste chute should be –

(a)separated from other parts of the building by fireresisting construction;

(b)located outside protected stairways and protected lobbies; and

(c)accessed from the open air or from a protected lobby which has not less than 0.2 m2 of permanent ventilation.

Shop store rooms

2.103Where the siting of a fully enclosed walkin store room within a shop prejudices a means of escape it should be separated from the retail areas by fireresisting construction other than where –

(a)it is provided with an automatic fire detection and fire alarm system to BS 58391 of at least Category L5 standard with a smoke detector or detectors located in the store room; or

(b)it is fitted with an automatic sprinkler system complying with the relevant recommendations of BS 53062 or BS EN 12845.

See Table 4.1, Item 14 (c).

Source page 75

Section 3 Internal fire spread Linings

3.1This Section contains provisions to restrict the spread of flame over the internal wall and ceiling linings and, in some locations, to limit the contribution they will make to the growth of the fire. This Section should be read in conjunction with paragraphs 1.7 to 1.11.

The choice of materials for wall and ceiling linings can significantly affect the spread of a fire and its rate of growth, even though such linings are not likely to be the materials first ignited. This choice is particularly important in circulation spaces where linings may offer the main means by which fire spreads, and where rapid spread is most likely to prevent occupants from escaping.

Several properties of lining materials influence fire spread. These include the ease of ignition and the rate at which the lining material gives off heat when burning. The guidance relating to the European fire tests and classification provides for control of internal fire spread through control of these properties. This booklet does not give detailed guidance on other properties such as the generation of smoke and fumes.

3.2Provisions regarding linings within concealed spaces, above fireprotecting suspended ceilings and enclosures to sanitary pipework are contained in Section 4. Additional provisions regarding the internal surface of rooflights are contained in Section 5.

3.3This Section does not contain provisions regarding the upper surface of floors and stairs because they are not significantly involved in a fire until it is well developed. Consequently, they are not likely to contribute to the early stages of fire spread that have most impact on the safety of occupants.

Furniture and fittings can have a major effect on fire spread but it is not possible to control them under the Buildng Regulations. Consequently, they are not covered by this booklet.

Classification of performance of materials or products (National classification)

3.4The surface spread of flame classification of a lining should be ascertained by testing in accordance with BS 476: Part 7. The classifications given in such tests are Classes 1, 2, 3 and 4. Class 0 is achieved where a lining material or the surface of a composite product is either –

(a)composed throughout of materials of limited combustibility; or

(b)a Class 1 material which has when tested to BS 476: Part 6, a fire propagation index (I) of not more than 12 and a subindex (i1) of not more than 6.

A composite material of limited combustibility which does not have a surface complying with (a) or (b) should be classified by test.

Class 0 is the highest classification and Class 4 materials are not acceptable.

Source page 76

3.5

The term thermoplastic material includes all synthetic polymeric materials which have a softening point lower than 200ºC when tested to BS EN ISO 306: Method A120 Plastics. For the purposes of this Section (and Section 4) thermoplastic materials are classified as TP(a) rigid and TP(a) flexible and TP(b) as follows –

(a)To be classified as TP(a) rigid, a thermoplastic material should be –

(i)rigid solid PVC sheet;

(ii)solid polycarbonate sheet not less than 3 mm thick;

(iii)double or multiple skin rigid sheet of unplasticised PVC or polycarbonate which achieves a classification of Class 1; or

(iv)a rigid product, a specimen of which (at the thickness of the product as put on the market) when tested to BS 27820: Method 508A, extinguishes before the flame reaches the first mark and after removal of the burner, the flaming or afterglow does not exceed 5 seconds.

(b)To be classified as TP(a) flexible, a thermoplastic material should be a flexible product not greater than 1 mm thick which complies with the Type C requirements of BS 5867: Part 2 when tested to BS 5438 Test 2 (excluding the cleansing procedure) with the flame applied to the surface of the specimens for 5, 15, 20 and 30 seconds respectively.

(c)To be classified as TP(b) a thermoplastic material should be –

(i)rigid solid polycarbonate sheet less than 3 mm thick;

(ii)double or multiple skin polycarbonate sheet which does not achieve a classification of Class 1; or

(iii) a product which, when a specimen of material between 1.5 mm and 3 mm thick, tested to BS 27820: Method 508A, has a rate of burning not greater than 50 mm per minute.

Note – Currently, no new guidance is possible on the assessment or classification of thermoplastic materials under the European system since there is no generally accepted European test procedure and supporting comparative data.

3.6Where a thermoplastic material is used as a lining to protect a wall or ceiling but is not fully bonded to a nonthermoplastic substrate the surfaces of both the thermoplastic material and the substrate should meet the provisions of paragraph 3.10. However, where a thermoplastic material is fully bonded to a nonthermoplastic substrate only the surface of the composite need meet the provisions of paragraph 3.10.

Source page 77

3.7Performance in terms of reaction to fire to be met by construction products is determined by Commission Decision 200/147/EC of 8th February 2000 implementing Council Directive 89/106/EEC as regards the classification of the reaction to fire performance of construction products.

The fire classification of a lining product should be in accordance with BS EN 135011 Fire classification of construction products and building elements, Part 1: Classification using test data from reaction to fire tests. The reaction to fire tests are –

(a)BS EN ISO 1182 Reaction to fire tests for building products – Noncombustibility test;

(b)BS EN ISO 1716 Reaction to fire tests for building products – Determination of the heat of combustion;

(c)BS EN 13823 Reaction to fire tests for building products – Building products excluding floorings exposed to the thermal attack by a single burning item;

(d)BS EN ISO 119252 Reaction to fire tests – Ignitability of building products subjected to direct impingement of flame – Part 2: Singleflame source test; and

(e)BS EN 13238 Reaction to fire tests for building products – Conditioning procedures and general rules for selection of substrates.

The classifications given in BS EN ISO 135011 are A1, A2, B, C, D, E and

F. Class A1 is the highest classification and Class F is the lowest.

Classes A2, B, C and D obtain an additional classification of –

(i)s1, s2 or s3 regarding smoke production; and

(ii)d0, d1 or d2 regarding the production of flaming droplets and/or particles.

Where a classification includes ‘s3,d2’ this means that there is no limit set for smoke production and/or flaming droplets/particles.

3.8National classifications do not automatically equate with the equivalent European classifications therefore products cannot typically assume a European class unless they have been tested accordingly.

Definition of wall and ceiling

3.9For the purposes of the performance of wall and ceiling linings –

(a)a wall should include –

(i)the surface of glazing (except glazing in a door); and

(ii)any part of a ceiling which slopes at an angle of more than 70º to the horizontal;

Source page 78

(b)a wall should not include –

(i)doors and door frames;

(ii)window frames and frames in which glazing is fitted;

(iii)architraves, cover moulds, picture rails, skirtings and similar narrow members; and

(iv)fire surrounds, mantleshelves and fitted furniture;

(c)a ceiling should include –

(i)the surface of glazing; and

(ii)any part of a wall which slopes at an angle of 70º or less to the horizontal; and

(d)a ceiling should not include –

(i)trap doors and their frames;

(ii)the frames of windows or rooflights and frames in which glazing is fitted; and

(iii) architraves, cover moulds, picture rails, exposed beams and similar narrow members.

Performance of wall and ceiling linings

3.10The surface lining of a wall and of a ceiling should have a classification not lower than the relevant Class given in Table 3.1, subject to the provisions of paragraphs 3.11 to 3.16.

3.11In a room any part of the surface of a wall may be of a Class lower than that given in Table 3.1 [but not lower than Class 3 (National class) or Class Ds3,d2 (European class)] if the total area of those parts in any one room does not exceed either –

(a)half the floor area of the room; or

(b)(i) in the case of a building of Purpose Group 1 or 2 – 20 m2; or

(ii) in the case of a building of any other purpose group – 60 m2, whichever is the lesser.

3.12A suspended ceiling which is to contribute to the fire resistance of a floor/ceiling assembly having a fire resistance of more than 60 minutes should, in addition to having the classification given in Table 3.1, be constructed of materials of limited combustibility (see Table 4.3).

3.13The ceiling of a room may be constructed, either as a suspended or stretched skin membrane, from panels of a thermoplastic material of the TP(a) flexible classification provided that –

(a)each panel is supported on all its sides;

(b)each panel is not more than 5 m2 in area; and

(c)it is not a fireresisting ceiling.

Source page 79

Rooflights

3.14Other than in a protected stairway a rooflight may be of a classification lower than the relevant Class given in Table 3.1 provided that –

(a) where it is –

(i)a plastic material which has a lower surface with a classification not lower than Class 3; or

(ii)a thermoplastic material which has a lower surface with a classification not lower than Class 3 or is classified as a TP(a) rigid or TP(b) product,

the size of the rooflight does not exceed the relevant maximum area given in Table 3.2; and

(b) where there is more than one rooflight in the ceiling of a room or space –

(i)the area of rooflights does not exceed the relevant maximum total area given in Table 3.2; and

Source page 80

(ii)the disposition of the rooflights complies with the limitations given in Diagram 3.1.

The upper surface of a rooflight is subject to the provisions of Section 5.

Windows and internal glazing

3.15A window in the external wall of a circulation space and all internal glazed areas should be glazed with a material having a classification not lower than that given in Table 3.1.

A window in an external wall of a room may be glazed with a thermoplastic material classified as a TP(a) rigid product.

Lighting diffusers

3.16This paragraph applies to a lighting diffuser which forms part of a ceiling. It does not apply to the diffuser of a light fitting which is attached to the soffit of, or suspended beneath, a ceiling.

Source page 81

Lighting diffusers may be translucent or openstructured elements and may be part of a light fitting or be used below a rooflight or other source of light.

A thermoplastic lighting diffuser should not be incorporated in a fireprotecting or fireresisting ceiling unless it has been satisfactorily tested as part of a luminaire within a ceiling assembly that provides the appropriate fire resistance. A ceiling in a room or in a circulation space (other than a protected stairway) may incorporate a thermoplastic lighting diffuser provided that –

(a)the wall and ceiling surfaces exposed within the space above the ceiling (other than the upper surface of the lighting diffuser) comply with the classification given in Table 3.1 for the space below the ceiling; and

(b)the lighting diffuser is either –

(i)classified as a TP(a) rigid product; or

(ii)classified as a TP(b) product and is loosely mounted so that it will fall out of its mounting on initial heating. Where more than one such lighting diffuser is fitted, they should be limited in their extent in accordance with Table 3.2. Small lighting diffusers may be grouped together (see Note (1) to Table 3.2 and Diagram 3.1).

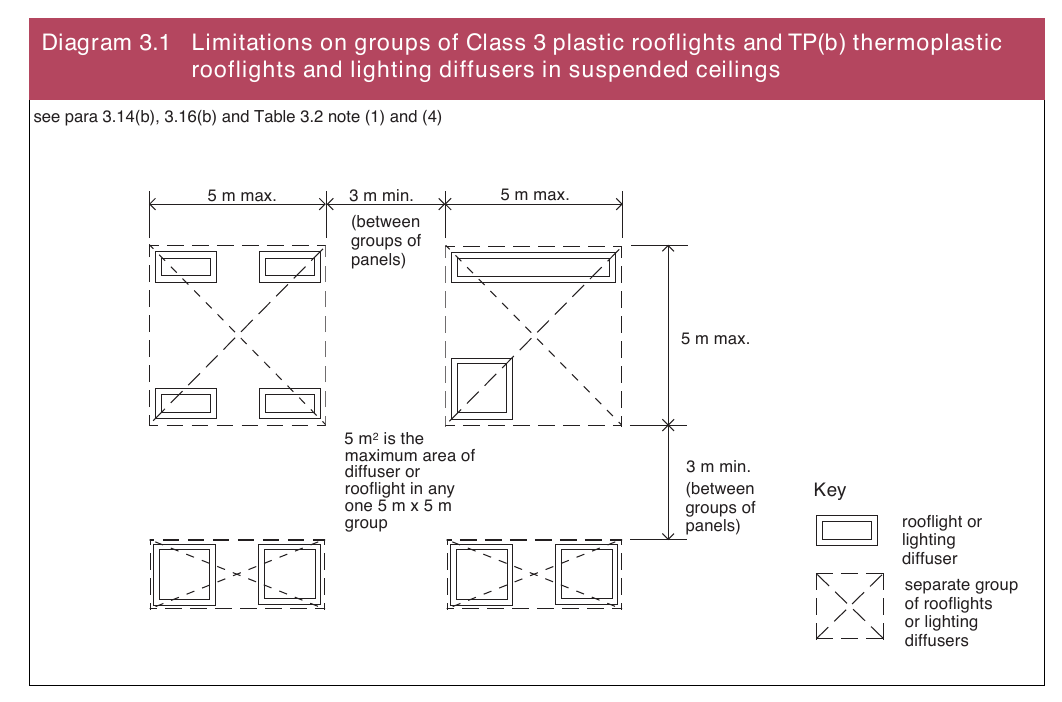

Diagram 3.1 Limitations on groups of Class 3 plastic rooflights and TP(b) thermoplastic

Source page 82

Section 4 Internal fire spread Structure

4.1The spread of fire within a building can be restricted by –

(a)ensuring the elements of structure and certain other components of the building have a minimum standard of fire resistance;

(b)subdividing the building into compartments with fireresisting construction;

(c)subdividing concealed and extensive cavities within the construction; and

(d)protecting openings in, and penetrations through, fireresisting construction.

Where a building is divided into separated parts by a compartment wall (or walls), running the full height of the building in a continuous vertical plane, the provisions of this Section may be applied separately to each separated part.

Tests for fire resistance

4.2The fire resistance of an element of structure or other component of a building is a measure of its ability to withstand the effects of fire in one or more of the following ways –

(a)resistance to collapse (loadbearing capacity) denoted ‘R’ in European classification;

(b)resistance to fire penetration (integrity) denoted ‘E’ in European classification; and

(c)resistance to transfer of excessive heat (insulation) denoted ‘I’ in European classification.

National tests

4.3Under National determination performance in respect of fire resistance should be determined in accordance with, in the case of –

(a)loadbearing elements – BS 476: Parts 20 and 21;

(b)nonloadbearing elements – BS 476: Parts 20 and 22;

(c)suspended ceilings – BS 476: Parts 20 and 23;

(d)ventilation ducts – BS 476: Parts 20 and 24; and

(e)any element of construction tested prior to 1st January 1988 – BS 476: Part 8.

Source page 83

4.4Under European determination performance in respect of fire resistance should be classified in accordance with Commission Decision 2000/367/EC of 3rd May 2000 implementing Council Directive 89/106/EEC as regards the classification of the resistance to fire performance of construction products, construction works and parts thereof. The fire resistance tests are –

(a)BS EN 13631 Fire Resistance tests – Part 1: General requirements;

(b)BS EN 13632 Fire Resistance tests – Part 2: Alternative and additional procedures;

(c)BS EN 13641 Fire Resistance tests for nonloadbearing elements – Part 1: Walls;

(d)BS EN 13642 Fire Resistance tests for nonloadbearing elements – Part 2: Ceilings;

(e)BS EN 13651 Fire Resistance tests for loadbearing elements – Part 1: Walls;

(f)BS EN 13652 Fire Resistance tests for loadbearing elements – Part 2: Floors and roofs;

(g)BS EN 13653 Fire Resistance tests for loadbearing elements – Part 3: Beams;

(h)BS EN 13654 Fire Resistance tests for loadbearing elements – Part 4: Columns;

(i)BS EN 13661 Fire Resistance tests for service installations – Part 1: Ducts;

(j)BS EN 13662 Fire Resistance tests for service installations – Part 2: Fire dampers;

(k)BS EN 16341 Fire resistance and smoke control tests for door, shutter and openable window assemblies and elements of building hardware – Part 1: Fire resistance tests for doors, shutters and openable windows;

(l)BS EN 16342 Fire resistance and smoke control tests for door, shutter and openable window assemblies and elements of building hardware – Fire resistance characterisation test for elements of building hardware;

(m)BS EN 16343 Fire Resistance tests for door and shutter assemblies – Part 3: Smoke control doors and shutters; and

(n)BS EN 8158 Safety rules for the construction and installation of lifts – Examination and tests – Part 58: Landing doors fire resistance test.

See Appendix C for full details of all publications referred to.

Specific provisions of test

4.5Provision for an element of structure or other component of the building to have a specific period of fire resistance means that it should have not less than that period, in respect of the relevant aspects of performance given in Table 4.1.

Source page 84

Source page 85

Source page 86

Source page 87

Source page 88

4.6An element of structure and those other components of the building given in Table 4.1 should have a minimum period of fire resistance of not less than that given in Tables 4.1 and 4.2 for the purpose group of the building.

Where one element of structure or other component supports, carries or gives stability to another, the fire resistance of the supporting element or component should be not less than the minimum period of fire resistance for the other element (whether that other element is loadbearing or not).

Where an element or structure or other component forms part of more than one building or compartment, the fire resistance of that element or component should be not less than the greater of the relevant provisions.

Fire protecting suspended ceilings

4.7A suspended ceiling will only be accepted as contributing to the fire resistance of a floor where that ceiling is of the appropriate type given in Table 4.3.

Fireresisting construction

4.8Where an element of structure or other component of the building is required to have fire resistance it may be constructed in accordance with an appropriate specification in Part II of the Building Research Establishment Report – Guidelines for the construction of fireresisting structural elements (BR 128: 1988).

Places of special fire hazard

4.9Every place of special fire hazard should be enclosed by fireresisting construction [see Table 4.1, item 14(b)].

Source page 89

Source page 90

Source page 91

Diagram 4.1 Doorway between dwellinghouse and garage

Source page 92

4.10Where a dwellinghouse has an attached or integral garage it should be separated from the garage by fireresisting construction with no openings other than for a fireresisting selfclosing door. In the case of a doorway between the dwellinghouse and the garage the doorway should have a threshold height of not less than 100 mm above the garage floor level to prevent the leakage of flammable liquid into the dwellinghouse (see Diagram 4.1).

Variations of the provisions regarding fire resistance

4.11A provision for an element of structure to have fire resistance should not apply to –

(a)any part of the structure which only supports a roof unless –

(i)the roof performs the function of a floor, e.g. as a means of escape, for parking of vehicles, etc.;

(ii)the structure is part of, or is essential for the stability of an external wall which, under the provisions of Section 4, cannot be an unprotected area; or

(iii)the structure is part of or supports a compartment wall or a wall between a dwellinghouse and an attached or integral garage;

(b)in the case of a single storey building or a building which consists of a ground storey and one or more basement storeys – any element of structure which forms part of the ground storey unless the element –

(i)supports a gallery; or

(ii)is located as defined in subparagraph 4.11 (a)(ii) or 4.11 (a)(iii);

(c)the lowest floor of a building; and

(d)a platform floor.

4.12Where one side of a basement storey or compartment is (due to the slope of the ground) open at and provides – means of escape and fire and rescue access at ground level and smoke venting, the period of resistance for the elements of structure and other components of the building in that basement storey or compartment should be that appropriate to a storey above the ground.

4.13Where the roof space of an existing two storey dwellinghouse is to be converted to form a new storey the provisions of this Section are for the floors, both old and new, to have full 30 minutes fire resistance. However, the existing first floor construction need not be upgraded where it separates only rooms (and not circulation spaces) provided that –

(a)only one storey is being added;

(b)the new storey contains not more than two habitable rooms;

(c)the total area of the new storey is not more than 50 m2;

(d)it has at least modified 30 minutes fire resistance; and

(e)the provisions of paragraphs 2.17 to 2.22 are met.

Source page 93

4.14Raised freestanding floors supported by racking are frequently erected for storage purposes and whether they are considered as a gallery or as a floor forming a storey the provisions for fire resistance for elements of structure apply.

In the case of automated storage systems where people do not normally frequent any of the raised storage tiers it is not necessary to provide the storage structure with fire resistance.

Where people frequent the storage tiers in the course of their normal use, the provisions for fire resistance for the raised storage floor and its supporting structure may be dispensed with where the number of persons likely to be on the raised floor at any one time is low (and does not include members of the public) and the raised floor –

(a)is within a single storey building or compartment and is structurally freestanding;

(b)consists of only one tier with the space both above and below used only for storage purposes;

(c)is not more than 20 m in both width and length and does not exceed one half of the floor area of the space in which it is situated. However, these limits should not apply where the building is fitted throughout with an automatic sprinkler system complying with the relevant recommendations of BS 53062 or BS EN 12845 in respect of occupancy rating and additional requirements for life safety;

(d)is served by a stair or stairs to comply with the relevant maximum travel distance given in Table 2.3 and at least one stair discharges within 4.5 m of an exit from the building or compartment;

(e)has a surface classification on the underside not lower than Class 3 (National class) or Class Ds3,d2 (European class) (see paragraphs

3.4and 3.7); and

(f)is designed and constructed so that any persons on the floor will be readily aware of a fire starting on the lower level. Design and construction features include the use of perforations in the floor, leaving a space between the floor and the walls of the space housing it and automatic fire detection and alarm systems. However, where either the length or width of a raised storage floor is greater than 10 m an automatic fire detection and fire alarm system to BS 58391 of at least Category L5 standard with a smoke detector or detectors located to give warning of a fire below the floor should be provided.

Source page 94

4.15The degree to which a building or separated part of a building is subdivided into compartments is related to the use of and the fire load in the building, the height to the top storey and the provision or otherwise of a sprinkler system. Compartmentation may assist in meeting the provisions of Section 2 or Section 5 of this Technical Booklet.

For compartmentation to be effective there should be continuity at the junctions of the fireresisting elements enclosing the compartment and any opening from one compartment to another should not present a weakness. The spaces which connect compartments, e.g. stairs, service shafts, etc., should be enclosed to form protected shafts and their walls and floors should be constructed as compartment walls and compartment floors.

4.16In the case of a two storey building of Purpose Group 4 or 6, where the use of the upper storey is ancillary to the main use of the ground storey, the ground storey may be treated as a single storey building for compartmentation purposes provided that –

(a)the floor area of the upper storey is not more than –

(i)one fifth of the floor area of the ground storey; or

(ii)500 m2, whichever is the lesser; and

(b)the upper storey is a separate compartment.

Provision of compartment walls and compartment floors

4.17In buildings of all purpose groups –

(a)a compartment wall should be constructed where a wall –

(i)is common to two or more buildings; or

(ii)is provided to divide a building into separated parts; and

(b)a compartment wall or a compartment floor, as appropriate should be constructed to separate parts of a building which are in different purpose groups of Appendix A.

4.18The following walls or floors should be constructed as compartment walls or compartment floors –

(a)in a building of Purpose Group 1(b) or (c) –

(i)a wall which separates semidetached dwellinghouses or dwellinghouses in a terrace (in these cases each dwellinghouse should be treated as a separate building); and

(ii)a wall or floor which separates a dwellinghouse from an attached or integral garage;

(b)in a building of Purpose Group 1(a) –

(i)every floor, other than a floor within a flat with more than one storey;

(ii)every wall which separates a flat from any other part of the building; and

(iii)every wall enclosing a communal waste container;

Source page 95

(c)in a building of Purpose Group 2 –

(i)every floor; and

(ii)in the case of a health care building – a wall needed to divide a storey into compartments for means of escape purposes;

(d)in a building of Purpose Group 4, 6 or 7 a wall or floor provided to divide the building into different occupancies (i.e. ownership, tenancies or similar); and

(e)in a building of Purpose Group 3, 4, 5, 6, or 7 –

(i)a wall which is needed to subdivide a building, or separated part of a building, so that the maximum floor area or maximum volume, as appropriate, of a compartment given in Table 4.4 is not exceeded;

(ii)every floor in a building or a separated part of a building (other than the lowest floor) where that building or separated part has a floor at a height of more than 30 m above ground level;

(iii) the floor of the ground storey where a building or separated part of a building has one or more basements (with the exception of a small building described in paragraph 2.68); and

(iv) every basement floor in a building, or a separated part of a building (other than the lowest basement floor), where that building or separated part has a floor at a depth of more than 10 m below ground level.

Construction of compartment walls and compartment floors

4.19Every compartment wall and compartment floor should –

(a)form a complete barrier to fire between the compartments they separate; and

(b)have the appropriate fire resistance required by paragraph 4.6.

A compartment wall may have timber beams, joists, purlins and rafters built into it provided that –

(i)the wall is of masonry or concrete construction;

(ii)any gaps between the wall and the timber are as small as practicable; and

(iii) any gaps are firestopped in accordance with paragraphs 4.46 and

4.47.

A compartment wall between two or more buildings should extend the full height of the buildings in a continuous vertical plane. Thus adjoining buildings should be separated only by walls and not by floors.

A compartment wall used to form a separated part of a building should extend the full height of the building in a continuous vertical plane. Thus separated parts should be separated only by walls and not by floors.

Source page 96

Source page 97

4.20Where a compartment wall or compartment floor meets a compartment wall or an external wall the junction should maintain the fire resistance for a period of not less than the period of fire resistance required by the compartment wall or compartment floor.

Junction of compartment walls and roofs

4.21If a fire penetrates a roof near a compartment wall there is a risk that it will spread over the roof to the adjoining compartment. Where a compartment wall meets a roof it should –

(a) where the roof covering has a designation of AA, AB or AC (see paragraph 5.21), on a substrate or deck of a material of limited combustibility, for a width of not less than 1.5 m on either side of the junction – be taken up to meet the underside of the roof covering or deck and the junction firestopped [see Diagram 4.2(a)]. Where double skinned insulated roof sheeting is used it should incorporate a firebreak formed by a band of material of limited combustibility not less than 300 mm wide centred over the wall.

Note – Thermoplastic rooflights which by virtue of paragraph 5.25 are regarded as having an AA (National class) designation or BROOF(t4) (European class) are not suitable for use in the zone described above.

However, where the building is of Purpose Group 1, 2(b), 3 or 5 and is not more than 15 m in height a combustible substrate of timber boarding, wood wool slabs or timber tiling battens may be carried over the compartment wall provided it is fully bedded in mortar, or no less suitable material, over the entire width of the wall [see Diagram 4.2(b)]; or

(b) be extended up through the roof to a height of not less than 375 mm above the top surface of the roof covering [see Diagram 4.2(c)].

In paragraph (a) where roof support members pass through the wall they should be fire protected for a length of not less than 1.5 m on either side of the wall in order to avoid distortion at the junction.

Openings in compartment walls which separate buildings or occupancies

4.22A compartment wall which is common to two or more buildings, or which separates different occupancies in the same building, should have no openings other than those for –

(a)means of escape in case of fire – when a fireresisting selfclosing door (see paragraphs 4.29 to 4.35) having the same period of fire resistance as that of the compartment wall should be provided; and

(b)the passage of a pipe – when the opening in the wall should comply with paragraphs 4.43 and 4.45 to 4.47.

Source page 98

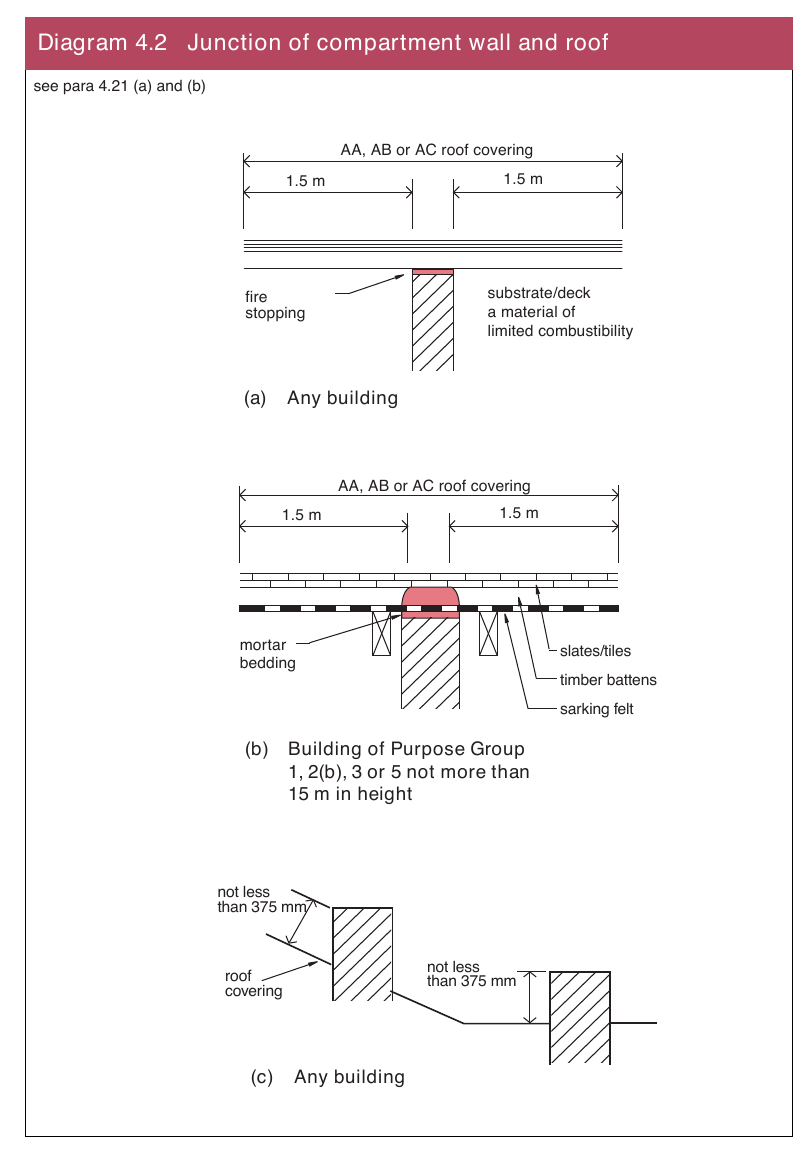

Diagram 4.2 Junction of compartment wall and roof

Source page 99

4.23A compartment wall (other than one described in paragraph 4.22) and a compartment floor should have no openings other than those –

(a)having a fireresisting selfclosing door (see paragraph 4.29 to 4.35);

(b)for the passage of pipes, ventilation ducts, chimneys, appliance ventilation duct or duct encasing one or more flue pipes – when the opening in the compartment wall or compartment floor should comply with paragraphs 4.43 to 4.47;

(c)for a waste chute system constructed of noncombustible materials;

(d)for an atrium designed in accordance with BS 55887; and

(e)for a protected shaft which complies with the provisions of paragraph

4.25to 4.28.

4.24The combined width of openings for fire doors in a compartment wall should be not more than 25% of the length of the compartment wall.

Protected shafts between compartments

4.25A protected shaft should only be used to accommodate stairs, lifts, escalators, chutes, ducts, pipes, sanitary accommodation and washrooms. Where a protected shaft contains a protected stairway, Section 2 imposes additional requirements (see paragraphs 2.69 to 2.73) and where it contains a firefighting stairway Section 6 imposes additional requirements (see paragraphs 6.3 to 6.6).

The construction enclosing a protected shaft, other than a wall which is part of an external wall, should –

(a)form a complete barrier to fire between the different compartments which the shaft connects;

(b)have the same fire resistance as the compartment through which it is passing, other than where a glazed screen complying with paragraph

4.26is provided; and

(c)satisfy the provisions regarding ventilation in paragraph 4.27 and regarding the treatment of openings in paragraph 4.28.

Glazed screens in protected shafts

4.26Glazing may be incorporated in the wall between a protected shaft containing a stairway, and a corridor or lobby which gives access to that stairway provided that –

(a)the protected shaft is not a firefighting shaft;

(b)the protected shaft is not required to have more than 60 minutes fire resistance; and

(c)the glazing has not less than 30 minutes fire resistance in respect of integrity; and either –

(i)the glazing is limited in extent in accordance with Table 2.8; or

(ii)the corridor or lobby has not less than 30 minutes fire resistance (see Diagram 4.3).

Source page 100

Diagram 4.3 Glazed screen separating protected shaft from corridor or lobby

Pipes for oil or gas and ventilation ducts in protected shafts

4.27Where a protected shaft contains –

(a)a stairway and/or a lift it should not contain –

(i)a pipe conveying oil, other than in the mechanism of a hydraulic lift; or

(ii)a ventilation duct, other than a duct provided for the purposes of pressurizing the shaft to keep it free from smoke in the event of fire or a duct provided solely for ventilating the stairway; and

(b)a pipe conveying flammable gas it should be adequately ventilated directly to external air by ventilation openings at both high and low levels in the shaft. Any pipe conveying natural gas or LPG should be of screwed steel or of all welded steel construction.

Openings in protected shafts

4.28(a) Where the wall of a protected shaft is common to two or more buildings no opening should be provided in that wall other than for –

(i)means of escape in case of fire – when a fireresisting selfclosing door, having the same period of fire resistance as the protected shaft, should be provided; and

(ii)the passage of a pipe – when the opening should comply with paragraphs 4.43 and 4.45 to 4.47.

Source page 101

(b) Other than in walls subject to subparagraph (a) and external walls, a protected shaft should only have openings for –

(i)a fireresisting selfclosing door which complies with paragraph 4.29;

(ii)the passage of a pipe where the opening complies with paragraphs 4.43 and 4.45 to 4.47;

(iii) where the shaft is or contains a ventilation duct – the inlets to, outlets from and opening for a ventilation duct which complies with paragraph 4.44;

(iv)where the shaft is pressurized for the purposes of paragraph

2.64– the inlet from and opening for the ductwork; and

(v)where the shaft contains a lift – the passage of lift cables into a lift motor room. Where the motor room is at the bottom of the shaft the opening should be as small as practicable.

Fire doors

4.29A fire door should have the performance appropriate to the location given in Table 4.5 and should be fitted with an automatic selfclosing device (other than those fire doors to cupboards and ducts, which are to be kept locked shut when not in use).

4.30(a) Under National determination fire doors are classified by their performance under test to BS 476: Part 22 in respect of integrity expressed in minutes. A suffix (S) is added for doors where smoke leakage at ambient temperatures is to be restricted.

(b)Under European determination fire doors are classified by their performance with reference to Commission Decision 2000/367/EC of 3rd May 2000 implementing Council Directive 89/106/EEC as regards the classification of the resistance to fire performance of construction products, construction works and parts thereof. All fire doors should be classified in accordance with BS EN 135012 Fire classification of construction products and building elements – Part 2: Classification using data from fire resistance tests, excluding ventilation services. Performance in respect of integrity (E) is expressed in minutes. An additional classification of ‘Sa’ is used where smoke leakage at ambient temperatures is to be restricted. The fire resistance tests are –

(i)BS EN 16341 Fire resistance and smoke control tests for door, shutter and openable window assemblies and elements of building hardware – Part 1: Fire resistance tests for doors, shutters and openable windows;

(ii)BS EN 16342 Fire resistance and smoke control tests for door, shutter and openable window assemblies and elements of building hardware – Part 2: Fire resistance characterisation test for elements of building hardware;

(iii) BS EN 16343 Fire Resistance tests for door and shutter assemblies – Part 3: Smoke control doors and shutters; and

(iv)BS EN 8158 Safety rules for the construction and installation of lifts – Examination and tests – Part 58: Landing doors fire resistance test, which may be used for lift landing doors in accordance with European Parliament Council Directive 95/16/EC of 29/06/1995 implementing the Lifts Regulations 1997.

Source page 102

Source page 103

Source page 104

(c)a door coordinator device which coordinates the closing sequence of rebated double leaf swing doors.

4.33Unless shown to be satisfactory when tested as part of a fire door assembly, the hinges on which a fire door is hung should be made from material having a melting point of at least 800ºC.

4.34Where an opening is provided for, or opens onto, a means of escape and it is intended that the door should be held open by a fusible link, a second door having 30 minutes fire resistance should be provided. This second door should be capable of closing the opening and be easily opened by hand.

Where two fire doors are fitted in the same opening and each door is capable of closing that opening, the total fire resistance may be taken as the sum of their individual fire resistance.

4.35All fire doors, other than those listed below, should be marked with an appropriate fire safety sign complying with BS 5499: Part 1 indicating whether the door is –

(a)to be kept closed when not in use;

(b)to be kept locked shut when not in use; or

(c)held open by an automatic release mechanism.

Signs should be provided on both sides of the door except for doors to cupboards and service ducts which should be marked on the outside only.

The following fire doors do not require to be marked –

(i)doors within dwellinghouses;

(ii)doors to and within flats;

(iii) bedroom doors in Purpose Group 2 buildings; and

(iv) lift doors.

Source page 105

4.36To restrict the spread of smoke and flame through concealed spaces in the construction of a building, cavity barriers should be provided –

(a) in a building of any purpose group –

(i)at the intersection of fireresisting construction and an element containing a cavity as shown in Diagram 4.4; and

(ii)as set out in Table 4.6 for the appropriate purpose group of the building and the specified locations.

[Note – alternative arrangements for items 1, 3 and 4 are shown in Diagram 4.5 and for item 2 in Diagram 4.6. Notes (3) and (4) to Table 4.6 are supported by Diagrams 4.7 and 4.8 respectively]; and

(b) in a building of Purpose Group 2, 3, 4, 5, 6 or 7 – so that the maximum dimension of a cavity, (other than one described in paragraph 4.40 or 4.41) should be not greater than that given in Table 4.7 for the appropriate location of the cavity.

4.37A cavity barrier should not be used above a compartment wall to complete the line of compartmentation, i.e. a compartment wall should be carried up to a compartment floor or to a roof.

Source page 106

Source page 107

Diagram 4.4 Cavity barriers at intersections

Source page 108

Diagram 4.5 Cavity walls excluded from certain provisions for cavity barriers

Source page 109

Diagram 4.7 Fireresisting ceiling below a cavity

Source page 110

4.38A cavity barrier should be constructed to provide fire resistance of not less than 30 minutes in respect of integrity and 15 minutes in respect of insulation (see item 15 of Table 4.1), however, a cavity barrier in a stud partition or wall may be formed of –

(a)steel at least 0.5 mm thick;

(b)timber at least 38 mm thick;

(c)polyethylene sleeved mineral wool or mineral wool slab, in either case under compression when installed in the cavity; or

(d)calcium silicate, cement based or gypsum based boards at least 12 mm thick.

A cavity barrier may be formed by any construction provided for another purpose if that construction meets the provisions for a cavity barrier.

4.39A cavity barrier should be tightly fitted and fixed in position. Where this is not possible, e.g. in the case of a junction with slates or profiled sheeting, the junction should be firestopped in accordance with paragraphs 4.45 to 4.47.

The fixing of a cavity barrier should be such that the performance of the cavity barrier is unlikely to be made ineffective by –

(a)the movement of the building due to subsidence, shrinkage or thermal change and movement of the external envelope due to wind;

(b)the collapse in a fire of any service which penetrates it;

(c)the failure in a fire of its fixings or supporting structure; and

(d)the failure in a fire of any material or construction which the cavity barrier abuts, e.g. if a cavity barrier is connected to a suspended ceiling, collapse of the ceiling should not cause premature failure of the cavity barrier.

Cavities not requiring subdivision

4.40The provisions of paragraph 4.36(b) should not apply to a cavity which is –

(a)in a masonry or concrete external cavity wall complying with Diagram 4.5;

(b)in a floor void or in a roof void where the cavity does not exceed 30 m in extent and is enclosed on its lower side by a fireresisting ceiling (complying with Diagram 4.7) which extends throughout the building or compartment;

(c)below a floor next to the ground where the cavity is not greater than 1 m in height or is not normally accessible by people. However, this should not apply where there is any opening in the floor such that it is possible for combustible material to accumulate in the cavity (in this case cavity barriers and access for cleaning should be provided);

(d)formed behind the external skin in rainscreen external wall construction, or by overcladding an existing masonry or concrete external wall or an existing concrete roof, provided that the cavity does not contain combustible insulation and the provisions of Table 4.6 Item 9 are complied with; and

Source page 111

(e)between doubleskinned, profiled, insulated, roof sheeting provided that –

(i)the sheeting is a material of limited combustibility;

(ii)both surfaces of the insulation layer have a surface spread of flame classification not lower than Class 1 (National class) or Class Cs3,d2 (European class); and

Diagram 4.9 Provision of cavity barriers in doubleskinned profiled

(iii) the insulation is in contact with the inner and outer skins of sheeting as shown in Diagram 4.9(a).

4.41Where the cavity is over an undivided room which –

(a)exceeds the appropriate maximum dimension for a cavity in Table 4.7, cavity barriers need only be provided on the line of the enclosing walls of that room, provided that they are not more than 40 m apart and that the surfaces exposed in the cavity are not lower than Class 1 (National class) or Class Cs3,d2 (European class); or

(b)exceeds 40 m (in either direction on plan), cavity barriers need not be provided where –

(i)the room and the cavity together are compartmented from the rest of the building;

(ii)an automatic fire detection and fire alarm system complying with BS 58391 is fitted in the building;

(iii) the surface of the ceiling exposed in the cavity is of Class 0 (National class) or Class Bs3,d2 or higher (European class) and the ceiling supports and fixings in the cavity are of noncombustible construction;

(iv)the surface spread of flame classification of any pipe insulation in the cavity is not lower than Class 1 (National class) or Class Cs3,d2 (European class);

(v)any electrical wiring in the cavity is laid in metal trays or in metal conduit;

Source page 112

(vi)any other material in the cavity is a material of limited combustibility; and

(vii) where the cavity is used as a plenum – the recommendations of BS 55889 in relation to recirculating air distribution systems are complied with.

Openings in cavity barriers

4.42There should be no openings in a cavity barrier other than those for –

(a)a fire door which has not less than 30 minutes fire resistance and complies with paragraphs 4.29 to 4.35;

(b)the passage of a pipe which complies with paragraph 4.43;

(c)the passage of a cable, a conduit or tray containing one or more cables;

(d)an opening fitted with a suitably mounted automatic fire damper; and

(e)a duct which (unless it is fireresisting) is fitted with a suitably mounted automatic fire damper where it passes through the cavity barrier.

Source page 113

4.43Where a pipe passes through a fire separating element it should be –

(a)provided with a suitable proprietary sealing system which has been shown by test to maintain the fire resistance of the fire separating element; or

(b)where a proprietary sealing system is not used –

(i)of a diameter not more than the relevant nominal internal diameter given in Table 4.8, with the opening as small as is practicable and firestopped around the pipe; or

(ii)of lead, aluminium, aluminium alloy, fibrecement or uPVC, having a maximum internal diameter not more than 160 mm and be within a noncombustible sleeve [see Table 4.8 Note (1)] as shown in Diagram 4.10.

Ventilation ducts penetrating fire separating elements

4.44Where a ventilation or air conditioning duct passes through a fire separating element it should comply with an appropriate method for maintaining the fire resistance of the wall, floor or barrier given in BS 55889.

Fire dampers should be tested to BS EN 13662 and be classified to BS EN 135013. They should have an E classification not less than 60 minutes. Fire and smoke dampers should also be tested to BS EN 13662 and be classified to BS EN 135013. They should have an ES classification not less than 60 minutes.

Diagram 4.10 Pipes penetrating fire separating elements

Source page 114

Firestopping

4.45In addition to any other provision in this Technical Booklet for firestopping, firestopping should be provided at –

(a)all joints and imperfections of fit between elements which serve as a barrier to the passage of fire; and

(b)all openings for pipes, ducts, cables, conduits or trays which pass through any fire separating element, and such openings should be –

(i)as few in number as possible; and

(ii)as small as is practicable.

4.46To prevent the displacement of firestopping it should be supported by, or reinforced with, a material of limited combustibility –

(a)where it is a nonrigid material (unless it has been shown by test not to require such support or reinforcement); and

(b)in all locations where its unsupported span is more than 100 mm.

4.47In addition to proprietary firestopping and sealing systems, which have been shown by test to be suitable, the following materials may be suitable as firestopping in situations appropriate to the particular material –

Source page 115

(i)cement mortar;

(ii)gypsum based plaster;

(iii) cement or gypsum based vermiculite/perlite mixes;

(iv)glass fibre, crushed rock, blast furnace slag or ceramic based products (with or without resin binders); and

(v)intumescent mastics.

Flues and heating appliance ventilation ducts penetrating compartment walls and compartment floors

4.48Where a flue, a duct containing more than one flue, or an appliance ventilation duct –

(a)passes through a compartment floor or compartment wall; or

(b)is built into a compartment wall,

the walls enclosing the flue or duct should have a period of fire resistance of not less than half that required for the compartment wall or compartment floor and be of noncombustible construction, as shown in Diagram 4.12.

Diagram 4.11 Enclosure for drainage or water supply pipes

Source page 116

Diagram 4.12 Flues in compartment walls and compartment floors

Source page 117

4.49All materials used in the construction of a building, separated part or compartment used for car parking should be noncombustible other than –

(a)a surface finish which meets the relevant provisions of Sections 3 and 5 which –

(i)is applied to a floor or roof of the car park; and

(ii)is applied within any adjoining building, separated part or compartment – to the structure enclosing the car park;

(b)a fire door;

(c)an attendant’s kiosk which does not exceed 15 m2 in area; and

(d)any shop mobility facility which does not exceed 30 m2 in floor area.

Opensided car parks

4.50A car park may be regarded as an opensided car park for the purposes of Table 4.2 [i.e. Purpose Group 7(b)(i)] where, in addition to complying with paragraph 4.49 –

(a)it has no basement storeys;

(b)it is naturally ventilated by permanent openings, at each car parking level, having an aggregate ventilation area of not less than 5% of the floor area at that level, with not less than half that ventilation area equally divided in two opposing walls and distributed to provide effective crossventilation; and

(c)where the building is also used for any other purpose – that part forming the car park is a separated part.

Car parks which are not opensided

4.51Where a car park does not comply with the provisions of paragraph 4.50 it should not be regarded as opensided for the purposes of Table 4.2 [i.e. it falls in Purpose Group 7(b)(ii)]. However, there is a need for ventilation in such a car park, therefore in addition to the provisions of paragraph 4.49 it should have either –

(a)natural ventilation at each storey –

(i)by permanent openings at each car parking level, having an aggregate ventilation area of not less than 2.5% of the floor area at that level, with not less than half that ventilation area equally divided in two opposing walls and distributed to provide effective crossventilation; or

(ii)by suitable vents at ceiling level on each car parking level having an aggregate area of permanent opening not less than 2.5% of the floor area and so arranged as to have a through flow of air; or

Source page 118

(b)a system of mechanical ventilation where –

(i)the system is independent of any other ventilation system and designed to operate at 6 air changes per hour for normal extraction and at 10 air changes per hour in a fire condition;

(ii)the system is designed to operate in two parts, each capable of extracting 50% of the rates set out in (i) above and designed so that each part may operate singly or simultaneously; each part of the system should have an independent power supply which will operate in the event of failure of the main supply;

(iii) extract points are arranged so that 50% are at high level and 50% at low level; and

(iv) the fans are rated to run at 300ºC for not less than 60 minutes, and the ductwork and fixings are constructed of materials having a melting point of not less than 800ºC.

(See Technical Booklet K for guidance on normal ventilation of car parks.)

Source page 119

4.52Whilst the provisions in this Technical Booklet about shops should generally be capable of application in cases where a shop is contained in a single separated building, the provisions may not be appropriate where a shop forms part of a complex. These may include covered malls providing access to a number of shops and common servicing areas. In particular, the provisions about maximum compartment size may be difficult to meet, bearing in mind that it would generally not be practical to compartment a shop from a mall serving it. (To a lesser extent, the provisions about fire resistance, walls separating shop units, surfaces and boundary distances may also pose problems.)

4.53To ensure a satisfactory standard of fire safety in shopping complexes, alternative measures and additional compensatory features to the provisions set out in this Section are needed. Such features are set out in Sections 5 and 6 of BS 558810 and the relevant recommendations of those sections should be followed.

Source page 120

4.54Insulating core panel systems are used for external cladding as well as for internal structures. However, whilst both types of panel system have unique fire behaviour characteristics, it is those used for internal structures that can present particular problems with regard to fire spread.

The most common use of insulating core panels, when used for internal structures, is to provide an enclosure in which a chilled or sub zero environment can be generated for the production, preservation, storage and distribution of perishable foodstuffs. However, this type of construction is also used in many other applications, particularly where the maintenance of a hygienic environment is essential.

These panels typically consist of an inner core sandwiched between, and bonded to facings of galvanised steel, often with a PVC facing for hygiene purposes. The panels are then formed into a structure by jointing systems, usually designed to provide an insulating and hygienic performance. The panel structure can be free standing, but is usually attached to the building structure by lightweight fixings or hangers in the case of ceilings.

The most common forms of insulation in present use are polyisocyanurate, mineral fibre, phenolic, polystyrene (cold stores), extruded polystyrene and composite polymers such as syntactic phenolic.

Fire behaviour of the core materials and fixing systems

4.55The degradation of polymeric materials can be expected when exposed to radiated/conducted heat from a fire, with the resulting production of large quantities of smoke. It is recognised that the potential for problems in fires involving mineral fibre cores is less than those for polymeric core materials.

In addition, irrespective of the type of core material, the panel, when exposed to the high temperatures of a developed fire, will tend to delaminate between the facing and core material, due to a combination of expansion of the metal facing and softening of the bond line.

Therefore once it is involved, either directly or indirectly in a fire, the panel will have lost most of its structural integrity. Stability will then be dependant on the method of fixing to the structure. For systems that are not fixed through both facings the stability of the system will then depend on the residual structural strength of the nonexposed facing, the interlocking joint between panels and the fixing system.

Most jointing or fixing systems for these systems have an extremely limited structural integrity performance in developed fire conditions. If the fire starts to heat up the support fixings or structure to which they are attached, then there is a real chance of total collapse of the panel system.

Where panels are used as the lining to a building the insulating nature of these panels, together with their sealed joints, means that fire can spread behind the panels, hidden from the occupants of occupied rooms/spaces. With some thermoplastic cores fire can also spread between the panel facings.

Source page 121

This can prove to be a particular problem to firefighters as, due to the insulating properties of the cores, it may not be possible to track the spread of fire, even using infra red detection equipment. This difficulty, together with that of controlling the fire spread within and behind the panels, is likely to have a detrimental effect on the performance of the fixing systems, potentially leading to their complete and unexpected collapse, together with any associated equipment.

Firefighting

4.56When compared with other types of construction techniques, these panel systems therefore provide a unique combination of problems for firefighters, including –

(a)hidden fire spread within panels with thermoplastic cores;

(b)production of large quantities of black toxic smoke and rapid fire spread leading to flashover; and

(c)hidden fire behind lining systems.

These three characteristics are common to both polyurethane and polystyrene cored panels, although the rate of fire spread in polyurethane cores is significantly less than that of polystyrene cores, especially when any external heat source is removed.

In addition, irrespective of the type of panel core, all systems are susceptible to delamination of the steel facing, collapse of the system and hidden fire spread behind the system.

Design recommendations

4.57To identify the appropriate solution, a risk assessment approach should be adopted. This would involve identifying the potential fire risk within the enclosures formed by the panel systems and then adopting one or more of the following at the design stage –

(a)removing the risk;

(b)separating the risk from the panels by an appropriate distance;

(c)providing a fire suppression system for the risk;

(d)providing a fire suppression system for the enclosure;

(e)providing fireresisting panels; and

(f)specifying appropriate materials/fixing and jointing systems.

In summary the performance of the building structure, including the insulating envelope, the superstructure, the substructure, etc., must be considered in relation to their performance in the event of a fire.

Source page 122

4.58Where at all possible the specification of panels with core materials appropriate to the application will help ensure an acceptable level of performance for panel systems, when involved in fire conditions. The following are examples in the provision of core materials which may be appropriate to the application concerned–

(a)Mineral fibre cores – cooking areas, hot areas, bakeries, fire breaks in combustible panels, fire stop panels and general fire protection.

(b)All cores – chill stores, cold stores, blast freezers, food factories and clean rooms.

Note – Core materials may be used in other circumstances where a risk assessment has been made and other appropriate fire precautions have been put in place.

Specifying materials/fixing and jointing systems

4.59The following are methods by which the stability of panel systems may be improved in the event of a fire, although they may not all be appropriate in every case.

(a)Insulating envelopes, support systems, and supporting structure should be designed to allow the envelope to remain structurally stable by alternative means such as catenary action following failure of the bond line between insulant core and facing materials. This particularly relates to ceilings and will typically require positive attachment of the lower faces of the insulant panels to supports.

(b)The building superstructure, together with any elements providing support to the insulating envelope, should be protected to prevent early collapse of the structure or the envelope.

•Note – Irrespective of the type of panel provided, it will remain necessary to ensure that the supplementary support method supporting the panels remains stable for an appropriate time period under fire conditions. It is not practical to fire protect light gauge steel members such as purlins and sheeting rails which provide stability to building superstructures and these may be compromised at an early stage of a fire. Supplementary fireprotected heavier gauge steelwork members could be provided at wider intervals than purlins to provide restraint in the event of a fire.

(c)In designated high risk areas, consideration should be given to incorporating noncombustible insulant cored panels into wall and ceiling construction at intervals, or incorporating strips of non combustible material into specified wall and ceiling panels, in order to provide a barrier to fire propagation through the insulant.

(d)Correct detailing of the insulating envelope should ensure that the combustible insulant is fully encapsulated by noncombustible facing materials which remain in place during a fire.

(e)The panels should incorporate prefinished and sealed areas for penetration of services.

Source page 123

In addition, the details of construction of the insulating envelope should, particularly in relation to combustible insulant cores, prevent the core materials from becoming exposed to the fire and contributing to the fire load.

General

4.60Generally panels or panel systems should not be used to support machinery or other permanent loads.

Any cavity created by the arrangement of panels, their supporting structure or other building elements should be provided with suitable cavity barriers.

Examples of possible solutions and general guidance on insulating core panels construction can be found in the relevant chapters of the Design, construction, specification and fire management of insulated envelopes for temperature controlled environments published by the International Association of Cold Storage Contractors (European Division).

Source page 124

Section 5 External fire spread

5.1This Section contains provisions relating to the design and construction of –

(a)external walls – in order that the risk of ignition from an external source, the spread of flame over the external surface and the spread of fire from one building to another are restricted; and

(b)roofs – in order that the risk of spread of flame and of fire penetration from an external source are restricted.

Construction of external walls

5.2The external walls of a building are elements of structure and other than those areas which may be unprotected (as determined in accordance with paragraphs 5.10 to 5.12) should have the appropriate period of fire resistance given in Section 4.

5.3The external surface of a wall should meet the requirements given in Table 5.1 relevant to the height of the building and the distance between the building and the relevant boundary. The provisions of Table 5.1 are illustrated in Diagram 5.1.

In the case of the external wall being of “rainscreen” construction (i.e. an outer cladding with a drained and ventilated cavity behind) the surface of the outer cladding which faces the cavity should also meet the relevant requirements of Table 5.1.

5.4Where a building has a storey the floor of which is 18 m or more above ground level, any materials used for supporting cladding and any insulation material incorporated within the wall construction (other than a masonry cavity wall complying with Diagram 4.5) should be a material of limited combustibility. [Advice on the incorporation of thermal insulation in such walls is given in Building Research Establishment Report – Fire performance of external thermal insulation for walls of multistorey buildings (BR 135: 1988).]

Portal frames

5.5Frequently, the provisions of Section 4 do not require the portal frames of a single storey building to have fire resistance except where the column members of those frames are within, or support, an external wall, which under paragraph 5.2, is required to have fire resistance. Where this occurs both the column and rafter members should have fire resistance, as the momentresisting connections mean the portal frame acts as a single element. However, in the case of a steel portal frame which has been designed in accordance with the method set out in Fire and steel construction: Single Storey Steel Framed Buildings in Fire Boundary Conditions, only those members within or supporting an external wall requiring fire resistance, need have fire resistance.

Source page 125

Source page 126

Diagram 5.1 Provisions for external surfaces of walls

Source page 127

5.6Protection against the external spread of fire from one building to another is related to –

(i)the distance between a building and each of its relevant boundaries (see paragraph 5.9); and

(ii)the extent of the unprotected area in the side of the building which faces that boundary.

The basic provisions are outlined in paragraph 5.13 and methods of meeting those provisions are given in paragraphs 5.14 to 5.19.

The provisions are based on a number of assumptions, and whilst some of these may differ from the circumstances of a particular case, together they enable a reasonable standard of space separation to be achieved.

The provisions limit the extent of openings and other unprotected areas in the sides of a building (including areas with a combustible surface) which would not give adequate protection against the external spread of fire from one building to another.

The assumptions for establishing space separation are –

(a)that the fire will involve a complete compartment but will not spread to other compartments;

(b)that the intensity of a fire is related to the use of the building and will be moderated by a sprinkler system where it is provided;

(c)that a building, which has an identical elevation, is located on the opposite side of, and at the same distance from, the relevant boundary; and

(d)that radiation from that part of the external wall, which has the fire resistance required by Section 4, is discounted unless its external surface is combustible as described in paragraph 5.10.

5.7Where a reduced separation distance is desired it may be advantageous to construct compartments of a smaller size.

Boundaries

5.8The use of the distance to a boundary rather than to another building, in measuring the separation distance, makes it possible to calculate the allowable proportion of unprotected areas, regardless of whether there is a building on an adjoining site, and regardless of the location of that building, and the extent of any unprotected areas that it might have.

Usually only the distance to the actual boundary of the site needs to be considered. But in some circumstances, when the site boundary adjoins a space where further development is unlikely, such as a road, then part of the adjoining space may be included as falling within the relevant boundary for the purposes of this Section.

Source page 128

5.9

For a boundary to be a relevant boundary it should coincide with, be parallel to or be at an angle of not more than 80° to the side of the building (see Diagram 5.2).

A relevant boundary may be –

(a)the actual boundary of the premises on which the building is located;

(b)the centre line of a road, river, canal or railway which adjoins the actual boundary; or

(c)a notional boundary established where two or more buildings (one of which is of Purpose Group 1, 2 or 5) are to share the same site. A notional boundary should be assumed so that both buildings comply with the space separation distances required by this Section.

Where a notional boundary is to be established and one of the buildings is an existing building, that building should be treated as if it were a new building.

Diagram 5.2 Relevant boundaries

Source page 129

5.10Any part of an external wall which has less fire resistance than that required by Section 4 should be considered to be an unprotected area.

Where an external wall has the appropriate fire resistance but has a combustible material more than 1 mm thick as its external surface, that wall should be considered to be an unprotected area amounting to half the actual area of the combustible material as shown in Diagram 5.3. However, where such a combustible material has a Class 0 (National class) or Class Bs3,d2 or higher (European class) classification it need not be considered to be such an unprotected area.

Any part of the external wall of a protected stairway should be discounted when calculating unprotected areas. (However, Section 2 and Section 6 contain provisions relating to the relationship between the external walls of protected stairways and the unprotected areas of other parts of the building.)

Small unprotected areas may be discounted where they occur in an otherwise protected area of wall, provided that they do not exceed the areas and comply with the minimum spacing shown in Diagram 5.4.

Diagram 5.3 Combustible material on external walls

Source page 130

5.11An external wall situated within 1 m of any point on its relevant boundary should have no unprotected areas other than those shown in Diagram 5.4.

5.12An external wall situated 1 m or more from any point on its relevant boundary may have unprotected areas provided that their total area does not exceed that given by the most favourable calculation method given in paragraphs 5.13 to 5.19. Where a building is uncompartmented any part of an external wall which is more than 30 m above ground level may be discounted in the calculation.

Diagram 5.4 Unprotected areas which may be discounted

Source page 131

5.13A building should be separated from its relevant boundaries by at least half the distance at which the total thermal radiation intensity received from all unprotected areas in the external walls would be 12.6 kW/m2 (in still air) assuming the radiation intensity at each unprotected area is –

(a)84 kW/m2 where the building is of Purpose Group 1, 2, 3, 5 or 7(b); or

(b)168 kW/m2 where the building is of any other purpose group.

Where a building is compartmented each compartment should be calculated separately.

Where a building or compartment is fitted throughout with a sprinkler system complying with the relevant provisions of BS 53062 or BS EN 12845 for the appropriate occupancy, the thermal radiation intensities in (a) and (b) and the distances calculated using the methods given in paragraphs 5.16 to 5.19 may be halved subject to there being a minimum distance of 1 m. Alternatively, the amount of unprotected area may be doubled if the calculated boundary distance is maintained.

5.14Building Research Establishment Report – External fire spread: building separation and boundary distances (BR 187: 1991) gives the method by which the thermal radiation intensity should be calculated for paragraph

5.13.It also gives detailed explanations, with worked examples, of Method 3 (paragraph 5.18) and Method 4 (paragraph 5.19).

5.15Where a building is compartmented and contains an atrium in accordance with paragraph 4.23(d) the recommendations of BS 55887: Clause 28.2 may be followed for calculation purposes.

Method 1 (Small residential buildings)

5.16This method may only be used for buildings in Purpose Groups 1 and 2(b) which do not exceed three storeys in height and are not more than 24 m in length. The maximum total area of unprotected areas in the side of a building should not exceed that given in Table 5.2 for the relevant minimum distance between that side and its boundary.

Source page 132

Method 2 (Small buildings and compartments)

5.17This method may be used for buildings and compartments of any purpose group which do not exceed 10 m in height [this height limit does not apply to buildings of Purpose Group 7(b)]. The maximum total percentage of unprotected area in the side of a building should not exceed that given in Table 5.3 for the appropriate purpose group and minimum distance between that side and its relevant boundary. When calculating the unprotected area, any area which complies with paragraph 5.10 and Diagram 5.4 may be discounted.

Source page 133

Method 3 (Enclosing rectangle)

5.18This method may be used for buildings and compartments of any purpose group. A building or compartment should be so situated that no point on its relevant boundary is –

(a)between the relevant plane of reference and the side of the building; and

(b)closer to the relevant plane of reference than that given in Table 5.4 for the appropriate purpose group, dimensions of enclosing rectangle and unprotected area percentage.

A plane of reference is a vertical plane which touches the side, or some part of the side, of a building or compartment but which (however, far extended) does not pass within the structure (excluding balconies, copings and similar projections) of that building or compartment. The relevant plane of reference should be chosen to give the least separation distance between it and the relevant boundary. Normally, it is best for the plane of reference to be parallel to the relevant boundary.

The enclosing rectangle is the rectangle, of the least width and height given in Table 5.4, on the relevant plane of reference, which will –

(i)enclose all the outer edges of the unprotected areas in the external wall of the building or compartment (other than any which is at an angle of 80° or more to the plane of reference). The outer edges should be projected to the plane of reference by lines perpendicular to such plane; and

(ii)have two horizontal sides.

The total unprotected area is found by adding the areas, as projected on the plane of reference, of all unprotected areas.

The unprotected percentage is calculated from – total unprotected area unprotected

= x 100 percentage enclosing rectangle area

The minimum distance from the plane of reference to the relevant boundary is given in Table 5.4, and where the unprotected percentage is between the values given in the Table the distance may be obtained by linear interpolation.

Source page 134

Source page 135

Source page 136

Source page 137

Source page 138

Source page 139

Method 4 (Aggregate notional area)

5.19This method can be used for a building or compartment of any purpose group. A building or compartment should be so situated that the aggregate notional area of the unprotected areas in the side of the building or compartment does not exceed, in the case of –

(a)a building or compartment of Purpose Group 1, 2, 3, 5 or 7(b) – 210 m2; or

(b)a building or compartment of any other purpose group – 90 m2,

when calculated from any vertical datum on its relevant boundary.

The aggregate notional area is the aggregate of the areas of unprotected area in the side of the building or compartment, each such unprotected area being multiplied by the Factor given in Table 5.5 relative to the distance the unprotected area is from the vertical datum.

A vertical datum is a vertical line of unlimited height at any point on the relevant boundary and the datum line is the line joining the vertical datum to the nearest point on the side of the building or compartment.

When calculating the aggregate notional area no account should be taken of any unprotected area which is –

(i)screened from the vertical datum by any part of an external wall which is not an unprotected area;

(ii)outside a horizontal area centred on the vertical datum, having a radius of 50 m and extending 90° on either side of the datum line;

(iii) facing away from the vertical datum; or

(iv) making an angle of less than 10° with a line drawn from it to the vertical datum.

Source page 140

5.20The high degree of ventilation and heat dissipation achieved by open sided canopies means that the space separation required by paragraph 5.13 may be onerous.

The provisions of paragraph 5.13 should not apply to –

(a)a free standing single storey, open sided canopy, constructed of non combustible materials, which is not less than 1 m from its relevant boundaries; and

(b)a covered way, covered yard or a carport, which is open on two or more sides and is not more than 40 m2 in area.

When determining the separation distance an attached single storey canopy which is not less than 2 m from its relevant boundaries and open on all sides other than the attached side may be discounted (see Diagram 5.5).

The provisions regarding roof coverings and roof separation distances should apply (see paragraph 5.21 to 5.26).

Diagram 5.5 The effect of an attached canopy

Source page 141

Roof covering designations (National tests)

5.21The designation of a roof covering in respect of external fire exposure should be determined by testing in accordance with BS 476: Part 3 and expressed by two letters in the range A to D with an AA classification being the best. The first letter indicates the time to penetration and the second letter indicates a measure of the spread of flame.The notional designations of some generic roof coverings are given in Table 5.6.

Note – The National classifications do not automatically equate with the equivalent European classifications, therefore products cannot typically assume a European class unless they have been tested accordingly.

Roof covering designations (European tests)

5.22Performance in terms of the resistance of roofs to external fire exposure is determined by reference to Commission Decision 2005/823/EC amending Decision 2001/671/EC establishing a classification system for the external fire performance of roofs and roof coverings.

Constructions are classified within the European system as BROOF(t4), CROOF(t4), DROOF(t4), EROOF(t4) or FROOF(t4) in accordance with BS EN 135015: Fire classification of construction products and building elements: Classification using data from external fire exposure to roof tests. With BROOF(t4) being the highest performance and FROOF(t4) being the lowest.

BS EN 135015 refers to four separate tests. The suffix (t4) used above indicates that test4 is to be used for the purposes of this Technical Booklet.

5.23Where a thermoplastic material cannot be given a designation when tested to BS 476: Part 3 it may be used as a rooflight provided that it can be classified under paragraph 3.5 and is used in accordance with paragraph

5.25.Where unwired glass, not less than 4 mm thick, is used in a rooflight it should be regarded as having an AA (National class) or BROOF(t4) (European class) designation.

Source page 142

Source page 143

Table 5.6 Notional designations of roof coverings (contd)

Part III – Pitched or flat roofs covered with fully supported material

Details of covering

Designation

Covering material Supporting structure

1Aluminium sheet Timber joists and – AA*(National class) or BROOF(t4) (European class) 2 Copper sheet (i) tongued and grooved boarding; or

3Zinc sheet (ii) plain edged boarding

4Lead sheet

5Mastic asphalt

Steel or timber joists with AA (National class) or

6Vitreous enamelled deck of– BROOF(t4) (European class) steel sheet

(i) wood wool slab;

7Lead/tin alloy

(ii) compressed straw slab;

coated steel sheet

(iii) wood chipboard;

(iv) fibre insulating board; or

8Zinc/aluminium

(v) 9.5 mm plywood alloy coated steel sheet

Concrete or clay pot slab (cast AA (National class) or

9Prepainted (coil in situ or precast), or non BROOF(t4) (European class) coated) steel sheet combustible deck of steel, including liquid aluminium or fibre reinforced cement applied PVC coatings

(with or without insulation)

Note:

* Lead sheet supported by timber joists and plain edge boarding should be deemed to be of designation BA (National class) or CROOF(t4) (European class).

Part IV – Flat roofs covered with bitumen felt

A flat roof comprising a covering of bitumen felt should (irrespective of the felt specification) be deemed to be of designation AA (National class) or BROOF(t4) (European class) if the felt is laid on a deck constructed of 6 mm plywood, 12.5 mm wood chipboard, 16 mm (finished) plain edged timber boarding, compressed straw slab, screeded wood wool slab, profiled fibre reinforced cement of steel deck (single or double skin) with or without fibre insulating board overlay, or concrete or clay pot slab (insitu or pre cast) and has a surface finish of –

(a)bitumen bedded stone chippings covering the whole surface to a depth of not less than 12.5 mm;

(b)bitumen bedded tiles of a noncombustible material;

(c)sand and cement screed; or

(d)macadam.

Source page 144

5.24The minimum distance from any part of a roof, other than a plastic rooflight, to a relevant boundary (see paragraph 5.9) should be not less than that given in Table 5.7 for the relevant designation of roof covering. There are no restrictions on the use of roof coverings designated AA, AB or AC (National class) or BROOF(t4) (European class). In addition, roof covering products (and/or materials) as defined in Commission Decision 2000/553/EC implementing Council Directive 89/106/EEC as regards the external fire performance of roof coverings can be considered to fulfil all of the requirements for performance characteristic “external fire performance” without the need for testing provided that any national provisions on the design and execution of works are fulfilled. That is, the roof covering products (and/or materials) defined in this Commission Decision can be used without restriction.

The boundary formed by the compartment wall separating semidetached dwellinghouses should be disregarded for the purposes of this paragraph.

Source page 145

5.25Where a roof incorporates a plastic rooflight, which is not designated AA,

AB, AC, BA, BB or BC (National class), or BROOF(t4) or CROOF(t4) (European class), the minimum distance from that rooflight to a relevant boundary should be not less than that given in Tables 5.8 and 5.9 for the appropriate classification of the rooflight and the space over which it is located.

For the purposes of this paragraph and Tables 5.8 and 5.9 a rigid thermoplastic rooflight, made from polycarbonate or unplasticised PVC, which achieves a Class 1 classification for surface spread of flame (see paragraph 3.4) may be regarded as having an AA (National class) or BROOF(t4) (European class) designation (other than for the purposes of paragraph 4.21(a) and Diagram 4.2).

5.26Thatch or wood shingles should be regarded as having an AD, BD or CD (National class) or EROOF(t4) (European class) designation in Table 5.7 where performance under BS 476: Part 3 or ENV 1187, test4 cannot be established.

Source page 146

Source page 147

Diagram 5.6 Limitation on areas and spacing of certain

Source page 148

Section 6 Facilities and access for the Fire and Rescue Service

6.1This Section contains provisions to ensure that there is –

(a)sufficient means of access to and within a building for firefighting personnel to effect rescue and fight fire;

(b)sufficient facilities to assist firefighters in their tasks;

(c)adequate means of venting smoke from a fire in a basement; and

(d)adequate external access to enable firefighting appliances to be brought near to a building for effective use.

Firefighting shafts

6.2In low rise buildings without deep basements fire and rescue personnel access requirements will be met by a combination of the normal means of escape in the building and the measures for vehicle access in accordance with paragraphs 6.19 and 6.20. In other buildings including high rise buildings and those with deep basements the problems of reaching the fire and working inside the building near the fire, necessitate the provision of additional facilities to avoid delay and to provide a sufficiently secure operating base to allow effective action to be taken. These additional facilities include firefighting lifts, firefighting stairs and firefighting lobbies which are combined in a protected shaft known as a firefighting shaft.

6.3A shopping complex should be provided with firefighting shafts in accordance with the recommendations of BS 558810 Section 3. Any other building should be provided with a firefighting shaft or shafts, to serve all storeys, where –

(a)it has a storey more than 18 m above fire and rescue access level;

(b)it is a building of Purpose Group 4, 6 or 7(a) and has a storey 900 m2 or more in area at a height of 7.5 m or more above fire and rescue access level;

(c)it has a storey more than 10 m below fire and rescue access level; or

(d)it has two or more basement storeys any of which is 900 m2 or more in area.

However, a firefighting shaft provided under (a) or (b) need not serve a basement storey unless (c) or (d) applies and similarly a firefighting shaft provided under (c) or (d) need not serve an upper storey unless (a) or (b) applies.

Diagram 6.1 illustrates the provisions of this paragraph.

Source page 149

Diagram 6.1 Provision of firefighting shafts

Source page 150

6.4Where a building is to be provided with firefighting shafts the minimum number (subject to paragraph 6.5) should be –

(a)where a building is fitted throughout with an automatic sprinkler system complying with the relevant recommendations of BS 53062 or BS EN 12845 as given in Table 6.1 for the appropriate floor area; or

(b)where a building is not fitted throughout with such a sprinkler system – at least one for every 900 m2, (or part thereof) of floor area of the largest storey given in paragraph 6.3(a) to (d) as appropriate.

6.5Firefighting shafts should be located so that every part of every storey (other than fire and rescue access level) is not more than 60 m from a fire main outlet, measured on a route suitable for laying a fire hose (hose route). Where the internal layout is unknown every part of every such storey should be not more than 40 m, in a direct line, from a fire main outlet.

6.6Firefighting shafts should be designed and constructed in accordance with the relevant recommendations of BS 55885.

Where a building falls within paragraph 6.3(a) or (c) all firefighting shafts should have a firefighting lift complying with the relevant recommendations of BS 55885. A firefighting lift installation includes the lift car itself, the lift well and the lift machinery space, together with the lift communication system. The firefighting lift installation should conform with BS EN 811 or BS EN 812 as appropriate for the particular type of lift and BS EN 8172.

However, in a Purpose Group 1(a) (flat) building it is not necessary for a firefighting shaft to have firefighting lobbies provided that –

(a)the firefighting stair opens directly into a protected lobby or protected corridor provided for means of escape; and

(b)where the firefighting shaft has a firefighting lift – the lift opens directly into a protected lobby or protected corridor provided for means of escape and the lift landing doors are not more than 7.5 m from the door to the firefighting stair.

Source page 151

6.7Fire mains are installed in a building and equipped with valves, etc., so that the Fire and Rescue Service may connect hoses for water to fight fires inside the building. Rising fire mains serve floors above ground, or upwards from the level at which the Fire and Rescue Service gain access (called the fire and rescue access level) if this is not ground level. Falling mains serve levels below fire and rescue access level.

Fire mains may be of the dry type which are normally empty and are supplied through hose from a fire and rescue pumping appliance. Alternatively, they may be of the wet type where they are kept full of water and supplied from tanks and pumps in the building. There should be a facility to allow a wet system to be replenished from a pumping appliance in an emergency.

6.8A firefighting shaft should be provided with –

(a)a wet fire main where it has a storey more than 60 m above fire and rescue access level; or

(b)a wet or a dry fire main in any other case.

6.9The fire main should be located in the firefighting lobbies of the firefighting shaft and should have an outlet connection and valve at every level other than at fire and rescue access level. However, where firefighting lobbies are not provided in a Purpose Group 1(a) building the fire main should be located in the firefighting stairway.

6.10The design and construction of a fire main should be in accordance with the relevant recommendations of BS 9990.

Provisions for vehicle access are given in paragraph 6.19.

Venting of heat and smoke from basements

6.11The buildup of smoke and heat as a result of a fire can seriously inhibit the ability of the Fire and Rescue Service to carry out rescue and firefighting operatons in a basement. The problem can be reduced by providing venting facilities to make conditions tenable by providing a route for smoke and heat to escape to the open air from the basement level. These facilities can also be used by the Fire and Rescue Service to let cooler air into the basement.

6.12Venting facilities, connected directly to the external air, should be provided from every basement storey other than –

(a)a basement in a building of Purpose Group 1(b) or (c);

(b)a basement storey which –

(i)has a floor area not more than 200 m2; or

(ii)has a floor not more than 3 m below the lowest adjacent ground level;

(c)a basement storey used for car parking and ventilated in accordance with paragraph 4.50; and

(d)a basement storey or that part of a basement storey used as a strong room.

Source page 152

6.13Where basements have external doors or windows, the compartments containing the rooms with these doors or windows do not need smoke outlets. It is common for basements to be open to the air on one or more elevations. This may be the result of different ground levels on different sides of the building.

Natural venting

6.14A basement storey may be ventilated by smoke outlets which should –

(a)be sited at ceiling level within the space they serve;

(b)have an aggregate free area of not less than 2.5% of the floor area of the space they serve;

(c)be distributed as evenly as possible around the perimeter of the building;

(d)be located so that they do not adversely affect any escape route from the building; and

(e)have a sign stating “smoke outlet from basement” fixed adjacent to each external outlet point.

The smoke outlets from a place of special fire hazard should be separate from the smoke outlets from other areas.

6.15Smoke outlets may discharge by means of windows, stallboard risers or pavement lights which can be opened or knocked out provided such covers are readily accessible to the Fire and Rescue Service.

Shafts enclosing smoke outlets should be of smoke tight noncombustible construction and have the same period of fire resistance as that for elements of structure in the basement storey served.

Shafts from different parts of the same basement storey, or from different basement storeys, should be separated by smoke tight noncombustible fireresisting construction.

Mechanical venting

6.16A basement may be ventilated by a mechanical air extraction system provided –

(a)the basement has a sprinkler system complying with the relevant recommendations of BS 53062 or BS EN 12845; and

(b)the air extraction system has a capacity of not less than 10 air changes per hour and is capable of operating at a temperature of 300°C for not less than 60 minutes.

The air extraction system should come into operation automatically on the activation of either –

(i)the sprinkler system; or

(ii)the fire detection and fire alarm system in the basement where this system complies with BS 58391, of at least Category L3 standard.

Source page 153

6.17A rolling shutter in a compartment wall should be provided with a suitable operating mechanism so that it can be opened and closed manually by the Fire and Rescue Service.

Vehicle access

6.18For the purposes of this Section vehicle access to the exterior of a building is needed to enable high reach appliances, such as turntable ladders and hydraulic platforms to be used, and to enable pumping appliances to supply water and equipment for firefighting and rescue purposes.

6.19The provisions for vehicle access are related to whether or not the building has a fire main or mains and, where it does not, to the size and height of the building. Where a building –

(a)does not have a fire main and is a block of flats, access for a pump appliance should be provided to within 45 m (hose route) of each door giving access to each individual dwelling;

(b)does not have a fire main, is not a block of flats and is less than 2000 m2 in area and the height to the top storey is less than 11 m, access for a pump appliance should be –

(i)provided to within 45 m (hose route) of the building other than for a dwellinghouse where the 45 m should be to a door giving access to the interior; or

(ii)provided to 15% of the perimeter;

(c)does not have a fire main and is other than as described in (a) and (b), access should be provided in accordance with Table 6.2;

(d)has dry fire mains, access for a pumping appliance should be provided to within 18 m, and within sight of, each fire main inlet connection point; and

(e)has wet fire mains, access for a pumping appliance should be provided to within 18 m, and within sight of the emergency replenishment inlet of the tank serving each fire main.

In every elevation to which fire and rescue access is provided, there should be a door not less than 750 mm wide, giving access to the interior of the building. Where fire mains are provided a door should give access to each fire main.

[Note – the Building Regulations cannot impose requirements for work to be done beyond the boundary of the premises.]

Vehicle access routes and vehicular hardstandings areas

6.20A vehicle access route and vehicular hardstanding area should be designed and constructed to the standards given in Table 6.3 and, in the case of those for high reach appliances, the dimensions shown in Diagram 6.2.

Where the height of the top storey of a building is more than 11 m above the level of the adjoining ground the vehicle access route and the vehicular hardstanding area should be suitable for a high reach appliance. For lower buildings a vehicle access route should be suitable for a pump appliance.

Source page 154

6.21A turning facility should be provided in a dead end vehicle access route which is more than 20 m in length. This should be a hammerhead or turning circle –

(a)designed on the basis of the dimensions given in Table 6.3; and

(b)located so that vehicles do not have to reverse more than 20 m.

Vehicular hardstanding areas should be as level as possible and should not exceed a gradient of 1 in 12.
